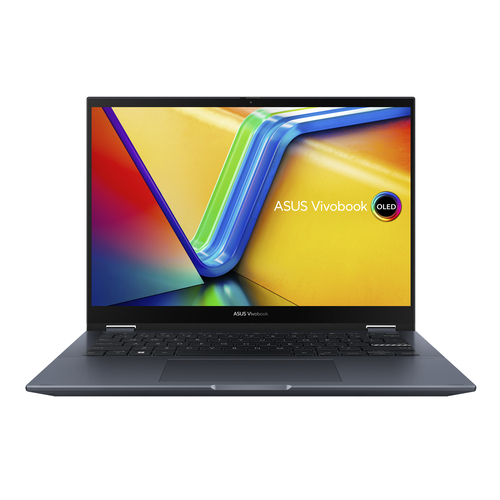

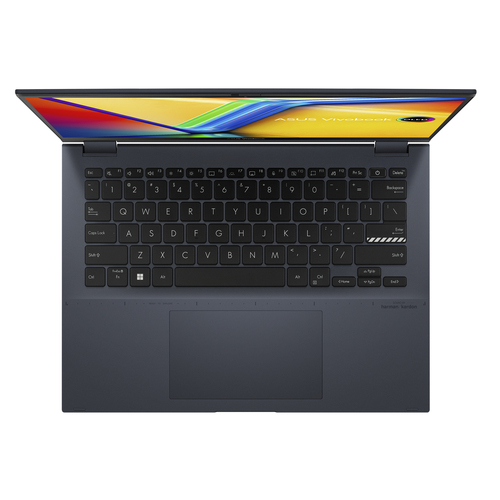

ASUS Vivobook S14 Flip OLED TP3402VA-KN115W Intel® Core™ i9 i9-13900H Hybrid (2-in-1)

Vivobook S14 Flip OLED TP3402VA-KN115W Intel® Core™ i9 i9-13900H Hybrid (2-in-1)

35.6 cm (14") Touchscreen 2.8K 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11a

Model TP3402VA-KN115WPart no. 90NB10W1-M003P0EAN 4711387110409

127 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i9
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i9
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TP3402VA-KN115W
Part number: 90NB10W1-M003P0
EAN / UPC: 4711387110409
Also known as: ASUS Vivobook S14 Flip OLED TP3402VA-KN115W Intel® Core™ i9 i9-13900H Hybrid (2-in-1) 35.6 cm (14") Touchscreen 2.8K 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11a

Specifications

127 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Blue
Colour name	Quiet Blue
Form factor	Convertible (Folder)
Market positioning	Home

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	2.8K
Panel type	OLED
Display number of colours	1.07 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	90 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13900H
Processor cores	14
Processor threads	20
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.1 GHz
Efficient-core boost frequency	4.1 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.8

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	313.2 mm
Depth	227.6 mm
Height	18.9 mm

Packaging data

Specification	Value
Package width	460 mm
Package depth	65 mm
Package height	290 mm
Package weight	1.75 kg

Packaging content

Specification	Value
AC adapter included	Yes
