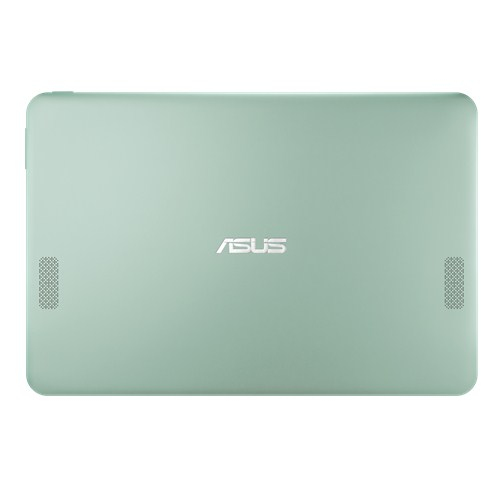

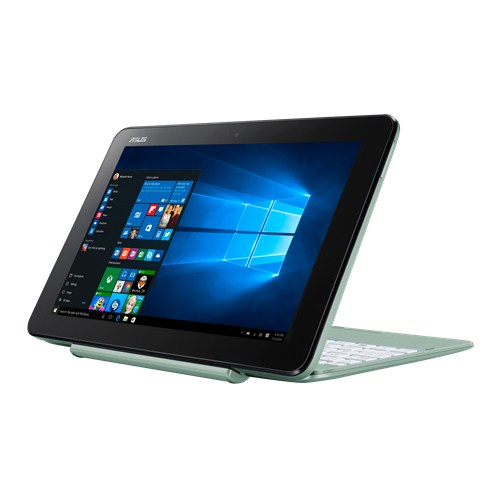

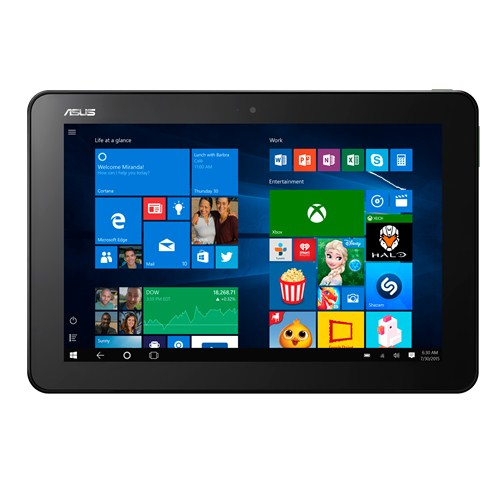

ASUS Transformer Book T101HA-GR003T Intel Atom® x5-Z8350 Hybrid (2-in-1)

Transformer Book T101HA-GR003T Intel Atom® x5-Z8350 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen HD 2 GB 32 GB Flash Wi-Fi 5 (802.11ac) Windows 10 Home Gree

Model T101HA-GR003TPart no. 90NB0BK2-M01160EAN 4712900415971

118 specifications Checked today

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: T101HA-GR003T
Part numbers: 90NB0BK2-M01160, 90NB0BK2-M02900, 90NB0BK2-M03010, 90NB0BK2-M01870
EAN / UPC: 4712900415971, 4712900540277, 4712900492835, 4712900537734
Also known as: ASUS Transformer Book T101HA-GR003T Intel Atom® x5-Z8350 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen HD 2 GB 32 GB Flash Wi-Fi 5 (802.11ac) Windows 10 Home Gree

Specifications

118 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Green
Form factor	Convertible (Detachable)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	HD
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-Z8350
Processor cores	4
Processor threads	4
Processor boost frequency	1.92 GHz
Processor frequency	1.44 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 592
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Atom x5 Series
Processor codename	Cherry Trail
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x1
PCI Express slots version	2.0

Memory

Specification	Value
Internal memory	2 GB
Memory clock speed	1600 MHz
Memory form factor	On-board
Maximum internal memory	2 GB
Maximum internal memory (64-bit)	2 GB

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	Flash
Flash memory	32 GB
Flash drive interface	Flash
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	2 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	500 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Audio

Specification	Value
Audio system	SonicMaster
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Island-style keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	93361
Processor code	SR2KT
Processor package size	17 x 17 mm
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2

Power

Specification	Value
AC adapter power	10 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, CE, FCC, BSMI, C-TICK / NZ A-Tick, CCC, GOST-R, CB, IDA, CECP, Erp 2013

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.08 kg
Width	261 mm
Depth	175 mm
Height	19 mm
Weight (tablet mode)	580 g
Width (tablet mode)	26.1 cm
Depth (tablet mode)	17.5 cm
Height (tablet mode)	9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
