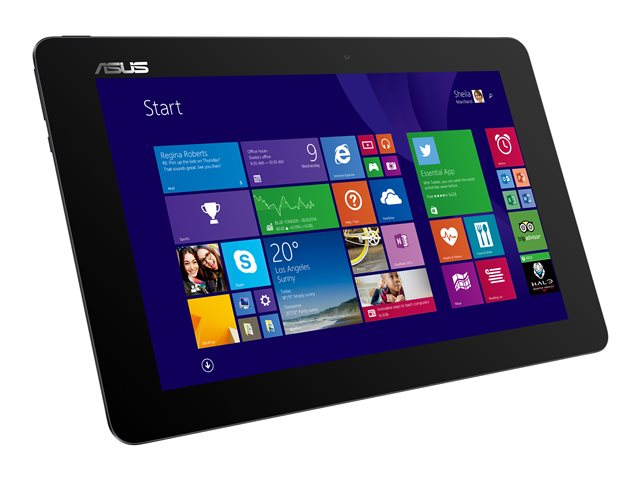

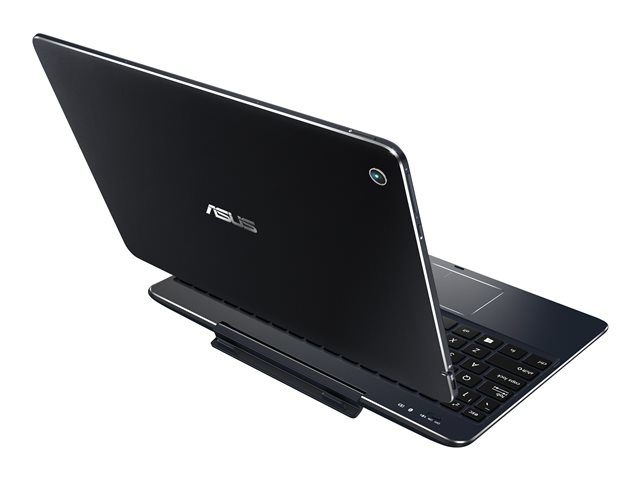

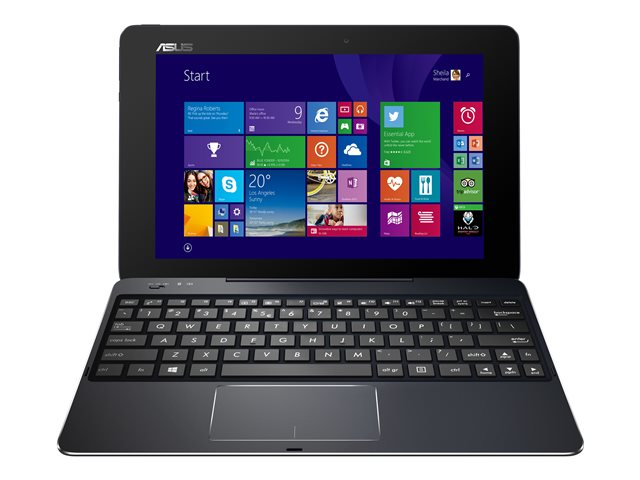

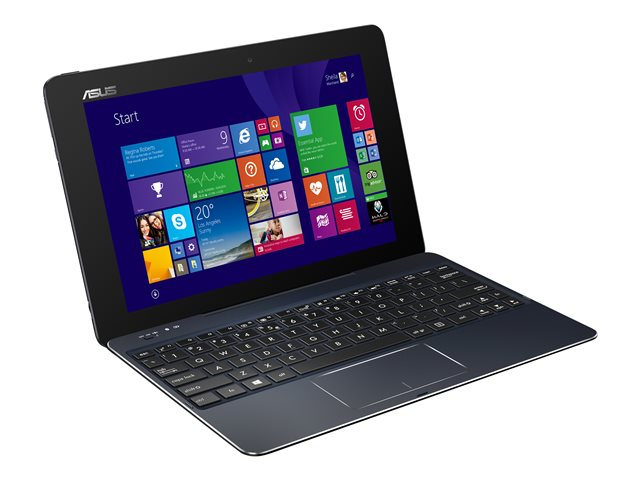

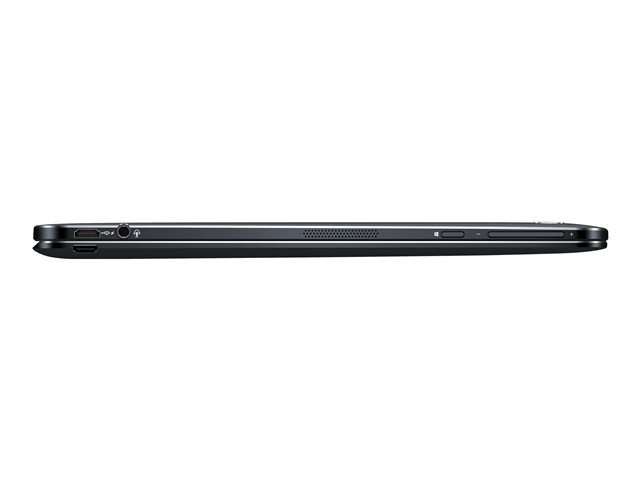

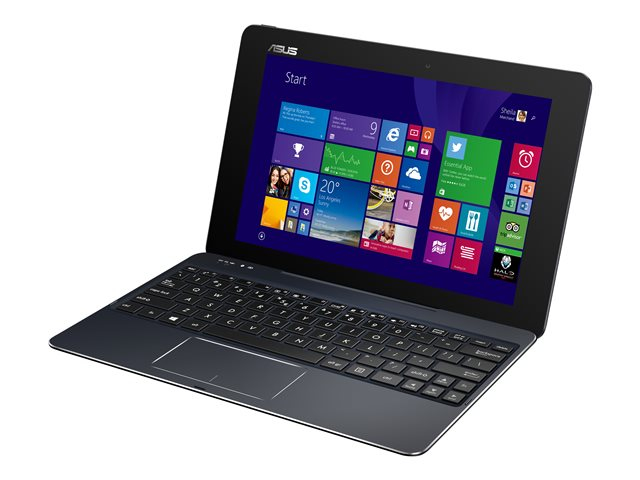

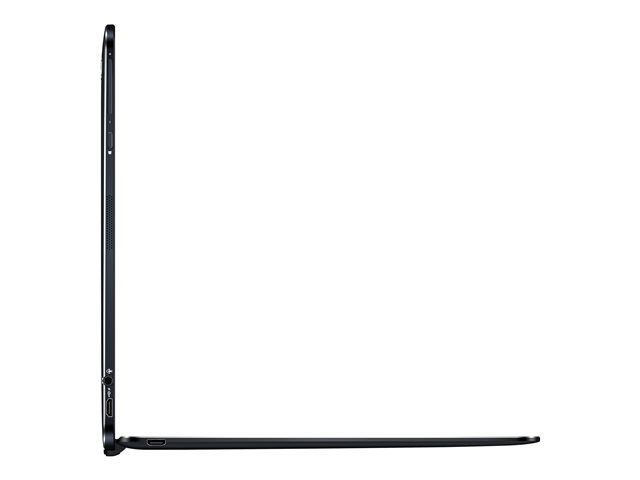

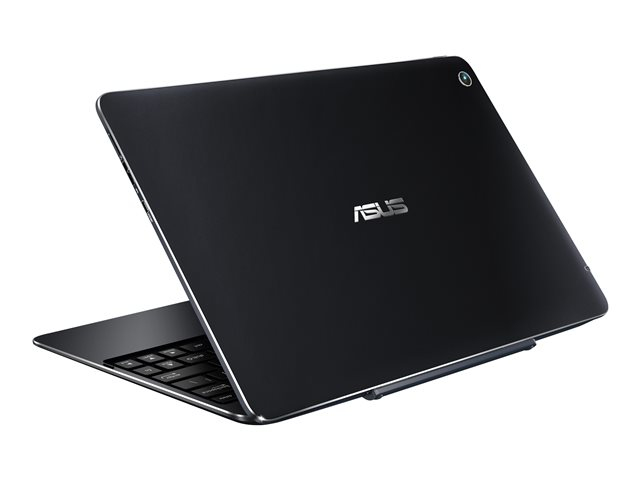

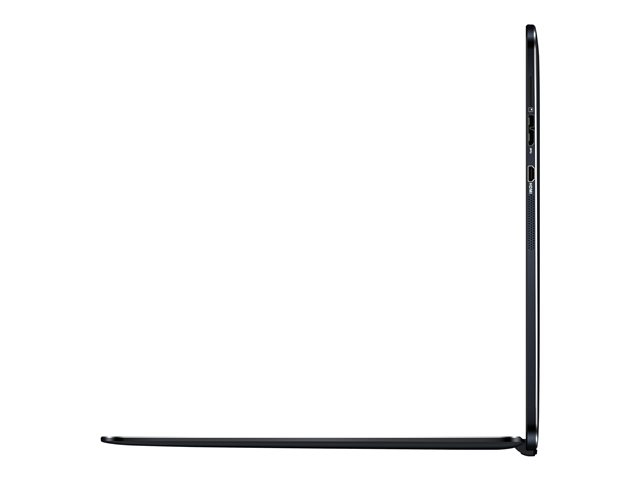

Transformer Book T100HA-FU002T Intel Atom® x5-Z8500 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen 2 GB 32 GB Flash Wi-Fi 4 (802.11n) Black, Grey

Model T100HA-FU002TPart no. 90NB0748-M04050EAN 4712900198829

147 specifications Checked today

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: T100HA-FU002T
Part numbers: 90NB0748-M04050, 90NB0748-M02300, 90NB0748-M03120, 90NB0748-M03530, 90NB0748-M04470
EAN / UPC: 4712900198829, 889349101216, 4712900101218, 4712900201505 +7 more
Also known as: ASUS Transformer Book T100HA-FU002T Intel Atom® x5-Z8500 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen 2 GB 32 GB Flash Wi-Fi 4 (802.11n) Black, Grey

Specifications

147 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Grey
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	Not supported
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-Z8500
Processor cores	4
Processor threads	4
Processor boost frequency	2.24 GHz
Processor frequency	1.44 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	BGA 1380
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Atom x5 Series
Processor codename	Cherry Trail
FSB Parity	No
Stepping	C0
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
Maximum number of PCI Express lanes	2
PCI Express configurations	2x1, 1x2
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	Flash
Flash memory	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	8 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	600 MHz
On-board graphics card dynamic frequency (max)	600 MHz

Audio

Specification	Value
Audio system	Altec Lansing
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	85474
Processor code	SR27N
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	9 V

Security

Specification	Value
Cable lock slot	No

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, MIC, CE Marking Compliance, FCC Compliance, BSMI, CCC, GOST-R, CB, IDA, CECP, Erp 2013

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.04 kg
Width	265 mm
Depth	175 mm
Height	18.4 mm
Weight (tablet mode)	580 g
Width (tablet mode)	26.5 cm
Depth (tablet mode)	17.5 cm
Height (tablet mode)	8.45 mm
