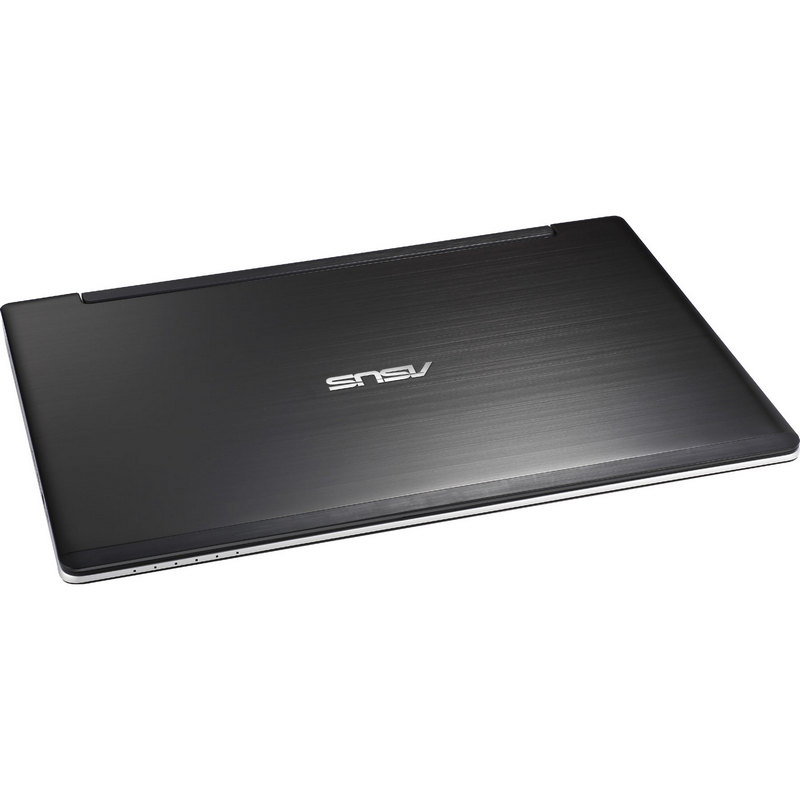

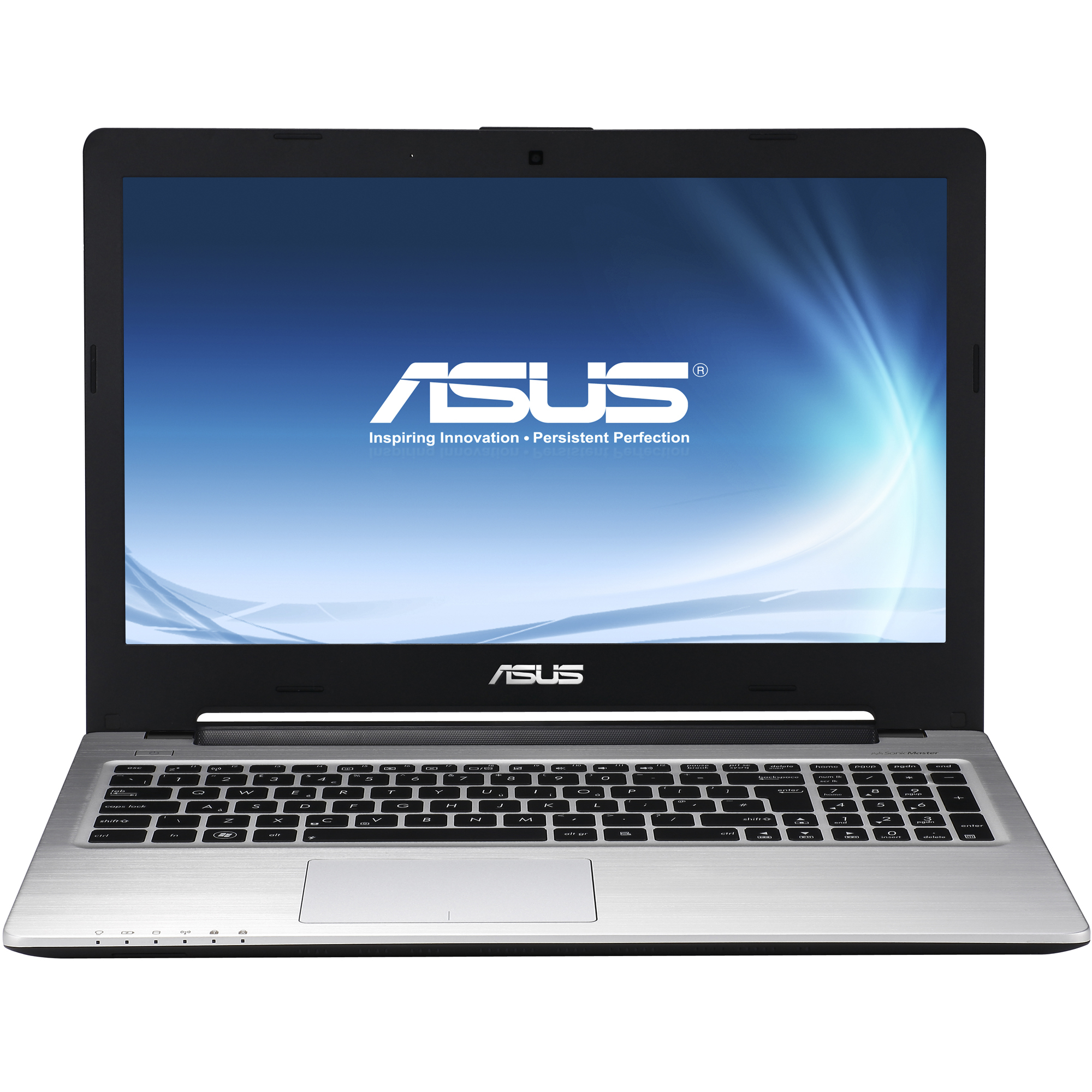

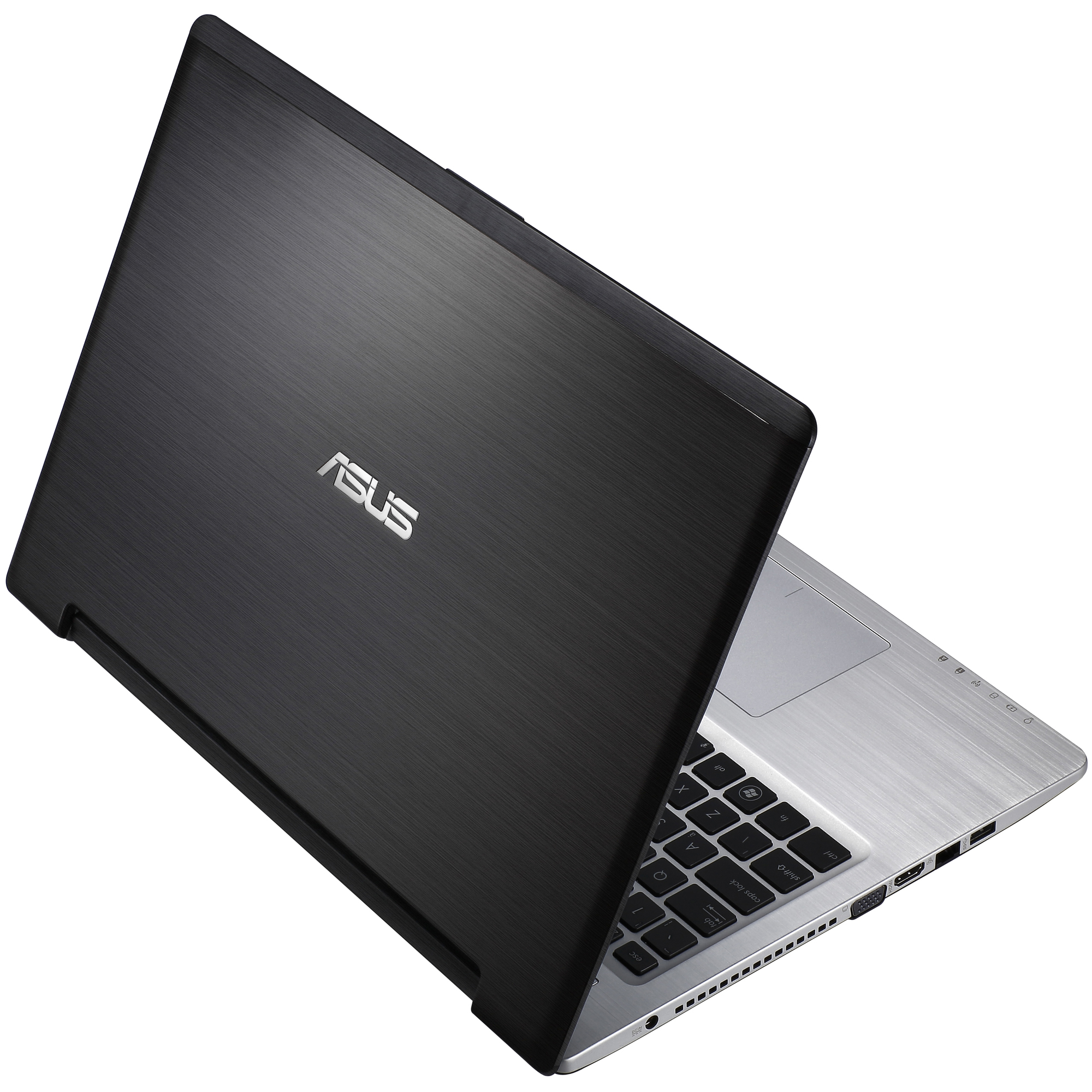

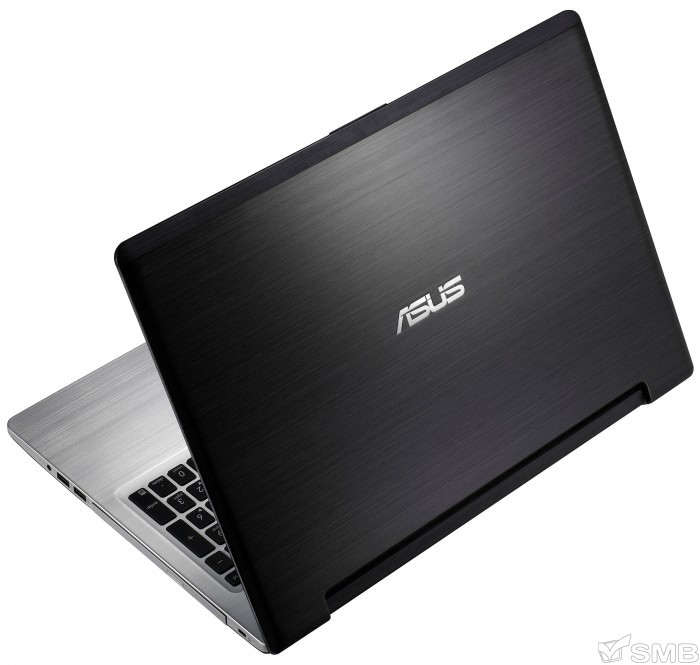

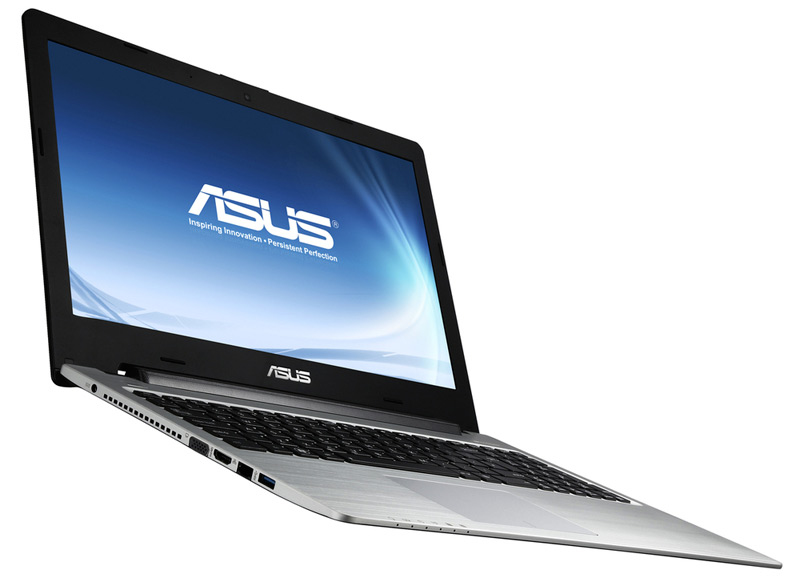

S56CM-XO289H Intel® Core™ i7 i7-3517U Laptop

39.6 cm (15.6") 4 GB DDR3-SDRAM 1 TB Hybrid-HDD NVIDIA® GeForce® GT 635M Windows 8 Black, Silver

Model S56CM-XO289HPart no. 90NUHM224L13A35D154YEAN 4716659390879

166 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 635M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 635M

Brand: ASUS
Category: Laptop
Model: S56CM-XO289H
Part number: 90NUHM224L13A35D154Y
EAN / UPC: 4716659390879
Also known as: ASUS S56CM-XO289H Intel® Core™ i7 i7-3517U Laptop 39.6 cm (15.6") 4 GB DDR3-SDRAM 1 TB Hybrid-HDD NVIDIA® GeForce® GT 635M Windows 8 Black, Silver

Specifications

166 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3517U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	1.9 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3500 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	Hybrid-HDD
HDD interface	SATA
HDD speed	5400 RPM
Hybrid-HDD cache type	SSD
Hybrid-HDD capacity	1 TB
Hybrid-HDD cache memory	24 GB
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 635M
Discrete graphics card memory	2 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
4G WiMAX	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Processor ARK ID	65714
Processor code	SR0N6
Processor package size	31.0 x 24.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	2950 mAh
Battery capacity	44 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes
