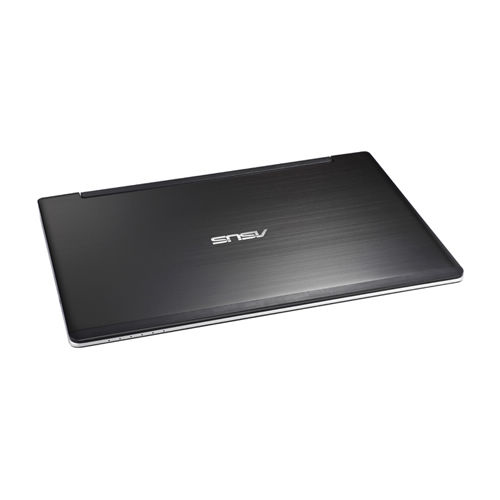

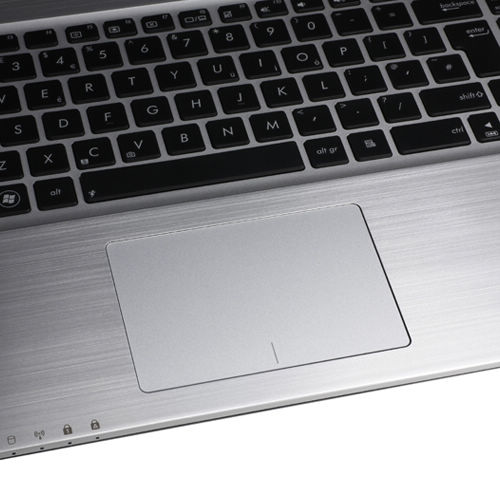

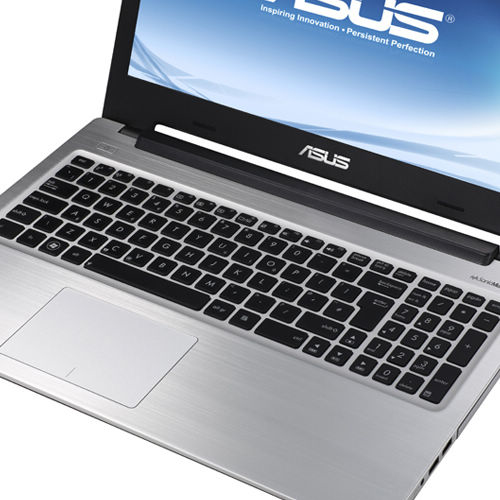

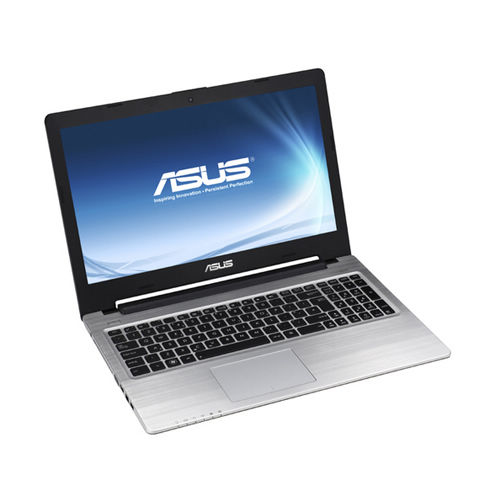

ASUS S56CA-XX054H Intel® Core™ i7 i7-3517U Laptop
ASUS

S56CA-XX054H Intel® Core™ i7 i7-3517U Laptop

39.6 cm (15.6") HD 4 GB DDR3-SDRAM 524 GB Hybrid-HDD Wi-Fi 4 (802.11n) Windows 8 Black, Silver

Model S56CA-XX054HPart no. 90NSJT214N11635D151YEAN 4716659416364

159 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Core™ i7
  • Memory4 GB
  • Storage524 GB
  • GraphicsNot available
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Core™ i7
Memory
4 GB
Storage
524 GB
Graphics
Not available
Brand
ASUS
Category
Laptop
Model
S56CA-XX054H
Part number
90NSJT214N11635D151Y
EAN / UPC
4716659416364
Also known as
ASUS S56CA-XX054H Intel® Core™ i7 i7-3517U Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 524 GB Hybrid-HDD Wi-Fi 4 (802.11n) Windows 8 Black, Silver

Specifications

159 specifications in 20 groups

Design

Product typeLaptop
Product colourBlack, Silver
Form factorClamshell

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
TouchscreenNo
HD typeHD
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation3rd gen Intel® Core™ i7
Processor modeli7-3517U
Processor cores2
Processor threads4
Processor boost frequency3 GHz
Processor frequency1.9 GHz
System bus rate5 GT/s
Processor cache4 MB
Processor cache typeSmart Cache
Processor socketBGA 1023
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i7-3500 Mobile series
Processor codenameIvy Bridge
Bus typeDMI
FSB ParityNo
SteppingL1
Thermal Design Power (TDP)17 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x8, 1x16, 2x4, 2x8
PCI Express slots version2.0
CPU multiplier (bus/core ratio)19
ECC supported by processorNo

Memory

Internal memory4 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1600 MHz
Memory form factorSO-DIMM
Memory slots2x SO-DIMM
Maximum internal memory8 GB

Storage

Total storage capacity524 GB
Storage mediaHybrid-HDD
Number of HDDs installed1
HDD interfaceSATA
HDD speed5400 RPM
Hybrid-HDD cache typeSSD
Hybrid-HDD capacity500 GB
Hybrid-HDD cache memory24 GB
HDD size2.5"
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsSD

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4000
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card ID0x166

Audio

Audio systemSonicMaster Lite
Built-in microphoneYes

Camera

Rear cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Cabling technology10/100/1000Base-T(X)
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
eSATA/USB 2.0 ports quantity0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity0
DVI portNo
VGA (D-Sub) ports quantity0
Firewire (IEEE 1394) ports0
Thunderbolt ports quantity0
Mini VGA ports quantity1
S/PDIF out portNo
Combo headphone/mic portYes
Microphone inNo
Docking connectorNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo
Serial ports quantity0

Performance

Motherboard chipsetIntel HM76 Express

Keyboard

Pointing deviceTouchpad
Numeric keypadYes

Software

Operating system installedWindows 8
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure Key Technology version1.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID65714
Processor codeSR0N6
Processor package size31.0 x 24.0 mm
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Number of battery cells4
Battery capacity2950 mAh
Battery capacity44 Wh

Power

AC adapter power65 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current3.42 A
AC adapter output voltage19 V
DC-in jackYes

Security

Cable lock slotNo

Weight & dimensions

Weight2.3 kg
Width380 mm
Depth266 mm
Height (front)2.1 cm
Height (rear)2.1 cm

Packaging content

AC adapter includedYes
Cables includedAC

Other features

3DNo
