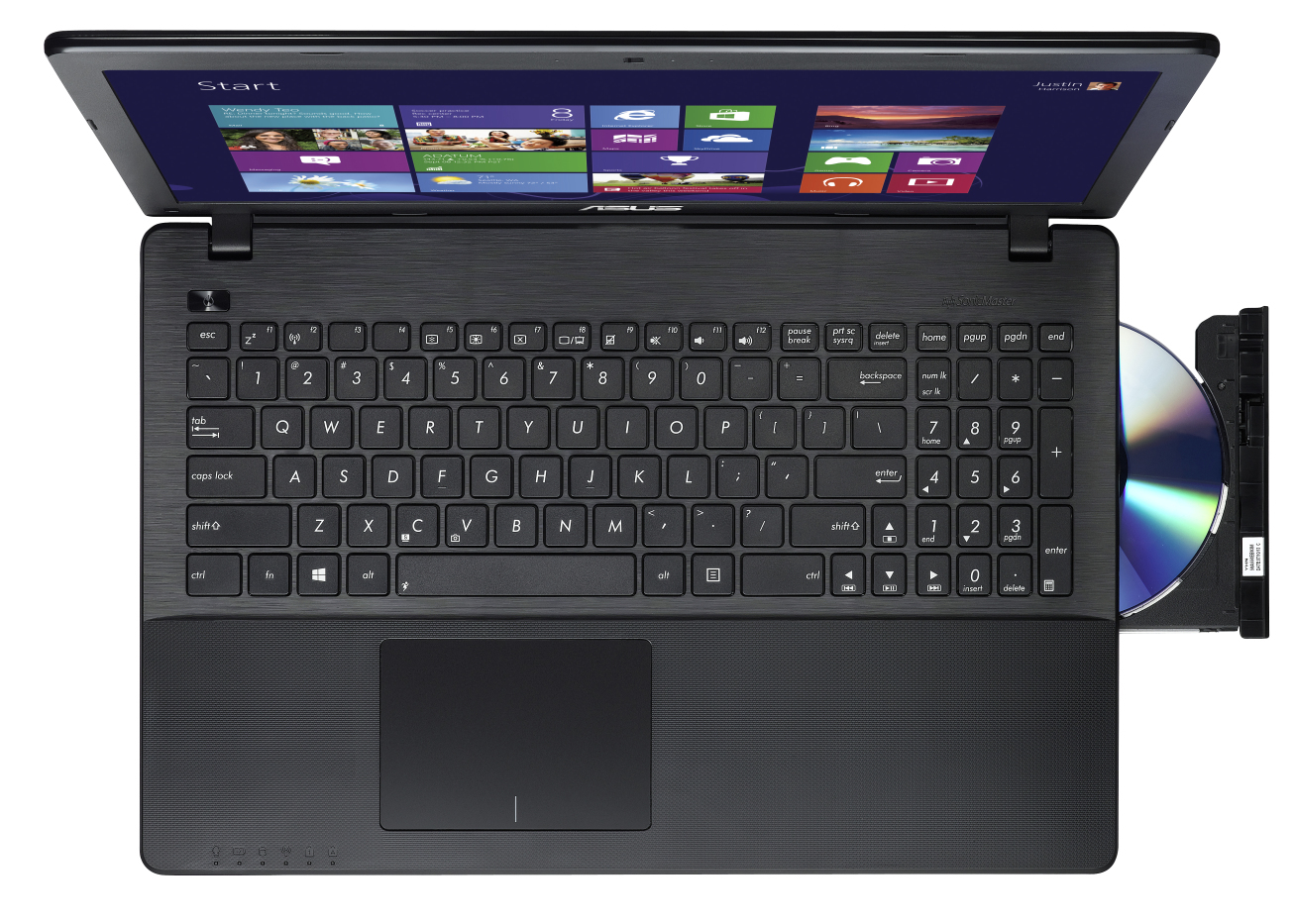

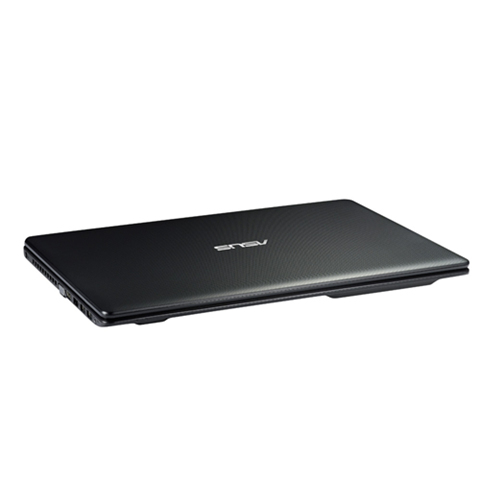

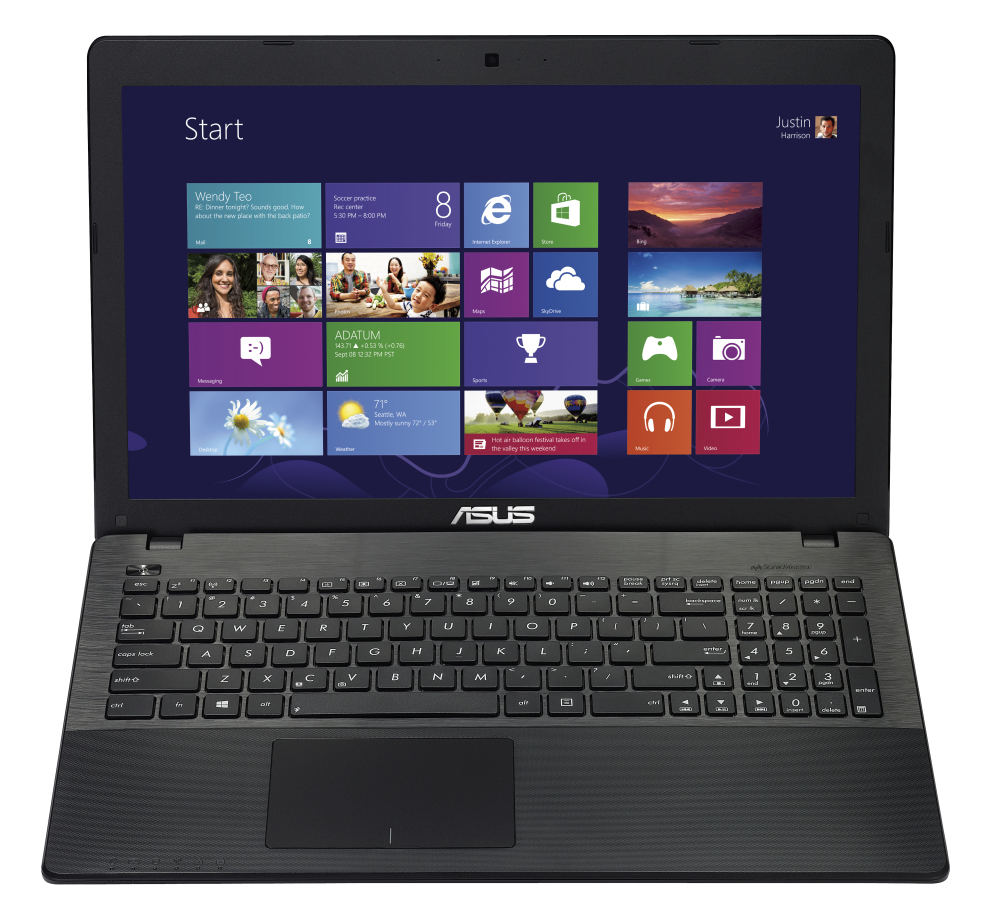

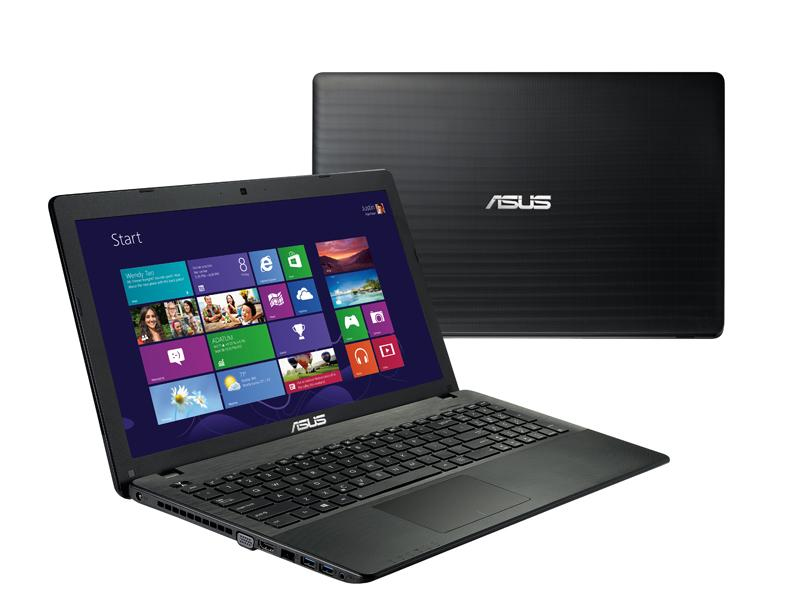

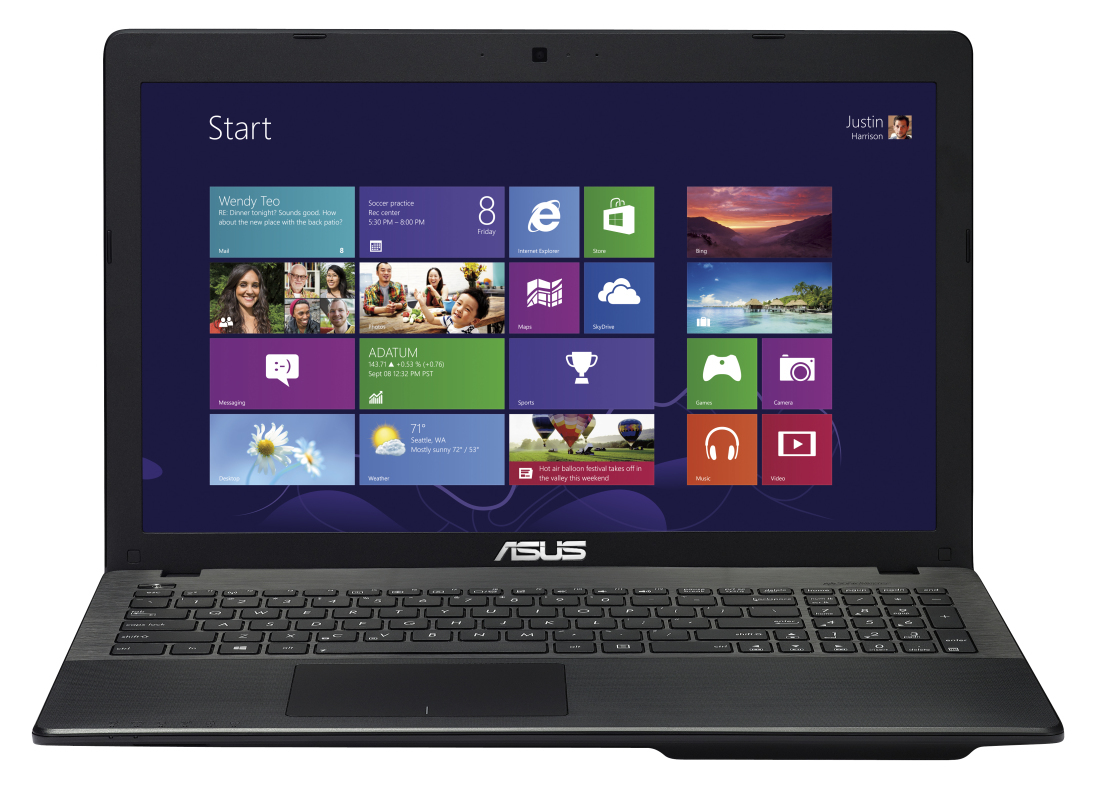

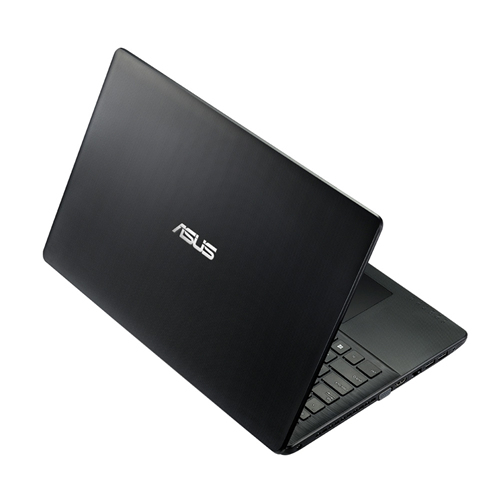

R513CL-SX204H laptop Intel® Pentium® 2117U

39.6 cm (15.6") HD 8 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeForce® GT 710M Windows 8 Black

Model R513CL-SX204H

138 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: R513CL-SX204H
Part number: R513CL-SX204H
Also known as: ASUS R513CL-SX204H laptop Intel® Pentium® 2117U 39.6 cm (15.6") HD 8 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeForce® GT 710M Windows 8 Black

138 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	2117U
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 2000 series for Mobile
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	P0
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 710M
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Specification	Value
Operating system installed	Windows 8

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	71469
Processor code	SR0VQ
Processor package size	31 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
