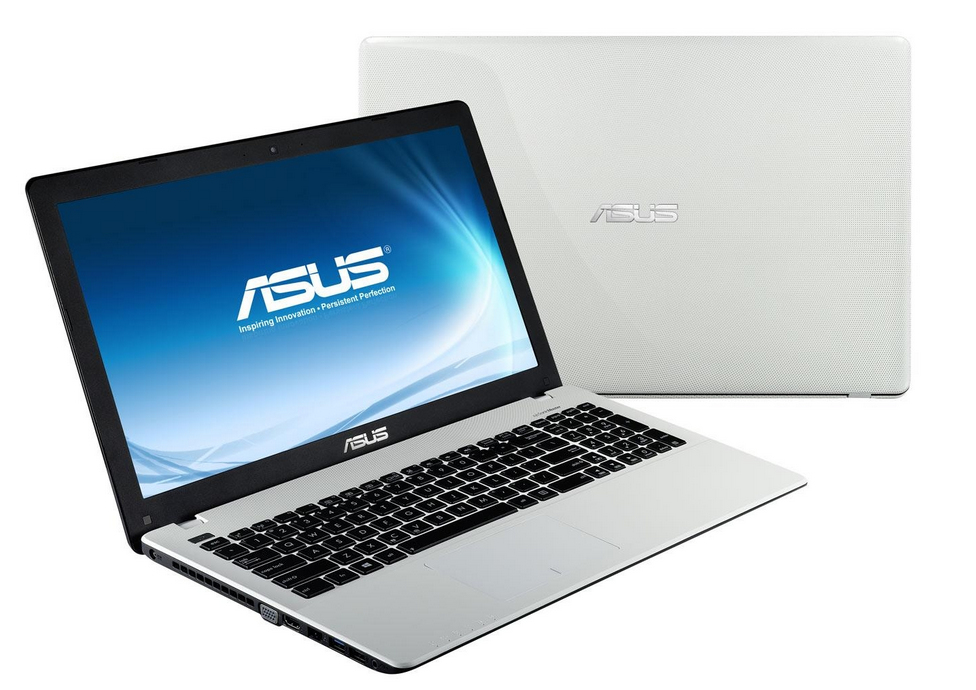

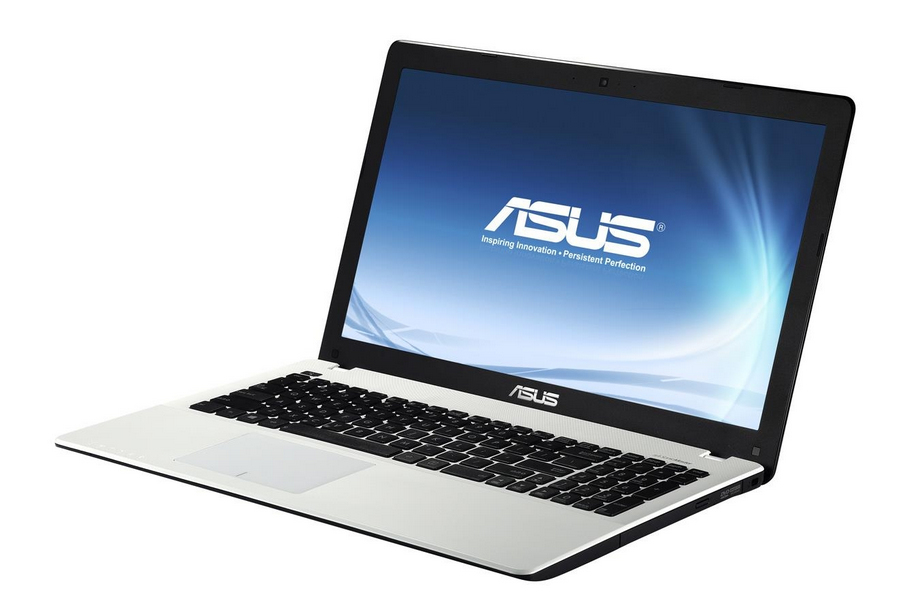

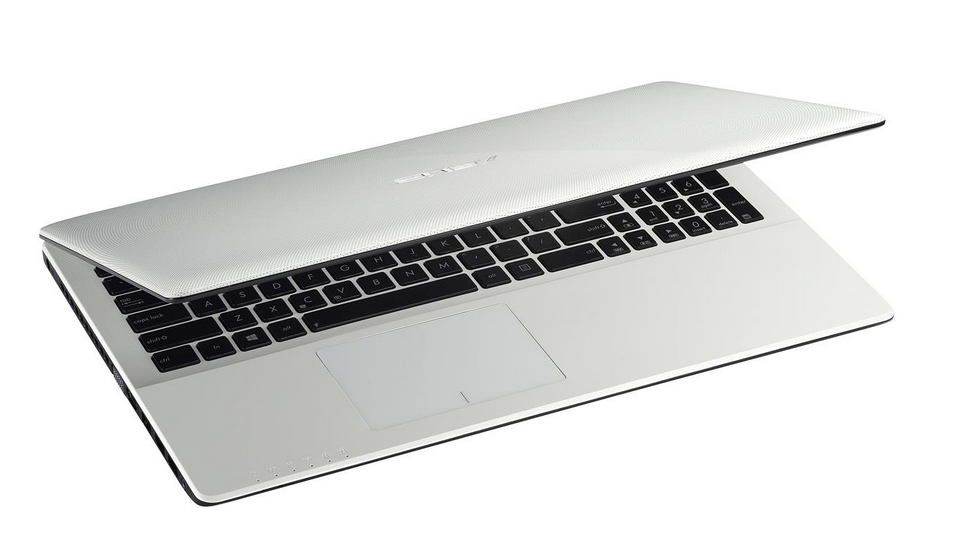

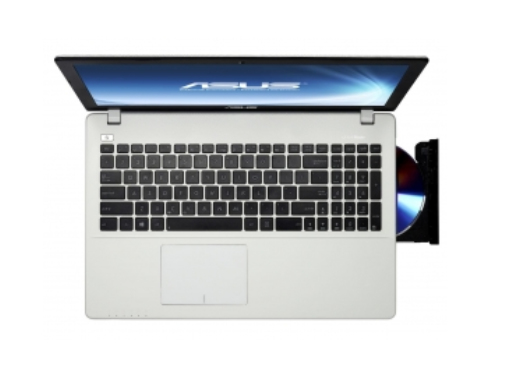

ASUS R510LDV-XX596D-12 Intel® Core™ i5 i5-4210U Laptop
ASUS

R510LDV-XX596D-12 Intel® Core™ i5 i5-4210U Laptop

39.6 cm (15.6") HD 12 GB DDR3L-SDRAM 628 GB HDD+SSD NVIDIA® GeForce® GT 820M Wi-Fi 4 (802.11n) FreeDOS Wh

Model R510LDV-XX596D-12Part no. R510LDV-XX596D

153 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Core™ i5
  • Memory12 GB
  • Storage628 GB
  • GraphicsNVIDIA® GeForce® GT 820M
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Core™ i5
Memory
12 GB
Storage
628 GB
Graphics
NVIDIA® GeForce® GT 820M
Brand
ASUS
Category
Laptop
Model
R510LDV-XX596D-12
Part number
R510LDV-XX596D
Also known as
ASUS R510LDV-XX596D-12 Intel® Core™ i5 i5-4210U Laptop 39.6 cm (15.6") HD 12 GB DDR3L-SDRAM 628 GB HDD+SSD NVIDIA® GeForce® GT 820M Wi-Fi 4 (802.11n) FreeDOS Wh

Specifications

153 specifications in 17 groups

Design

Product typeLaptop
Product colourWhite
Form factorClamshell

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
TouchscreenNo
HD typeHD
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation4th gen Intel® Core™ i5
Processor modeli5-4210U
Processor cores2
Processor threads4
Processor boost frequency2.7 GHz
Processor frequency1.7 GHz
System bus rate5 GT/s
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketBGA 1168
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-4200 Mobile series
Processor codenameHaswell
Bus typeDMI2
FSB ParityNo
SteppingD0
Thermal Design Power (TDP)15 W
Tjunction100 °C
Maximum number of PCI Express lanes12
PCI Express configurations4x1, 2x4
PCI Express slots version2.0
ECC supported by processorNo

Memory

Internal memory12 GB
Internal memory typeDDR3L-SDRAM
Memory clock speed1600 MHz

Storage

Total storage capacity628 GB
Storage mediaHDD+SSD
Number of HDDs installed1
HDD capacity500 GB
HDD speed5400 RPM
Number of SSDs installed1
SSD capacity128 GB
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsSD

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® GeForce® GT 820M
Discrete graphics card memory2 GB
Discrete graphics memory typeGDDR3
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4400
Maximum on-board graphics card memory1.74 GB
On-board graphics card base frequency200 MHz
On-board graphics card dynamic frequency (max)1000 MHz
On-board graphics card DirectX version12
On-board graphics card ID0xA16

Audio

Audio systemSonicMaster
Built-in microphoneYes

Camera

Front cameraYes

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothNo

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity0
DVI portNo
VGA (D-Sub) ports quantity1
Thunderbolt ports quantity0
Headphone outputs0
S/PDIF out portNo
Combo headphone/mic portYes
Microphone inNo
Docking connectorNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo
Total number of SATA connectors4
Number of SATA III connectors4

Keyboard

Pointing deviceTouchpad
Numeric keypadYes
Full-size keyboardYes
Windows keysYes

Software

Operating system installedFreeDOS

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyNo
Intel Enhanced Halt StateYes
Intel FDI TechnologyNo
Intel Fast Memory AccessNo
Intel Flex Memory AccessNo
Intel Identity Protection Technology version1.00
Intel ME Firmware Version9.5
Intel Rapid Storage TechnologyYes
Intel Secure Key Technology version1.00
Intel Smart Connect TechnologyYes
Intel Smart Connect Technology version1.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Matrix Storage Technology (Intel® MST)No
Intel® My WiFi Technology (Intel® MWT)No
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Intel® Virtualization Technology (Intel® VT)VT-x
Processor ARK ID81016
Processor codeSR1EF
Processor package size40 x 24 x 1.5 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
UARTYes
Conflict-Free processorYes

Power

AC adapter power65 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current3.42 A
AC adapter output voltage19 V
DC-in jackYes

Security

Cable lock slotNo

Weight & dimensions

Weight2.3 kg
Width380 mm
Depth251 mm
Height (front)2.48 cm
Height (rear)3.17 cm

Other features

3DNo
