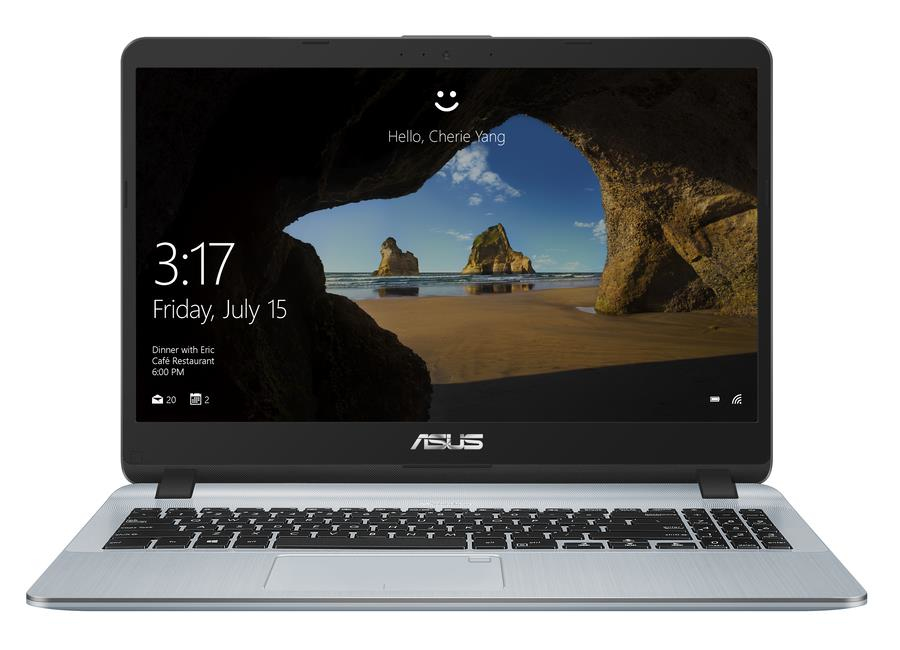

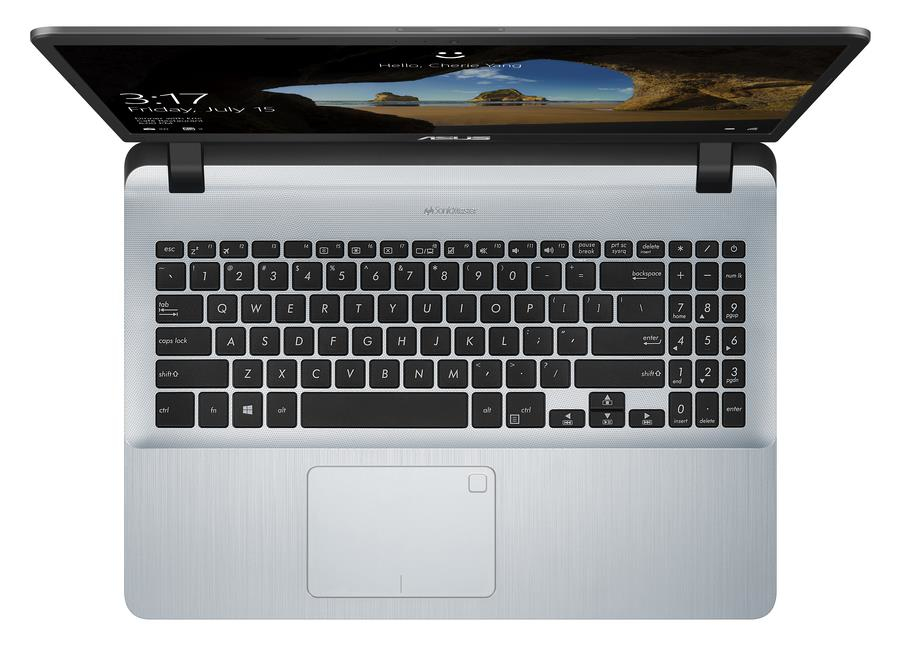

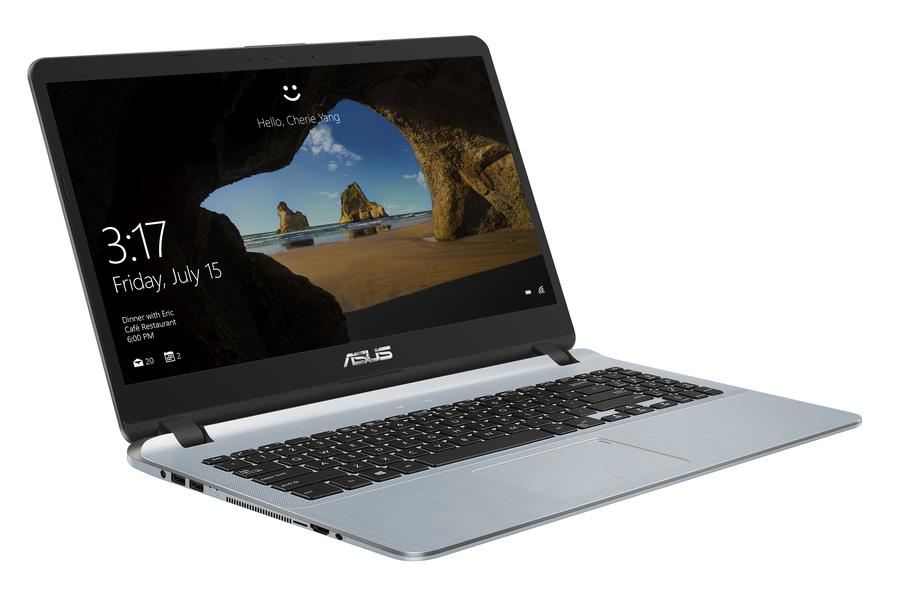

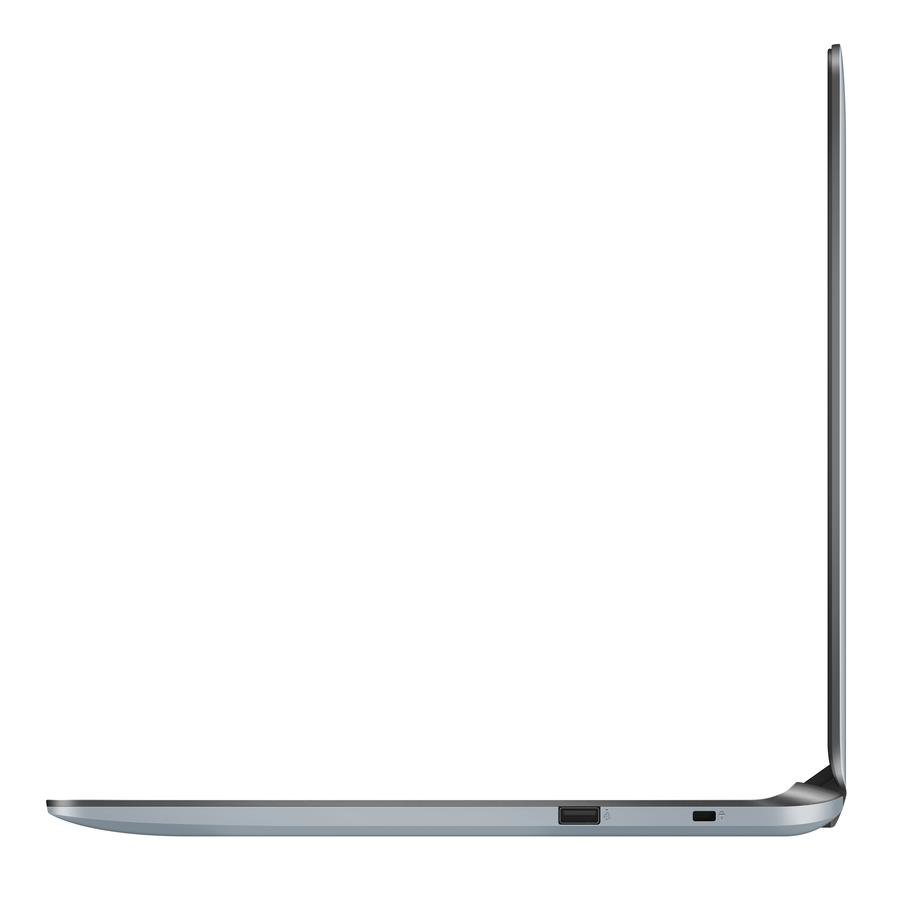

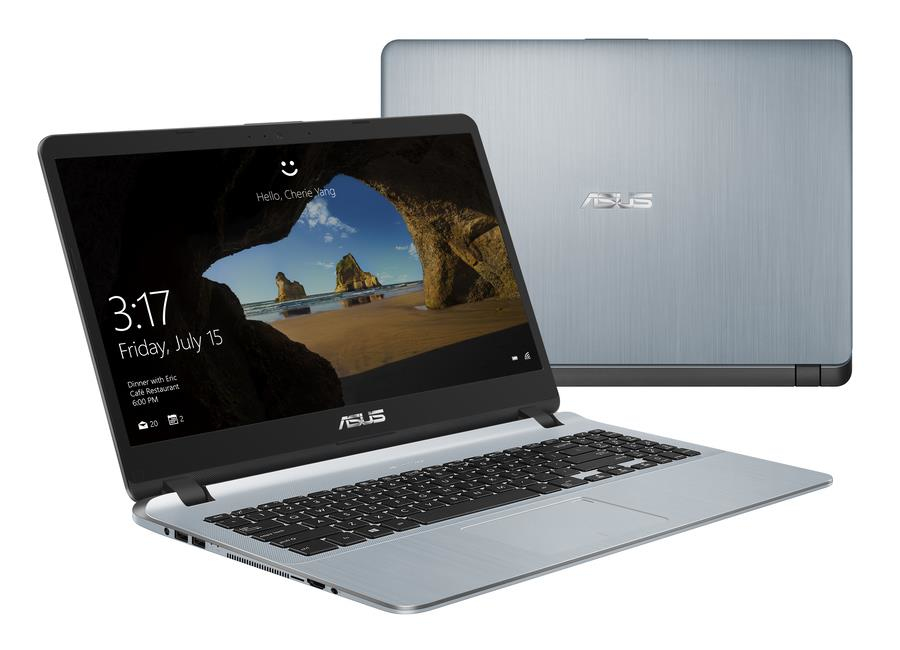

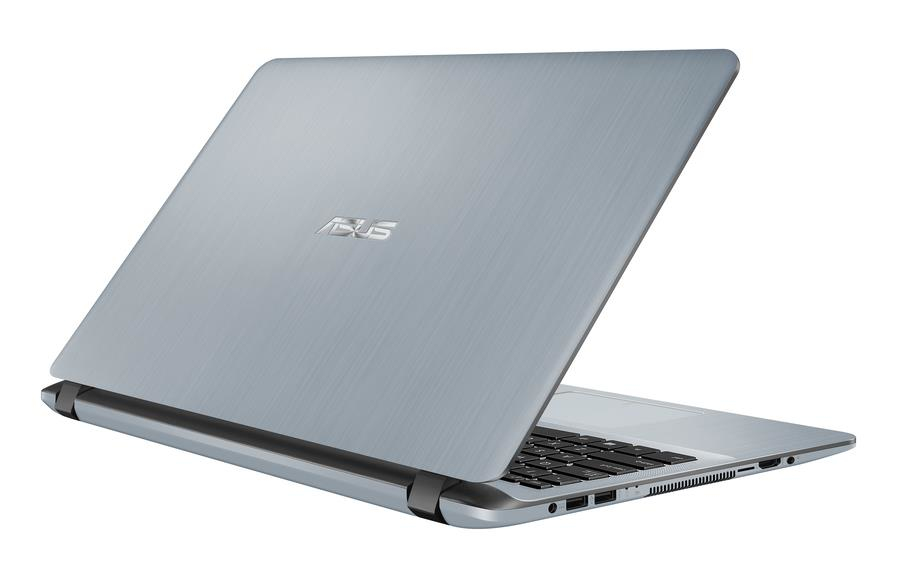

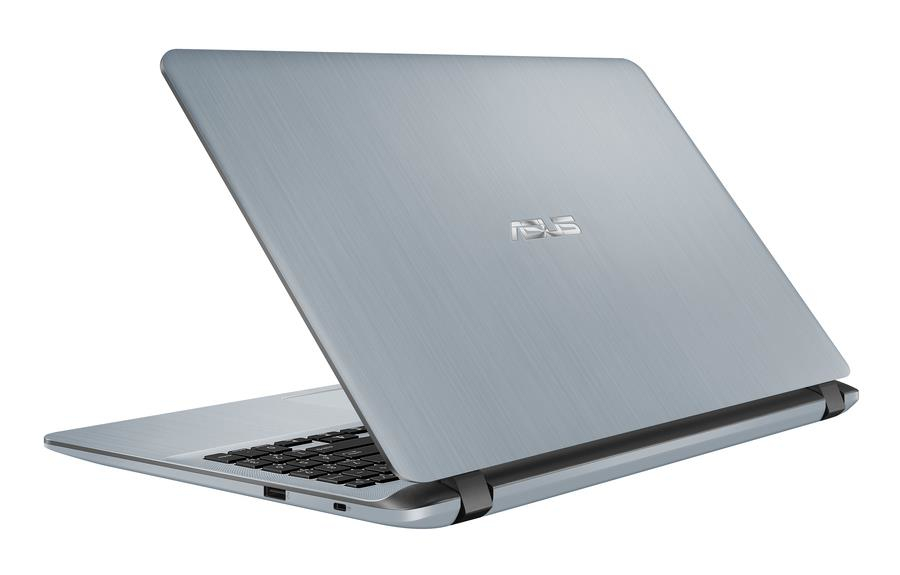

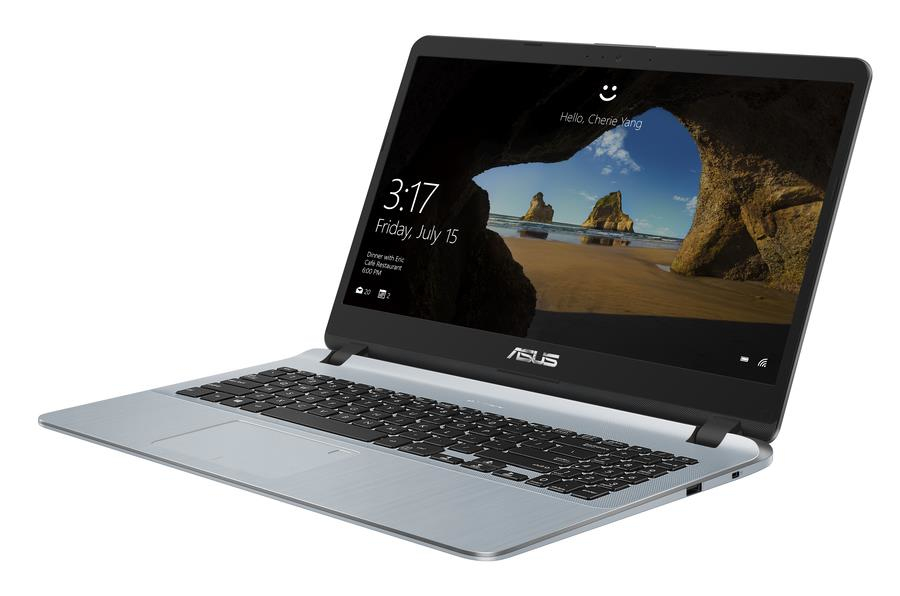

R507UB-EJ057T-BE Intel® Core™ i7 i7-7500U Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® MX110 Wi-Fi 5 (802.11ac) Windows

Model R507UB-EJ057T-BEPart no. 90NB0HN2-M00680EAN 4712900922967

163 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1.12 TB
GraphicsNVIDIA® GeForce® MX110

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1.12 TB
Graphics: NVIDIA® GeForce® MX110

Brand: ASUS
Category: Laptop
Model: R507UB-EJ057T-BE
Part number: 90NB0HN2-M00680
EAN / UPC: 4712900922967
Also known as: ASUS R507UB-EJ057T-BE Intel® Core™ i7 i7-7500U Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® MX110 Wi-Fi 5 (802.11ac) Windows

Specifications

163 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7500U
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.7 GHz
System bus rate	4 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.9 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM

Storage

Specification	Value
Total storage capacity	1.12 TB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® MX110
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5916

Audio

Specification	Value
Audio system	SonicMaster
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes

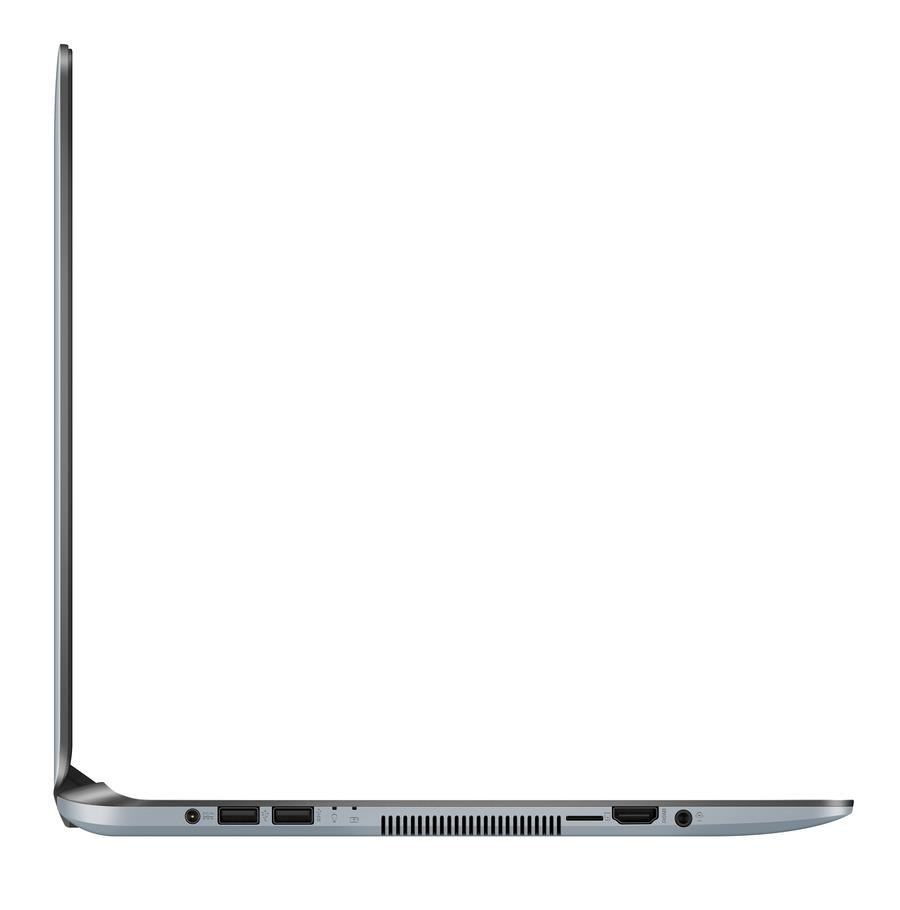

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 2.0 Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
Mini DisplayPort/Thunderbolt combo port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Combo headphone/mic port	Yes
Number of USB ports with PowerShare support	0
Number of Thunderbolt 3 ports with PowerShare support	0

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95451
Processor code	SR2ZV
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
