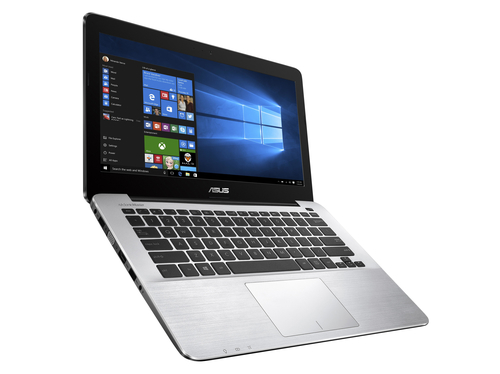

R301UA-R4217T Intel® Core™ i3 i3-6006U Laptop

33.8 cm (13.3") Full HD 8 GB DDR3L-SDRAM 256 GB SSD Wi-Fi 4 (802.11n) Windows 10 Home Black, Stainless steel

Model R301UA-R4217TPart no. 90NB0AR1-M03380EAN 4712900686487

147 specifications Checked today

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: R301UA-R4217T
Part number: 90NB0AR1-M03380
EAN / UPC: 4712900686487
Also known as: ASUS R301UA-R4217T Intel® Core™ i3 i3-6006U Laptop 33.8 cm (13.3") Full HD 8 GB DDR3L-SDRAM 256 GB SSD Wi-Fi 4 (802.11n) Windows 10 Home Black, Stainless steel

Specifications

147 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Stainless steel
Form factor	Clamshell

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6006U
Processor cores	2
Processor threads	4
Processor frequency	2 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6000 Mobile Processor Series
Processor codename	Skylake
Bus type	OPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
SSD capacity	256 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	91157
Processor code	SSSR2UW
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	38 Wh

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.37 A
AC adapter output voltage	19 V
DC-in jack	Yes
