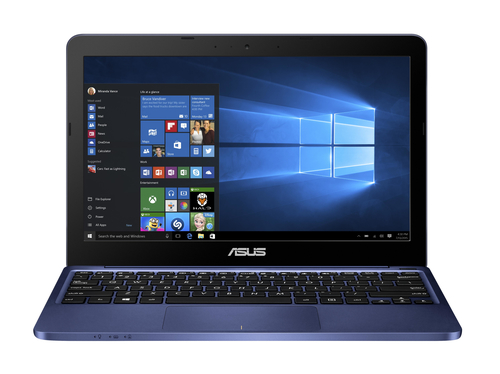

Vivobook R209HA-FD0060T-BE Intel Atom® x5-Z8350 Laptop

29.5 cm (11.6") HD 2 GB DDR3L-SDRAM 64 GB eMMC Windows 10 Blue

Model R209HA-FD0060T-BEPart no. 90NL0072-M04040EAN 4712900442588

113 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: R209HA-FD0060T-BE
Part number: 90NL0072-M04040
EAN / UPC: 4712900442588
Also known as: ASUS Vivobook R209HA-FD0060T-BE Intel Atom® x5-Z8350 Laptop 29.5 cm (11.6") HD 2 GB DDR3L-SDRAM 64 GB eMMC Windows 10 Blue

113 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-Z8350
Processor cores	4
Processor threads	4
Processor boost frequency	1.92 GHz
Processor frequency	1.44 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 592
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Atom x5 Series
Processor codename	Cherry Trail
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x1
PCI Express slots version	2.0

Specification	Value
Total storage capacity	64 GB
Storage media	eMMC
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	2 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	500 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	1
Mini VGA ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Specification	Value
Operating system installed	Windows 10

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	93361
Processor code	SR2KT
Processor package size	17 x 17 mm
Conflict-Free processor	Yes
