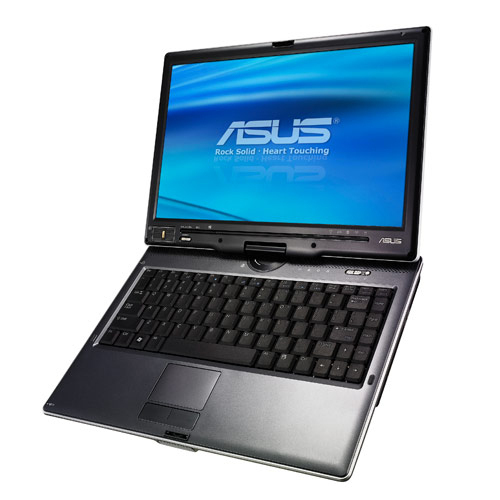

R1E-X8 laptop Intel® Core™2 Duo T5750
33.8 cm (13.3") 2 GB DDR2-SDRAM 160 GB GM965 Windows XP Professional Silver
Model R1E-X8
107 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage160 GB
- GraphicsGM965
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- GM965
- Brand
- ASUS
- Category
- Laptop
- Model
- R1E-X8
- Part number
- R1E-X8
- Also known as
- ASUS R1E-X8 laptop Intel® Core™2 Duo T5750 33.8 cm (13.3") 2 GB DDR2-SDRAM 160 GB GM965 Windows XP Professional Silver
Specifications
107 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | T5750 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 667 MHz |
| Processor socket | mPGA4 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo T5000 Series |
| Stepping | M0 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 85 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | GM965 |
| Graphics card family | Intel |
Audio
| Specification | Value |
|---|---|
| Audio system | Azalia |
| Audio system full duplex | Yes |
| Audio system direct 3D sound | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |
| Wireless technology | Wi-Fi |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | Yes |
| TV-out type | S-Video |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
| Trial software | Norton Internet Security 2007 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 33915 |
| Processor code | SLA4D |
| Processor package size | 35 x 35 mm |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 5200 mAh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | BIOS |
| HDD user password | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
| Width | 317 mm |
| Depth | 232 mm |
| Height | 35 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Internal modem | Yes |
| TV tuner integrated | No |
| Modem speed | 56 Kbit/s |
| Modem type | V.92 |
| Supplied AC adapter type | AC |
