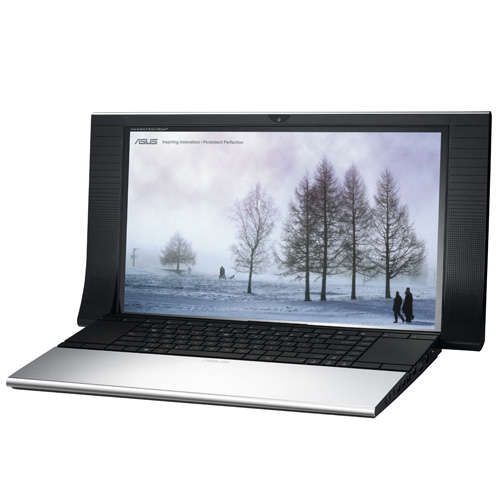

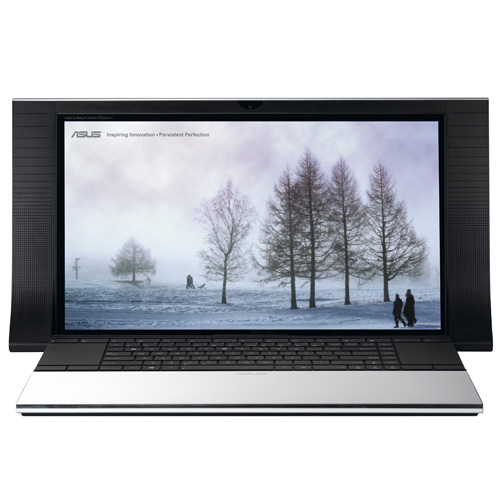

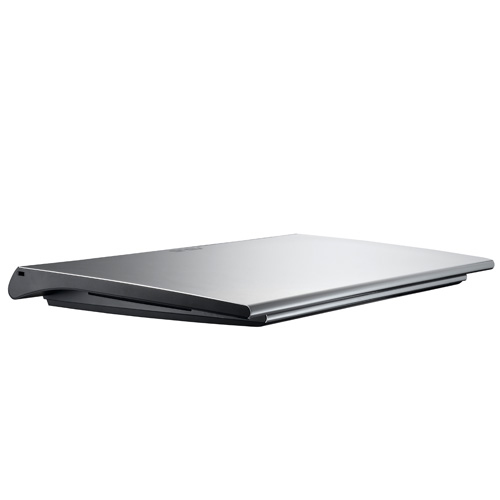

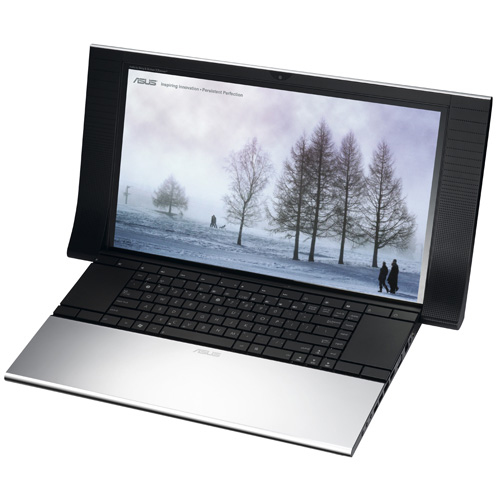

NX90JQ-YZ071V laptop Intel® Core™ i7 i7-740QM

46.7 cm (18.4") Full HD 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 335M Windows 7 Home Premium Black, Silve

Model NX90JQ-YZ071V

146 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: NX90JQ-YZ071V
Part number: NX90JQ-YZ071V
Also known as: ASUS NX90JQ-YZ071V laptop Intel® Core™ i7 i7-740QM 46.7 cm (18.4") Full HD 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 335M Windows 7 Home Premium Black, Silve

146 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-740QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.93 GHz
Processor frequency	1.73 GHz
System bus rate	2.5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-700 Mobile Series
Processor codename	Clarksfield
Bus type	DMI
FSB Parity	No
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD capacity	1 TB
HDD interface	SATA
HDD size	2.5"
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 335M
Discrete graphics memory type	GDDR3
On-board graphics card model	Not available

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Specification	Value
Front camera resolution (numeric)	2 MP

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Specification	Value
Motherboard chipset	Intel® HM55 Express

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	49024
Processor code	SLBQG
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
