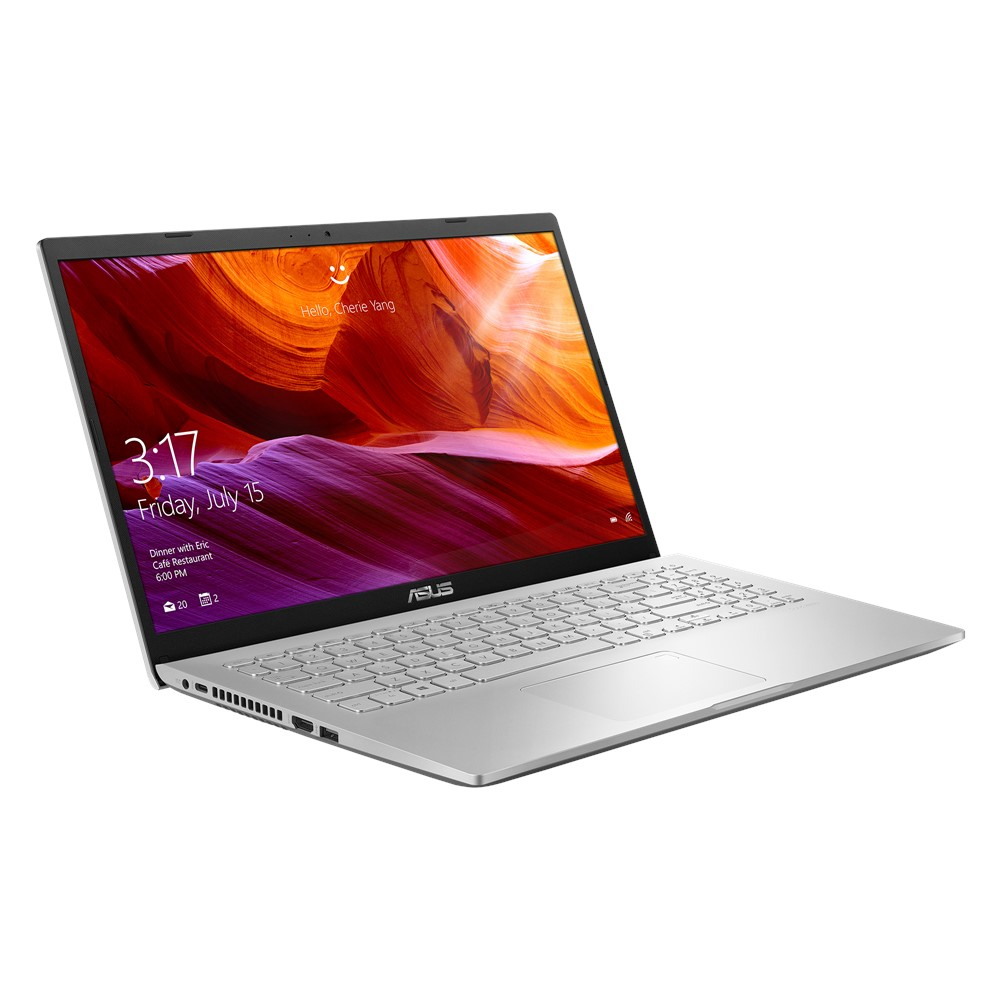

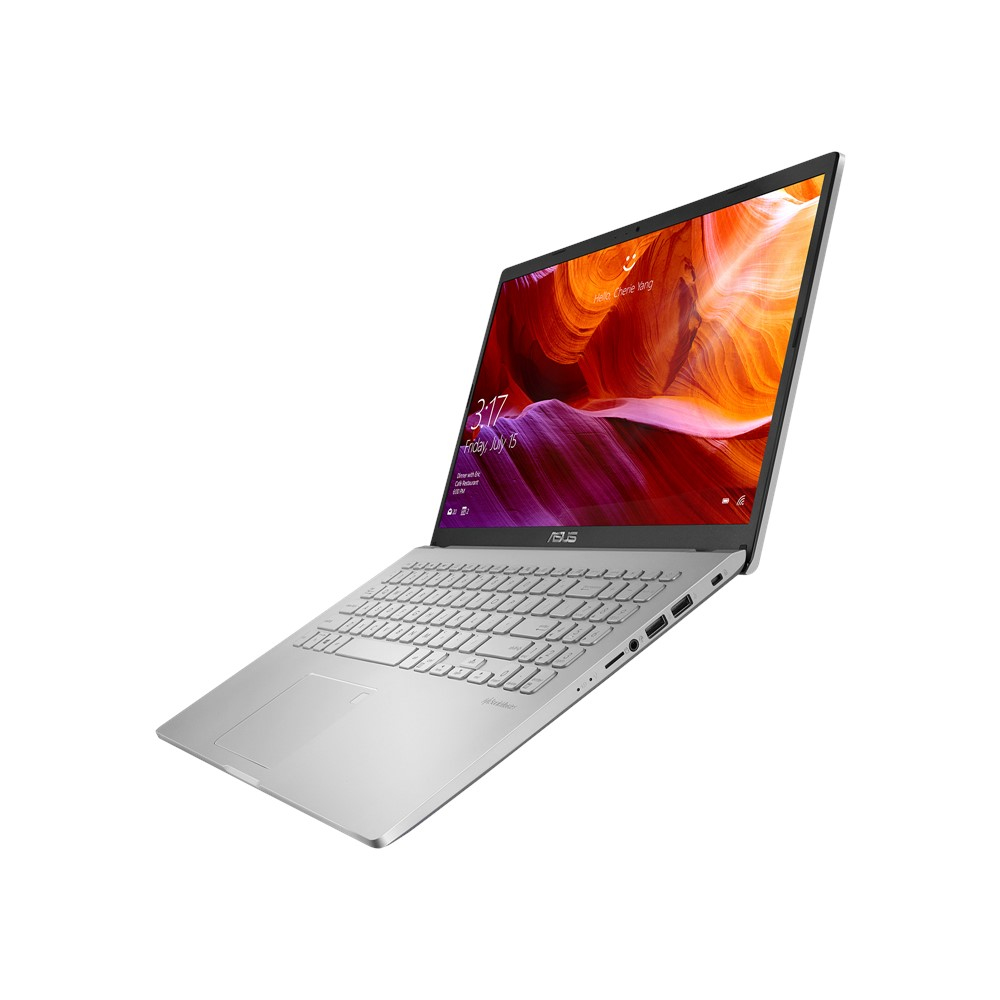

ASUS M509DA-EJ025T AMD Ryzen™ 5 3500U Laptop

M509DA-EJ025T AMD Ryzen™ 5 3500U Laptop

39.6 cm (15.6") 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Silver

Model M509DA-EJ025TPart no. 90NB0P51-M00830EAN 4718017453912

87 specifications Checked today

Display39.6 cm (15.6")
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage512 GB
GraphicsNot available
Battery32 Wh

See all specifications

Overview

Display: 39.6 cm (15.6")
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available
Battery: 32 Wh

Brand: ASUS
Category: Laptop
Model: M509DA-EJ025T
Part numbers: 90NB0P51-M00830, 90NB0P51-M03550
EAN / UPC: 4718017453912, 4718017523189
Also known as: ASUS M509DA-EJ025T AMD Ryzen™ 5 3500U Laptop 39.6 cm (15.6") 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Silver

Specifications

87 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 3000 Series
Processor model	3500U
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	Socket AM4
Processor lithography	12 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	15 W
Tjunction	105 °C
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 3.0
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	AMD Radeon Vega Graphics
On-board graphics card model	AMD Radeon Vega 8
On-board graphics card dynamic frequency (max)	1200 MHz

Audio

Specification	Value
Audio system	SonicMaster
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	640 x 480 pixels

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Battery

Specification	Value
Number of battery cells	2
Battery capacity	32 Wh

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.37 A
AC adapter output voltage	19 V
DC-in jack	Yes

Certificates

Specification	Value
Certification	UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	360.2 mm
Depth	234.9 mm
Height	22.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Warranty card	Yes
