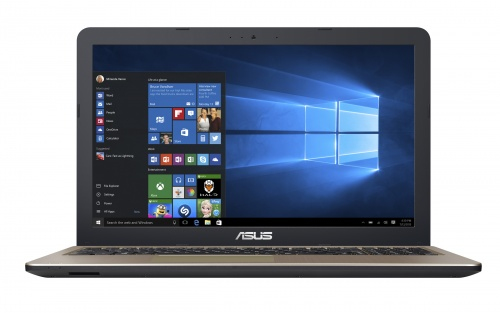

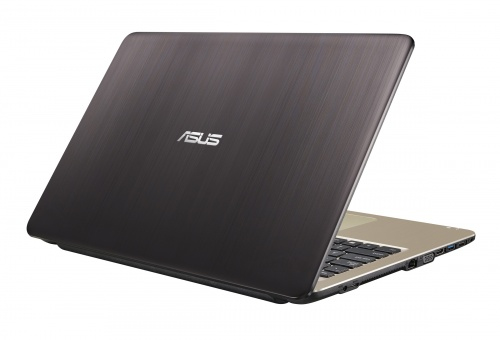

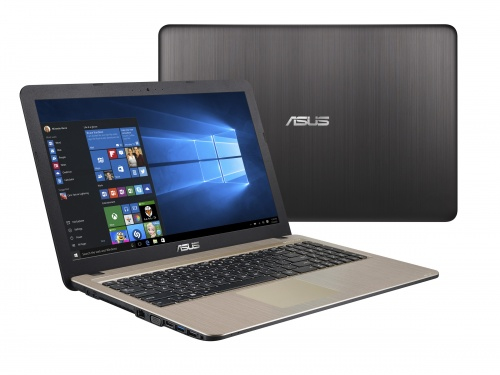

Laptop X540MA-DB22
Model Laptop X540MA-DB22Part no. 90NB0IR1-M00600
109 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Pentium® Silver
- Memory4 GB
- Storage1 TB
- Battery33 Wh
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Pentium® Silver
- Memory
- 4 GB
- Storage
- 1 TB
- Battery
- 33 Wh
- Brand
- ASUS
- Category
- Laptop
- Model
- Laptop X540MA-DB22
- Part number
- 90NB0IR1-M00600
- Also known as
- ASUS Laptop X540MA-DB22 Intel® Pentium® Silver N5000 39.6 cm (15.6") Full HD 4 GB LPDDR4-SDRAM 1 TB Wi-Fi 5 (802.11ac) Windows 10 Black, Gold
Specifications
109 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, Gold |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Silver |
| Processor model | N5000 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1090 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor codename | Gemini Lake |
| Stepping | B0 |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4.8 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x4+1x2, 2x1+1x2+1x2, 4x1 |
| PCI Express slots version | 2.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | LPDDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD speed | 5400 RPM |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 605 |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 18 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3184 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |

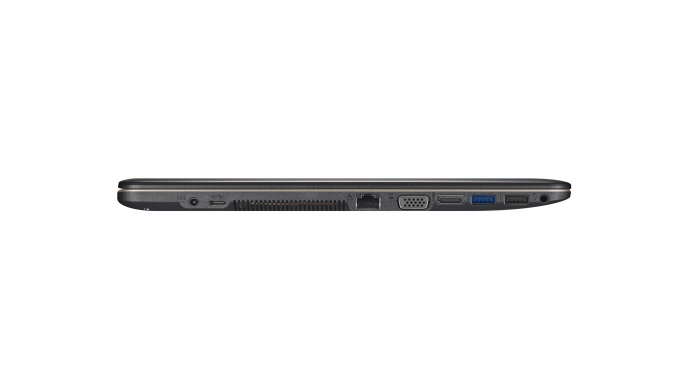

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 6.4 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 128990 |
| Processor code | SR3RZ |
| Processor package size | 25 x 24 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 33 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
| Width | 381 mm |
| Depth | 251.5 mm |
| Height | 27.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
| Warranty card | Yes |
