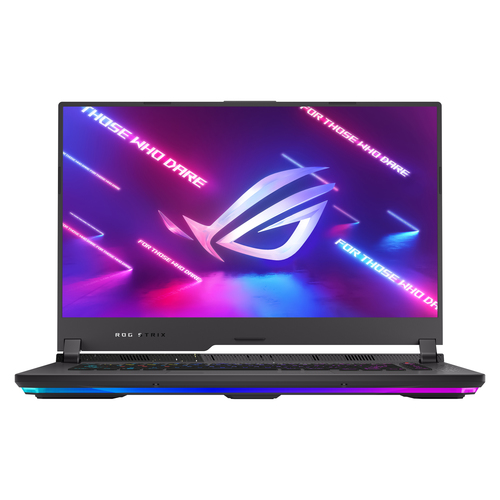

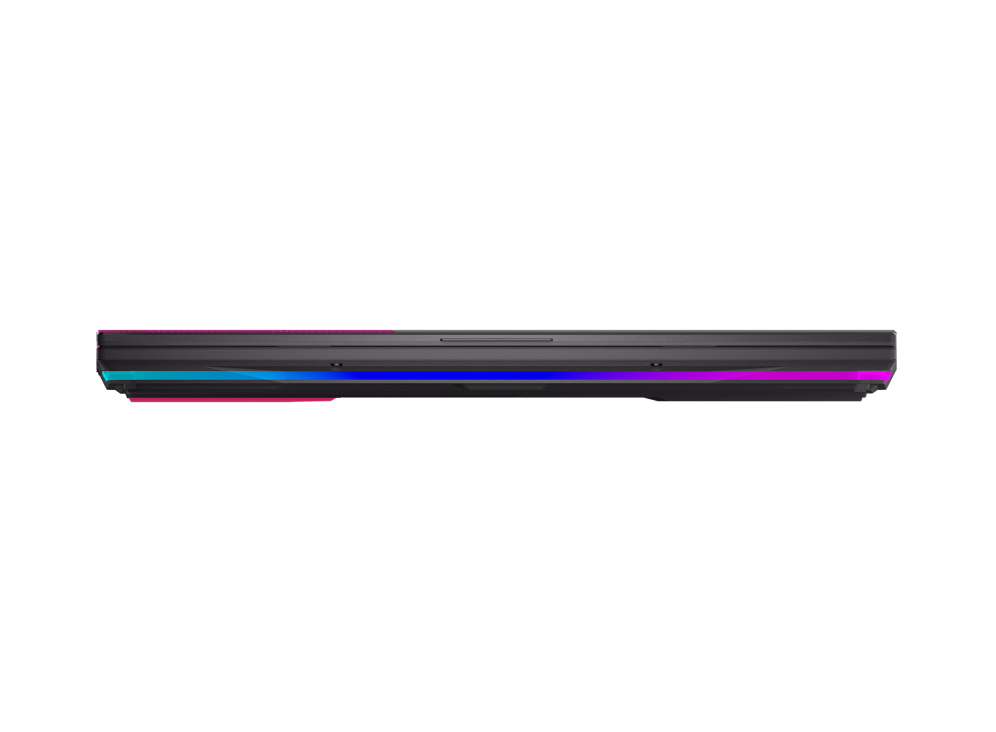

ASUS ROG Strix G15 G513RM-HQ016 AMD Ryzen™ 9 6900HX Laptop

ROG Strix G15 G513RM-HQ016 AMD Ryzen™ 9 6900HX Laptop

39.6 cm (15.6") Wide Quad HD 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Bl

Model G513RM-HQ016Part no. 90NR0847-M00230EAN 195553513364

91 specifications Checked today

Display39.6 cm (15.6")
Resolution2560 x 1440 pixels
ProcessorAMD Ryzen™ 9
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2560 x 1440 pixels
Processor: AMD Ryzen™ 9
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3060

Brand: ASUS
Category: Laptop
Model: G513RM-HQ016
Part number: 90NR0847-M00230
EAN / UPC: 195553513364, 4711081513360
Also known as: ASUS ROG Strix G15 G513RM-HQ016 AMD Ryzen™ 9 6900HX Laptop 39.6 cm (15.6") Wide Quad HD 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Bl

Specifications

91 specifications in 15 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Electro Punk
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2022

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Wide Quad HD
Panel type	IPS
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Display response rise/fall	3 ms
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor generation	AMD Ryzen 6000 Series
Processor model	6900HX
Processor cores	8
Processor boost frequency	4.9 GHz
Processor frequency	3.3 GHz
Processor cache	20 MB
Processor cache type	L2 & L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon 680M

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	354 mm
Depth	259 mm
Height (front)	2.26 cm
Height (rear)	2.72 cm
