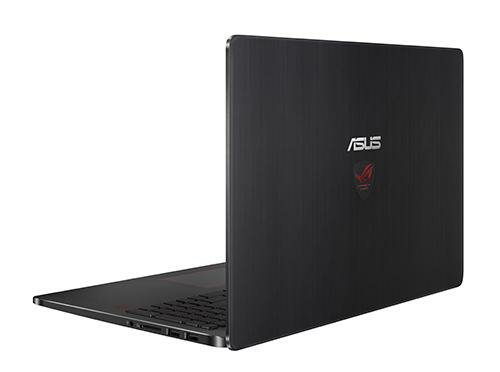

ROG G501JW-FI407R Intel® Core™ i7 i7-4750HQ Laptop

39.6 cm (15.6") 4K Ultra HD 16 GB DDR3L-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 960M Windows 10 Pro Black

Model G501JW-FI407RPart no. 90NB0873-M08910

133 specifications Checked yesterday

Overview

Brand: ASUS
Category: Laptop
Model: G501JW-FI407R
Part number: 90NB0873-M08910
Also known as: ASUS ROG G501JW-FI407R Intel® Core™ i7 i7-4750HQ Laptop 39.6 cm (15.6") 4K Ultra HD 16 GB DDR3L-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 960M Windows 10 Pro Black

133 specifications in 22 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4750HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.2 GHz
Processor frequency	2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1364
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Processor codename	Crystal Well
Bus type	DMI2
Stepping	C0
Thermal Design Power (TDP)	47 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 960M
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® Iris™ Pro Graphics
On-board graphics card model	Intel® Iris™ Pro Graphics 5200
Maximum on-board graphics card memory	2 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0xD26

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Specification	Value
Motherboard chipset	Intel® HM87

Specification	Value
Operating system installed	Windows 10 Pro

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	76087
Processor code	SR18J
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Battery technology	Lithium Polymer (LiPo)

Specification	Value
Cable lock slot	No
Trusted Platform Module (TPM)	Yes

Specification	Value
Compliance certificates	RoHS
Certification	UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, CB, Energy star, RoHS
