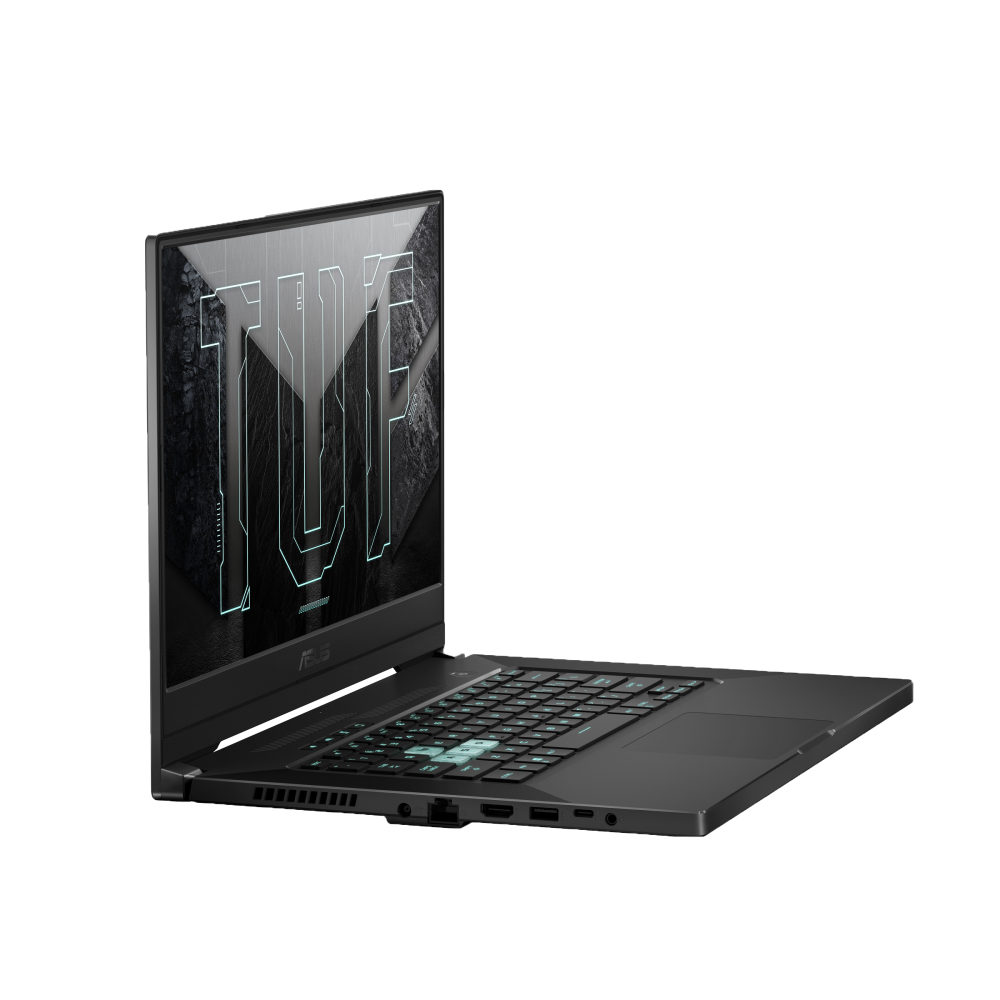

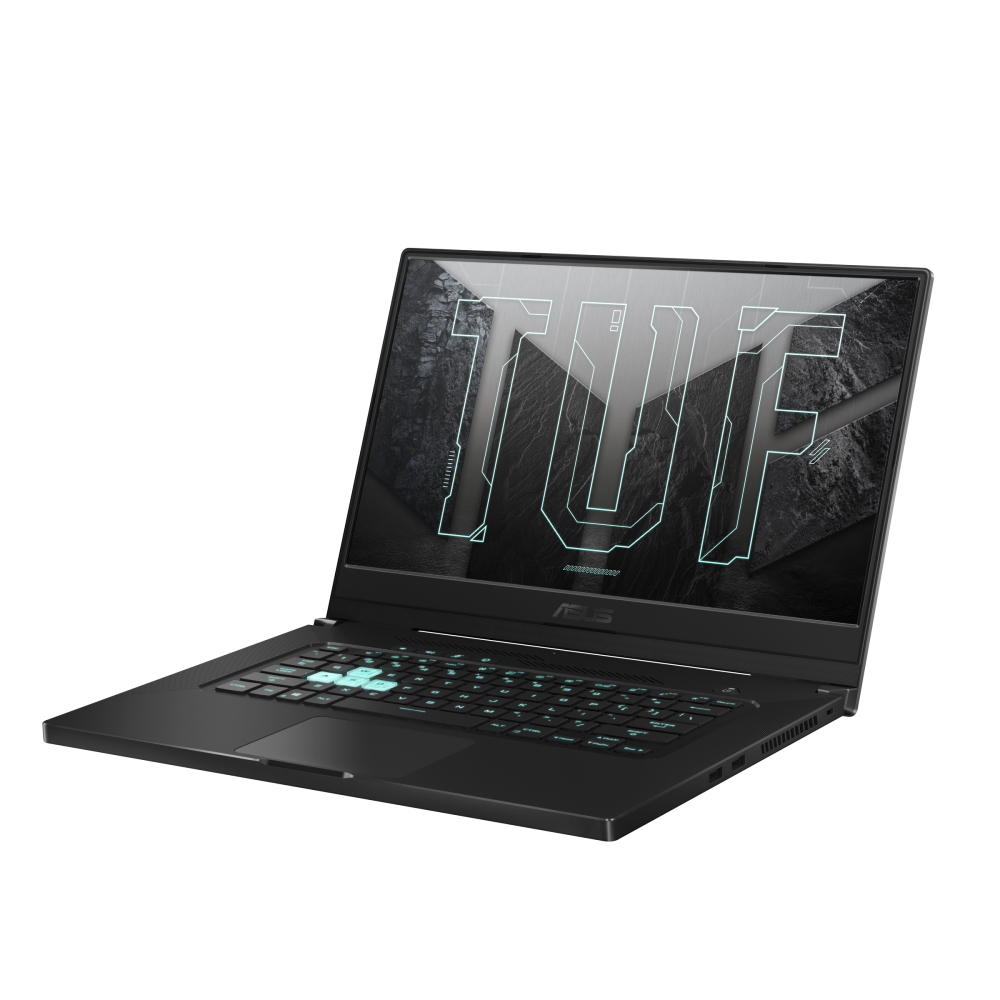

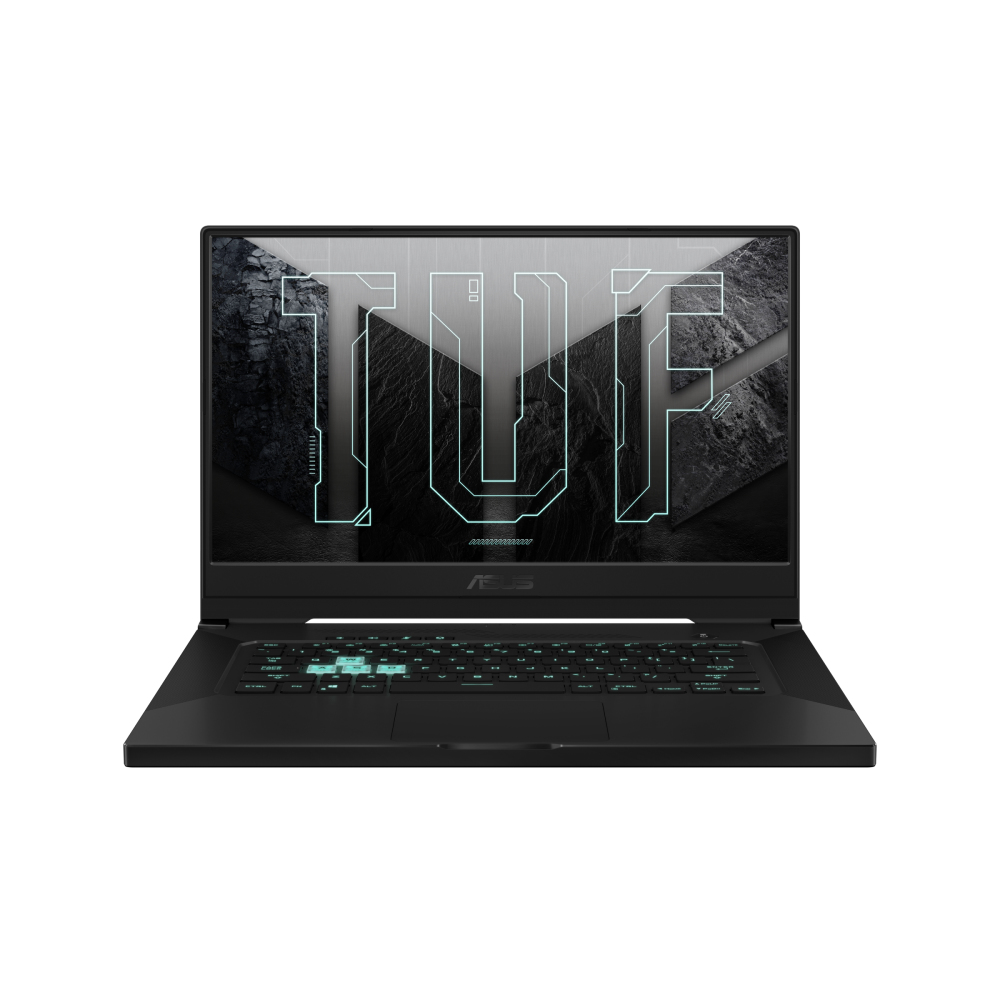

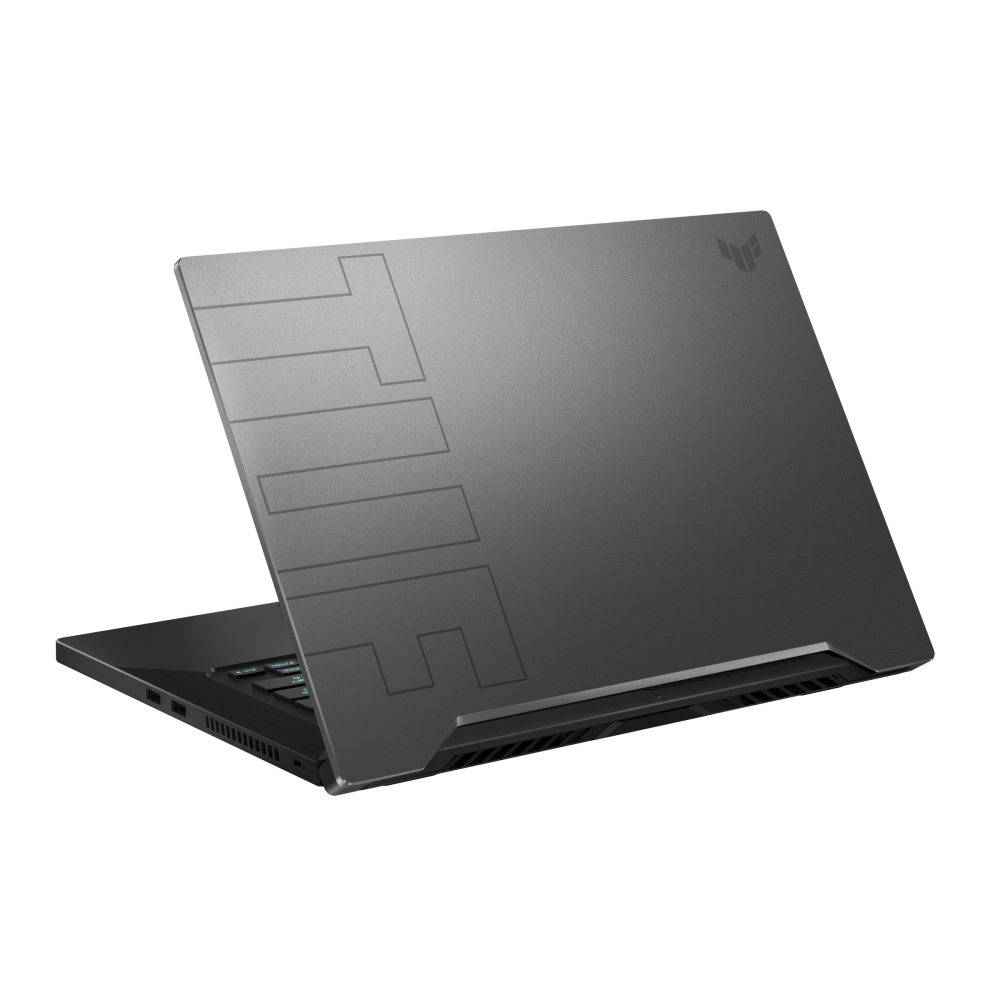

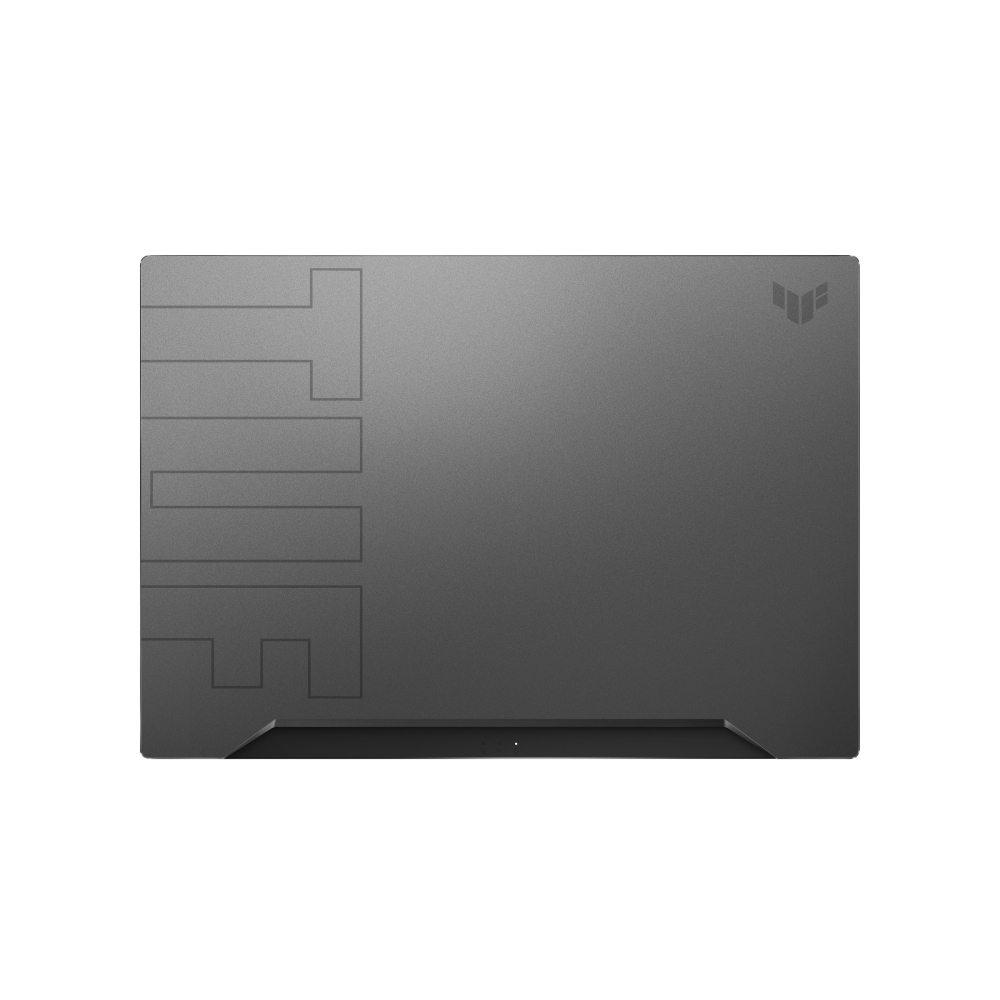

ASUS TUF Dash F15 FX516PM-HN181W Intel® Core™ i7 i7-11370H Laptop

TUF Dash F15 FX516PM-HN181W Intel® Core™ i7 i7-11370H Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax)

Model FX516PM-HN181WPart no. 90NR05X1-M06710EAN 4711081490661

101 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: ASUS
Category: Laptop
Model: FX516PM-HN181W
Part number: 90NR05X1-M06710
EAN / UPC: 4711081490661
Also known as: ASUS TUF Dash F15 FX516PM-HN181W Intel® Core™ i7 i7-11370H Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax)

Specifications

101 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Anti-glare screen	Yes
Colour gamut	62.5%
RGB colour space	sRGB
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-11370H
Processor cores	4
Processor boost frequency	4.8 GHz
Processor frequency	3.3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	3.3 GHz
Configurable TDP-up	35 W
Configurable TDP-down	28 W
Configurable TDP-down frequency	3 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Iris Xe Graphics
CUDA	Yes

Audio

Specification	Value
Audio system	DTS Audio Processing
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home

Processor special features

Specification	Value
CPU configuration (max)	1
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2 kg
Width	360 mm
Depth	252 mm
Height	19.9 mm
