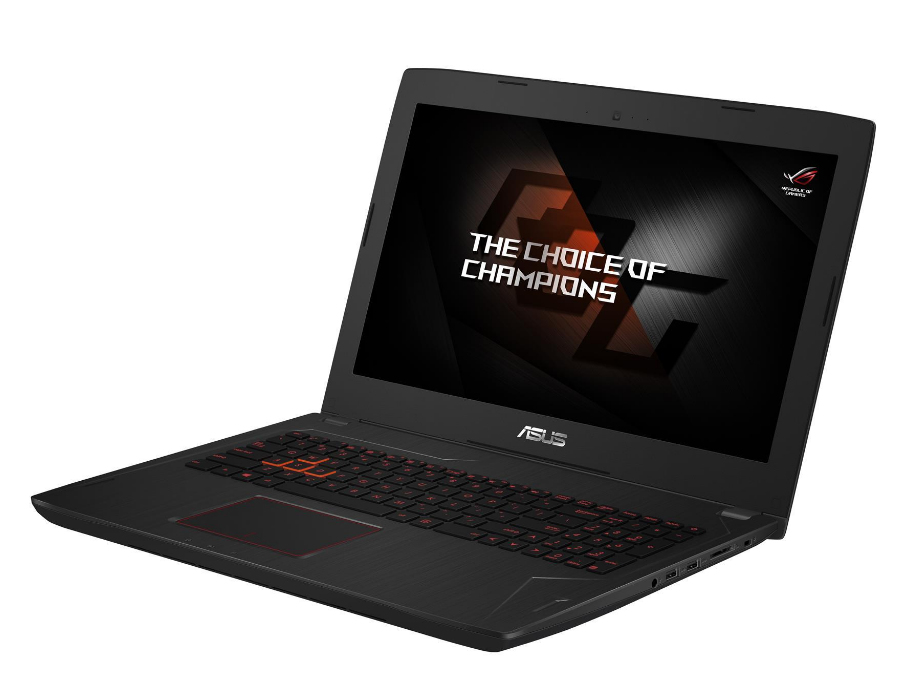

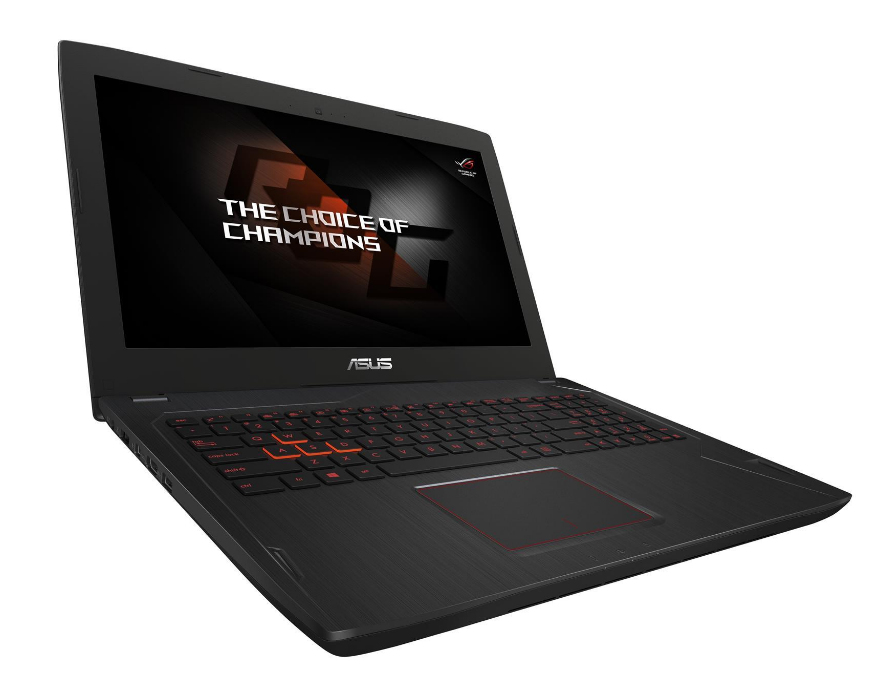

ROG FX502VM-DM115T Intel® Core™ i5 i5-6300HQ Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1060 Windows 10 Black

Model FX502VM-DM115TPart no. 90NB0DR5-M01730EAN 4712900542172

169 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNVIDIA® GeForce® GTX 1060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce® GTX 1060

Brand: ASUS
Category: Laptop
Model: FX502VM-DM115T
Part number: 90NB0DR5-M01730
EAN / UPC: 4712900542172
Also known as: ASUS ROG FX502VM-DM115T Intel® Core™ i5 i5-6300HQ Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1060 Windows 10 Black

Specifications

169 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6300HQ
Processor cores	4
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.3 GHz
System bus rate	8 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor codename	Skylake
Bus type	DMI3
Stepping	R0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1060
Discrete graphics card memory	3 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191B

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88959
Processor code	SR2FP
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	64 Wh

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9.5 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, HDD, User

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, WEEE
