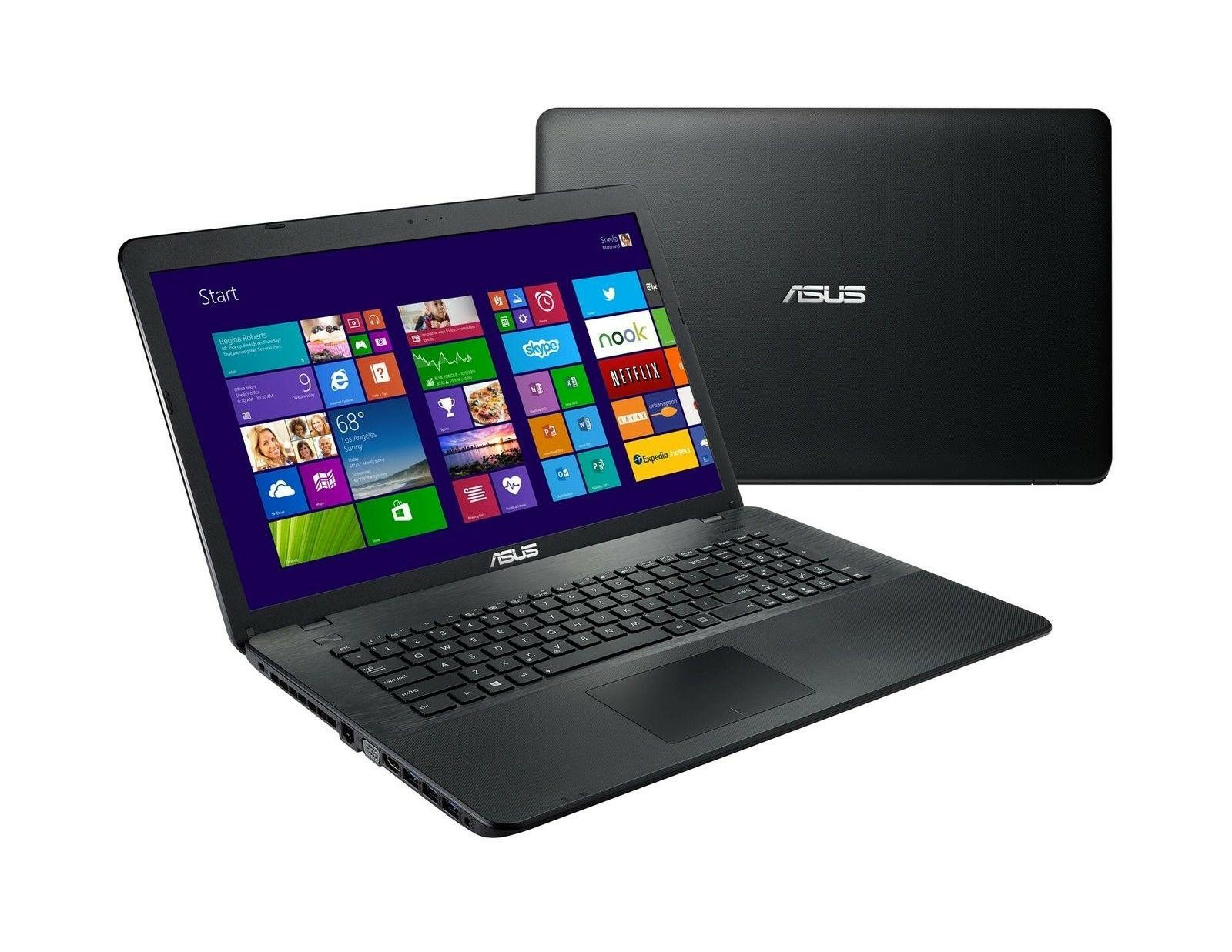

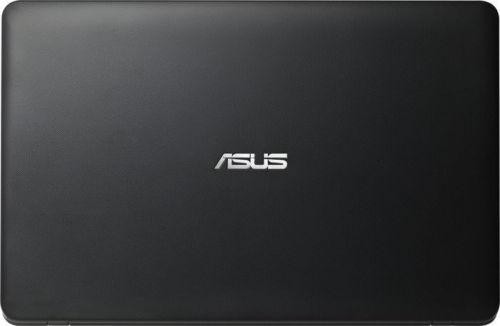

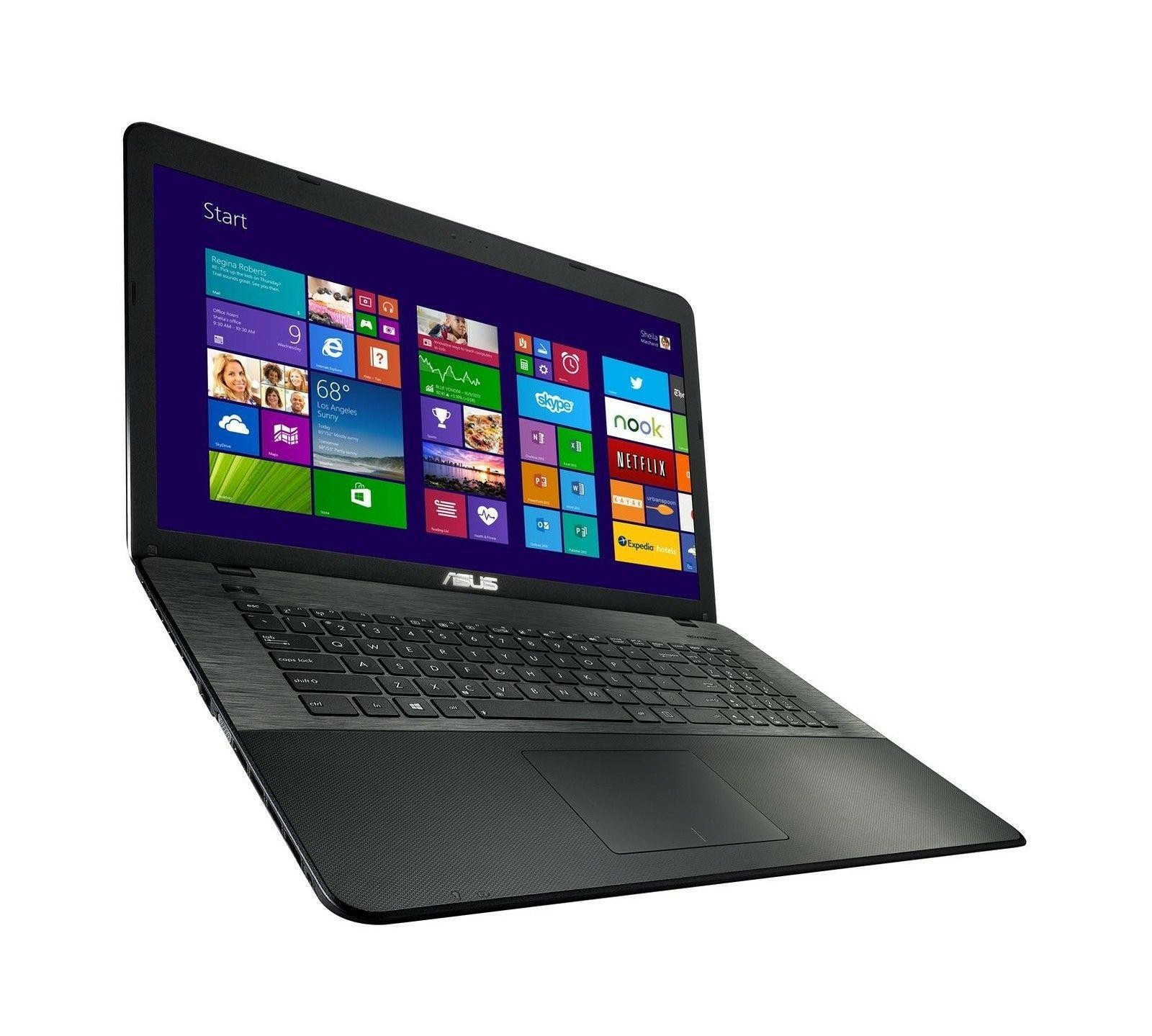

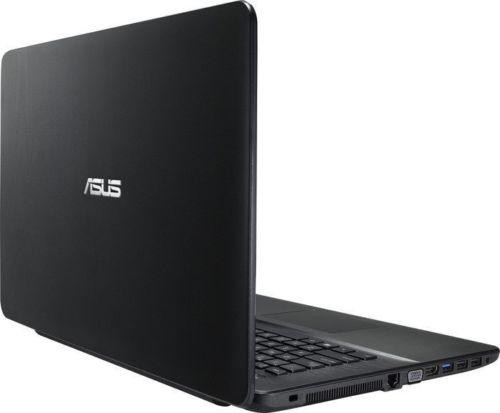

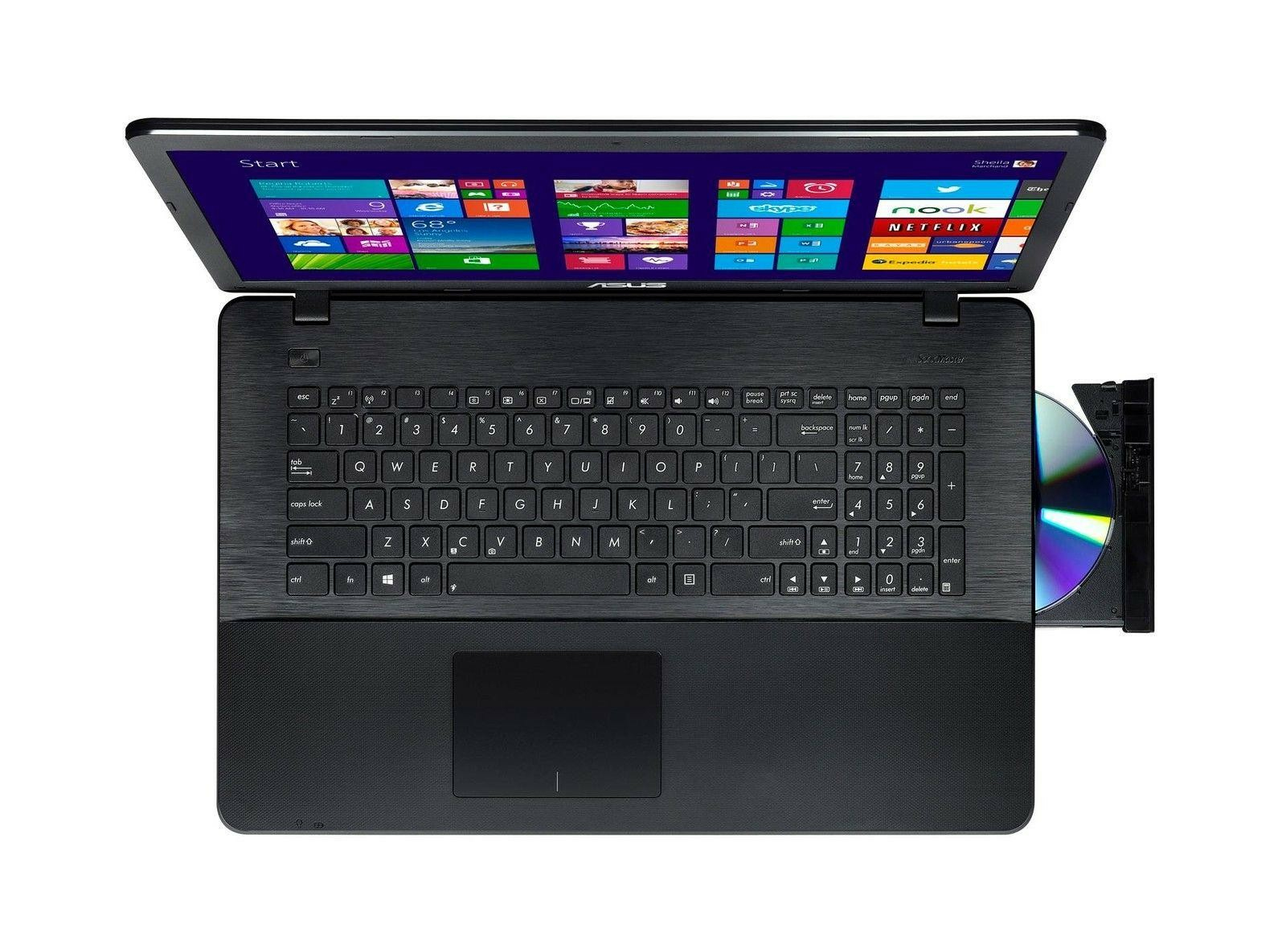

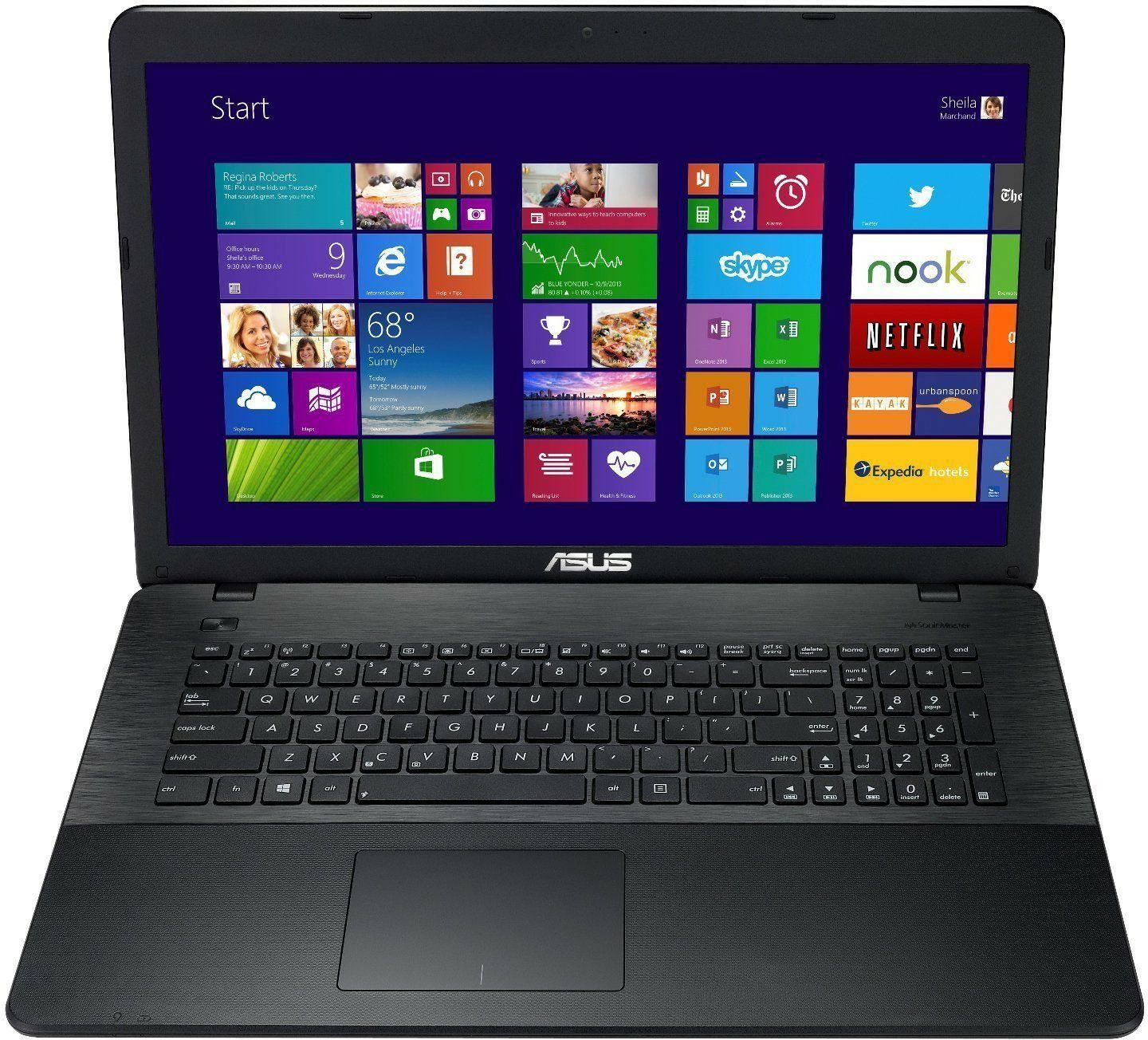

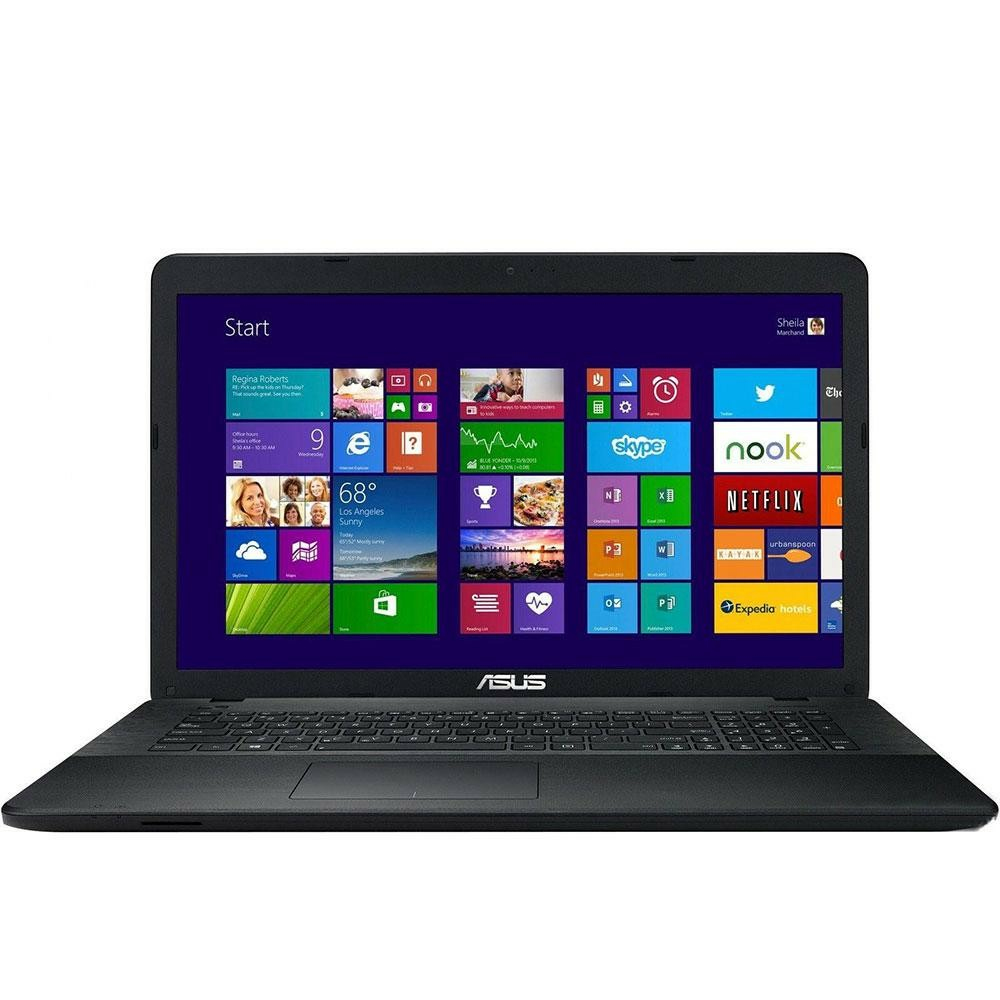

F751MA-TY281D Intel® Celeron® N2840 Laptop

43.9 cm (17.3") HD+ 8 GB DDR3L-SDRAM 500 GB HDD FreeDOS Black

Model F751MA-TY281DPart no. 90NB0611-M04330EAN 4712900082272

121 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: F751MA-TY281D
Part number: 90NB0611-M04330
EAN / UPC: 4712900082272
Also known as: ASUS F751MA-TY281D Intel® Celeron® N2840 Laptop 43.9 cm (17.3") HD+ 8 GB DDR3L-SDRAM 500 GB HDD FreeDOS Black

121 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2840
Processor cores	2
Processor threads	2
Processor boost frequency	2.58 GHz
Processor frequency	2.16 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 1170
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
Stepping	C0
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	100 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	792 MHz
On-board graphics card dynamic frequency (max)	792 MHz

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No
Total number of SATA connectors	2

Specification	Value
Motherboard chipset	Intel SoC

Specification	Value
Operating system installed	FreeDOS

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	82103
Processor code	SR1YJ
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
