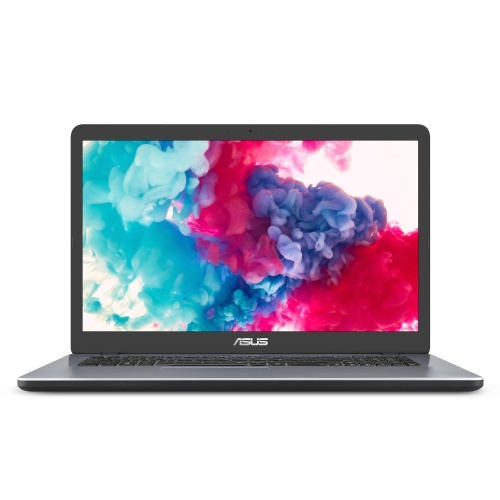

F705MA-DS21Q Laptop

Model F705MA-DS21Q LaptopPart no. 90NB0IF2-M00210

111 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: F705MA-DS21Q Laptop
Part number: 90NB0IF2-M00210
Also known as: ASUS Vivobook F705MA-DS21Q Laptop Intel® Pentium® Silver N5000 43.9 cm (17.3") HD+ 8 GB DDR4-SDRAM 1 TB Wi-Fi 5 (802.11ac) Windows 10 Black, Stainless steel

111 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® Silver
Processor model	N5000
Processor cores	4
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	1.1 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1090
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor codename	Gemini Lake
Stepping	B0
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4.8 W
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express configurations	1x4+1x2, 2x1+1x2+1x2, 4x1
PCI Express slots version	2.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 605
Maximum on-board graphics card memory	8 GB
Number of execution units	18
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	750 MHz
On-board graphics card dynamic frequency (max)	750 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3184

Specification	Value
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value

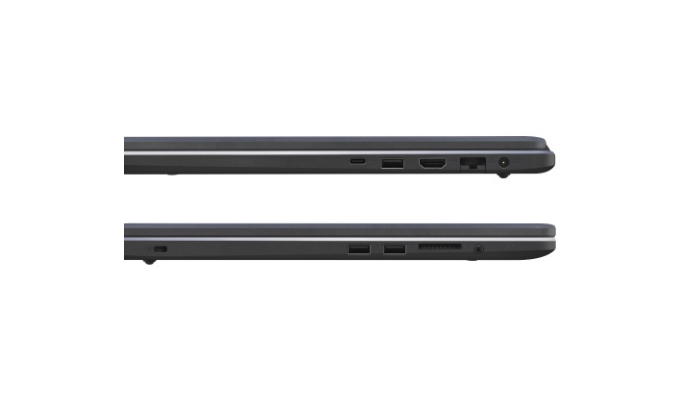

USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	128990
Processor code	SR3RZ
Processor package size	25 x 24 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes
