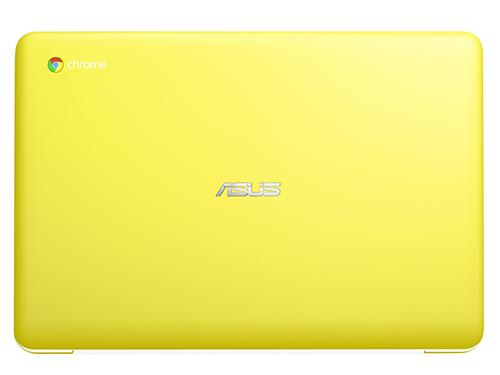

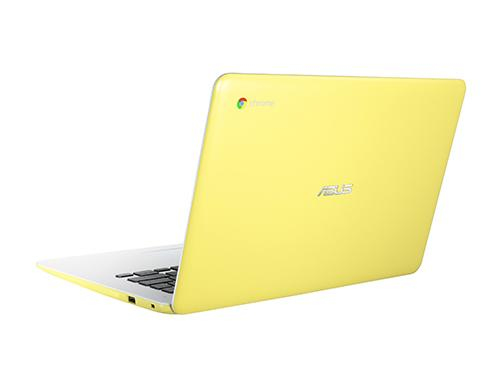

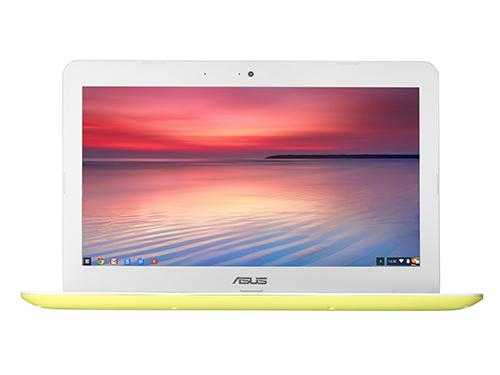

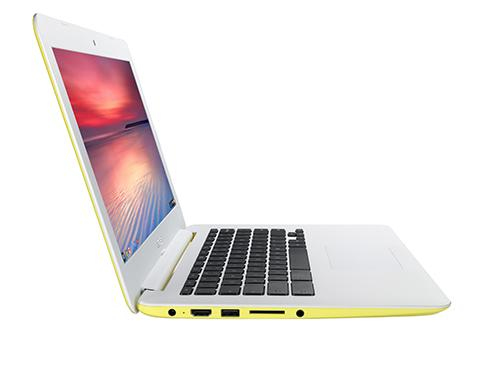

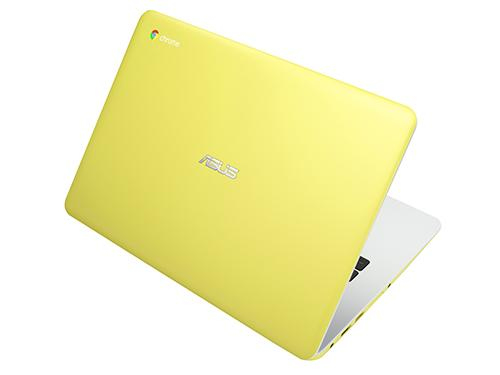

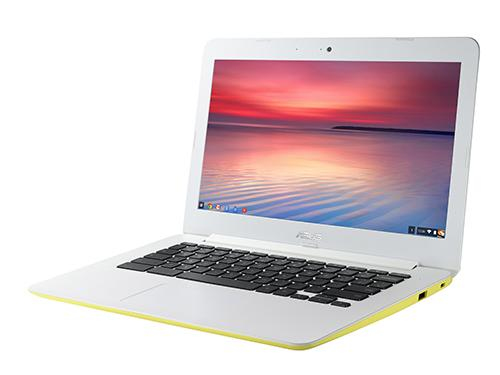

Chromebook C300MA-DH02-YL Intel® Celeron® N2840

33.8 cm (13.3") 4 GB DDR3L-SDRAM 16 GB Flash Wi-Fi 4 (802.11n) ChromeOS White, Yellow

Model C300MA-DH02-YLPart no. 90NB05W5-M01230EAN 889349188699

140 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: C300MA-DH02-YL
Part number: 90NB05W5-M01230
EAN / UPC: 889349188699
Also known as: ASUS Chromebook C300MA-DH02-YL Intel® Celeron® N2840 33.8 cm (13.3") 4 GB DDR3L-SDRAM 16 GB Flash Wi-Fi 4 (802.11n) ChromeOS White, Yellow

140 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2840
Processor cores	2
Processor threads	2
Processor boost frequency	2.58 GHz
Processor frequency	2.16 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 1170
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	100 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	792 MHz
On-board graphics card dynamic frequency (max)	792 MHz

Specification	Value
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
LightScribe	No

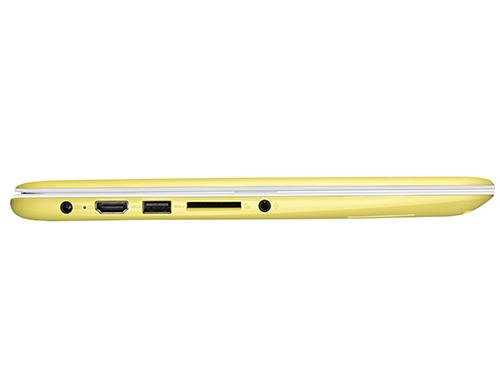

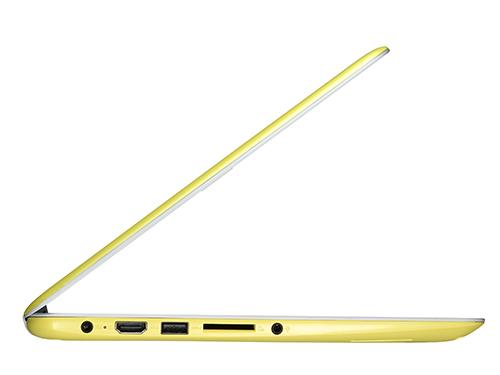

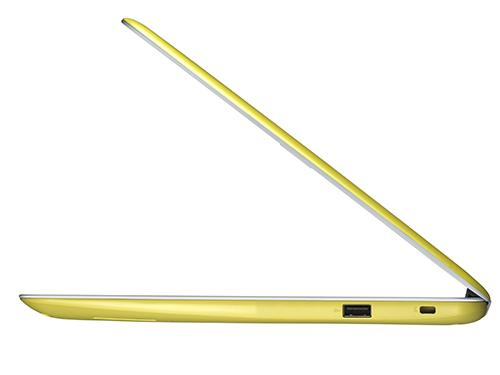

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Total number of SATA connectors	2

Specification	Value
Operating system installed	ChromeOS

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	No
Intel® Turbo Boost Technology	No
Processor ARK ID	82103
Processor code	SR1YJ
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes
