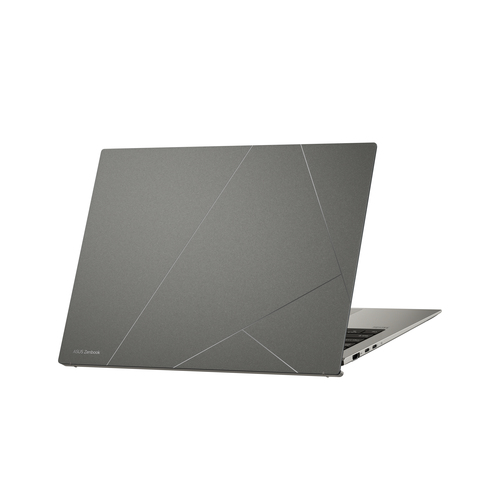

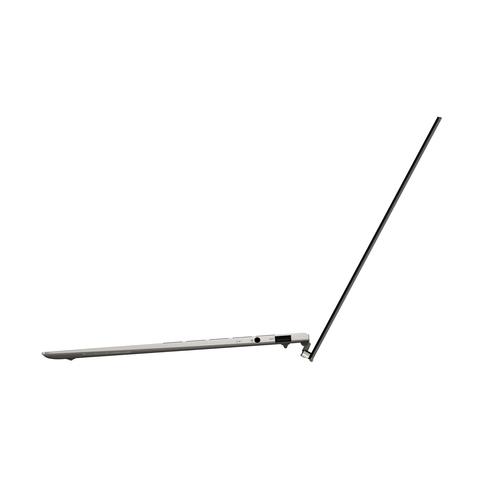

ASUS Zenbook S13 OLED BX5304MA-NQ125X Intel Core Ultra 7 155U Laptop

Zenbook S13 OLED BX5304MA-NQ125X Intel Core Ultra 7 155U Laptop

33.8 cm (13.3") WQXGA+ 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Model BX5304MA-NQ125XPart no. 90NB12V2-M00700EAN 4711387426159

94 specifications Checked today

Display33.8 cm (13.3")
Resolution2880 x 1800 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 2880 x 1800 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: BX5304MA-NQ125X
Part number: 90NB12V2-M00700
EAN / UPC: 4711387426159
Also known as: ASUS Zenbook S13 OLED BX5304MA-NQ125X Intel Core Ultra 7 155U Laptop 33.8 cm (13.3") WQXGA+ 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Specifications

94 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Basalt Grey
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	WQXGA+
Panel type	OLED
Native aspect ratio	16:10
Display surface	Gloss
Maximum refresh rate	90 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155U
Processor cores	12
Processor boost frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	57 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	63 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	1 kg
Width	296.2 mm
Depth	216.3 mm
Height (front)	1.09 cm
Height (rear)	1.18 cm

Packaging content

Specification	Value
Bag included	Yes
