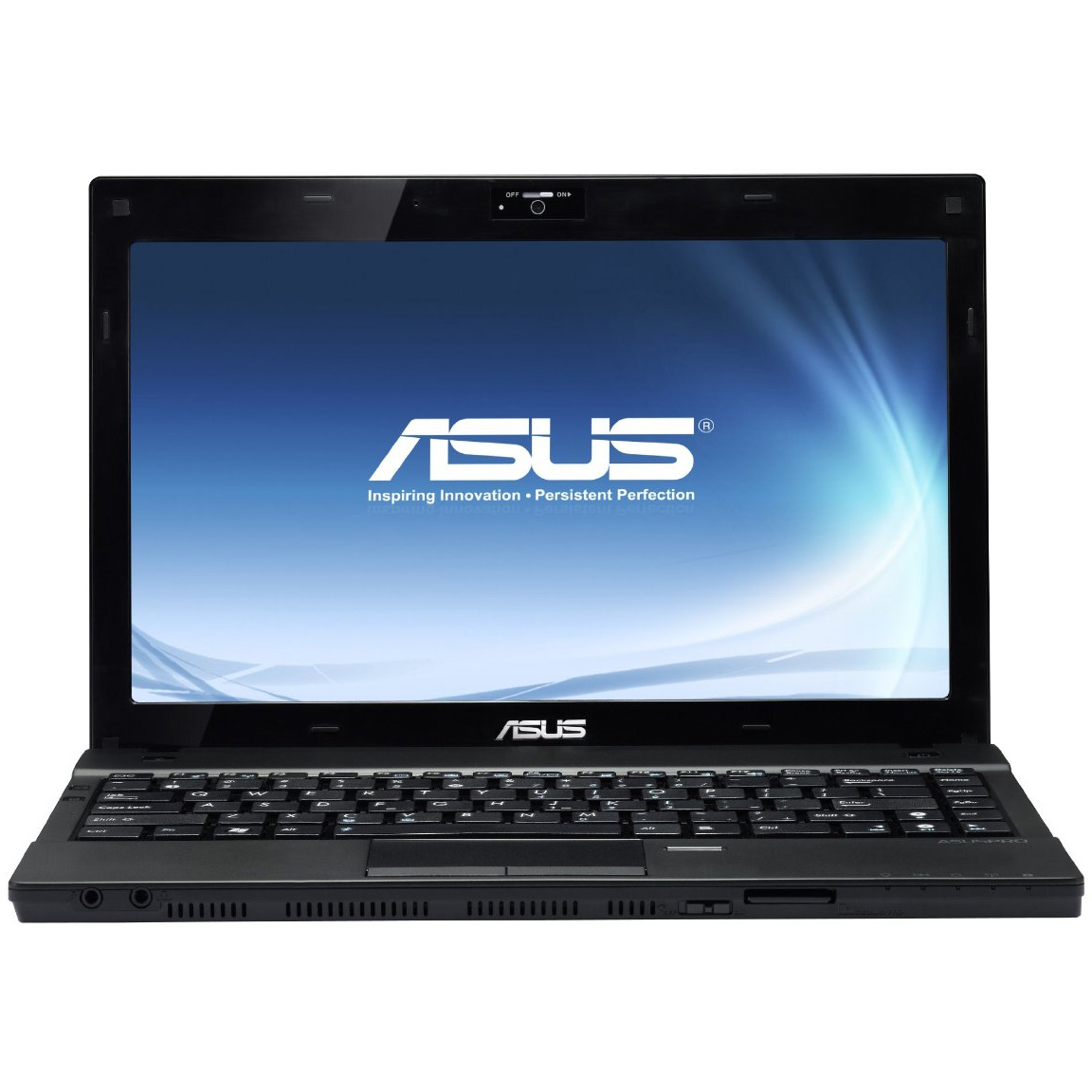

ASUSPRO B23E-80002X laptop Intel® Core™ i3 i3-2330M
31.8 cm (12.5") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional Black QWERTY
Model B23E-80002X
145 specifications Checked today
- Display31.8 cm (12.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i3
- Memory2 GB
- Storage320 GB
- GraphicsNot available
Overview
- Display
- 31.8 cm (12.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i3
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- B23E-80002X
- Part number
- B23E-80002X
- Also known as
- ASUSPRO B23E-80002X laptop Intel® Core™ i3 i3-2330M 31.8 cm (12.5") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional Black QWERTY
Specifications
145 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 31.8 cm (12.5") |
| Display resolution | 1366 x 768 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor model | i3-2330M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.2 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1023 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-2300 Mobile Series |
| Processor codename | Sandy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | J1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 85C ; 100C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| CPU multiplier (bus/core ratio) | 22 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Storage media | HDD |
| HDD interface | SATA |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Graphics card family | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 3000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x116 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 2 MP |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Cabling technology | 10/100/1000Base-T(X) |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA/USB 2.0 ports quantity | 1 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® QM67 Express |
Keyboard
| Specification | Value |
|---|---|
| Numeric keypad | No |
| Keyboard layout | QWERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 53434 |
| Processor code | SR04J |
| Processor package size | 37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 3 |
| Battery capacity | 4400 mAh |
| Battery capacity | 48 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 75 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.95 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS, User |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.55 kg |
| Width | 305 mm |
| Depth | 206 mm |
| Height | 28 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Intel segment tagging | Enterprise, Professional |
