A8JP-4S016 laptop Intel® Core™2 Duo T5600
35.6 cm (14") 1 GB DDR2-SDRAM 120 GB AMD Mobility Radeon X1700
Model A8JP-4S016
122 specifications Checked today
- Display35.6 cm (14")
- Resolution1440 x 900 pixels
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage120 GB
- GraphicsAMD Mobility Radeon X1700
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1440 x 900 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 120 GB
- Graphics
- AMD Mobility Radeon X1700
- Brand
- ASUS
- Category
- Laptop
- Model
- A8JP-4S016
- Part number
- A8JP-4S016
- Also known as
- ASUS A8JP-4S016 laptop Intel® Core™2 Duo T5600 35.6 cm (14") 1 GB DDR2-SDRAM 120 GB AMD Mobility Radeon X1700
Specifications
122 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1440 x 900 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | T5600 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.83 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 667 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo T5000 Series |
| Processor codename | Merom |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | B2 |
| Thermal Design Power (TDP) | 34 W |
| Tjunction | 100 °C |
| Processor core voltage (AC) | 1.0375 - 1.30 V |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 11 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Mobility Radeon X1700 |
| Maximum graphics card memory | 0.256 GB |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 0.3 MP |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, WLAN |
| Wireless technology | IEEE 802.11a/b/g |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |

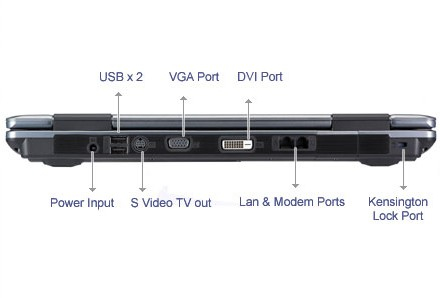

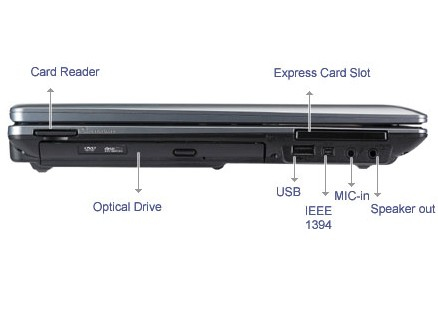

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | Yes |
| TV-out type | S-Video |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| USB 1.1 ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945PM Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Bundled software | ASUSDVD XP 6.0 Power Director 3.0 DE Medi@Show 2.0 SE Adobe Acrobat Reader 7.0 NERO Express 6.0 ASUS |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 27254 |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 90 W |
| AC adapter input voltage | 100/240 V |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
| HDD user password | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.39 kg |
| Width | 245 mm |
| Depth | 335 mm |
| Height | 34.8 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | V.92 |
