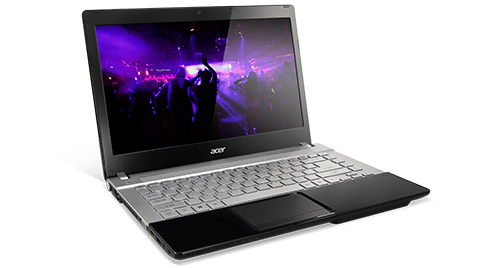

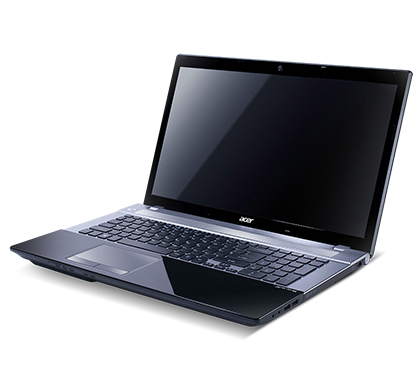

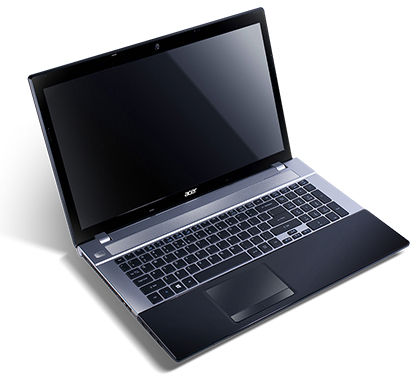

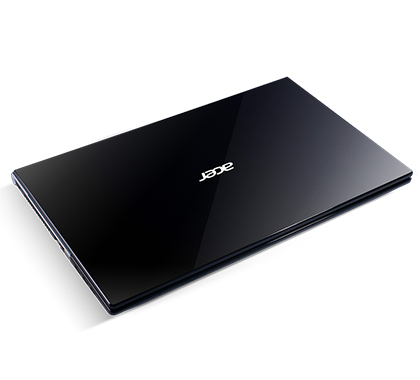

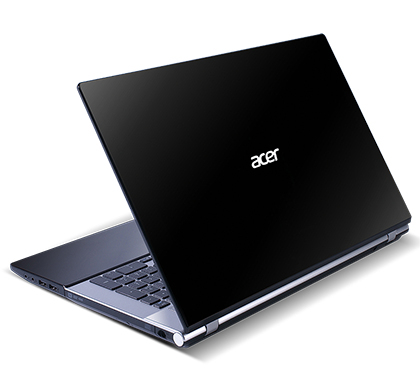

Aspire V3-731-B9606G50Makk Intel® Pentium® B960
43.9 cm (17.3") HD+ 6 GB DDR3-SDRAM 500 GB HDD Windows 8 Black
Model V3-731-B9606G50MakkPart no. NX.M31EK.002EAN 886541753892
157 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1600 x 900 pixels
- ProcessorIntel® Pentium®
- Memory6 GB
- Storage500 GB
- Battery4400 mAh
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Pentium®
- Memory
- 6 GB
- Storage
- 500 GB
- Battery
- 4400 mAh
- Brand
- Acer
- Category
- Laptop
- Model
- V3-731-B9606G50Makk
- Part number
- NX.M31EK.002
- EAN / UPC
- 886541753892, 4712196367183
- Also known as
- Acer Aspire V3-731-B9606G50Makk Intel® Pentium® B960 43.9 cm (17.3") HD+ 6 GB DDR3-SDRAM 500 GB HDD Windows 8 Black
Specifications
157 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1600 x 900 pixels |
| HD type | HD+ |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display diagonal (metric) | 44 cm |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | B960 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.2 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 2 MB |
| Processor cache type | L3 |
| Processor socket | Socket 988 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium B900 Series for Mobile |
| Processor codename | Sandy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | Q0 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 85 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| CPU multiplier (bus/core ratio) | 22 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots (available) | 2 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Number of SSDs installed | 0 |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Swivel webcam | No |
| Rear camera | No |
Optical drive
| Specification | Value |
|---|---|
| Disc types supported | DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-RW |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | LAN, WLAN |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Cabling technology | 10/100/1000Base-T(X) |
| Integrated 4G WiMAX | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Micro-USB 2.0 ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Composite video in | 0 |
| Composite video out | 0 |
| Mini-USB 2.0 ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
| S-Video port | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| USB 1.1 ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM77 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 59836 |
| Processor code | SR07V |
| Processor package size | 37.5x37.5 (rPGA988B) |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 4400 mAh |
| Battery life (max) | 4 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | No |
| Password protection type | HDD, Supervisor, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
| Width | 415 mm |
| Depth | 275 mm |
| Height | 34.7 mm |
Video
| Specification | Value |
|---|---|
| HD-Ready | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Number of products included | 1 pc(s) |
| TV tuner integrated | No |
| Supplied AC adapter type | AC |
