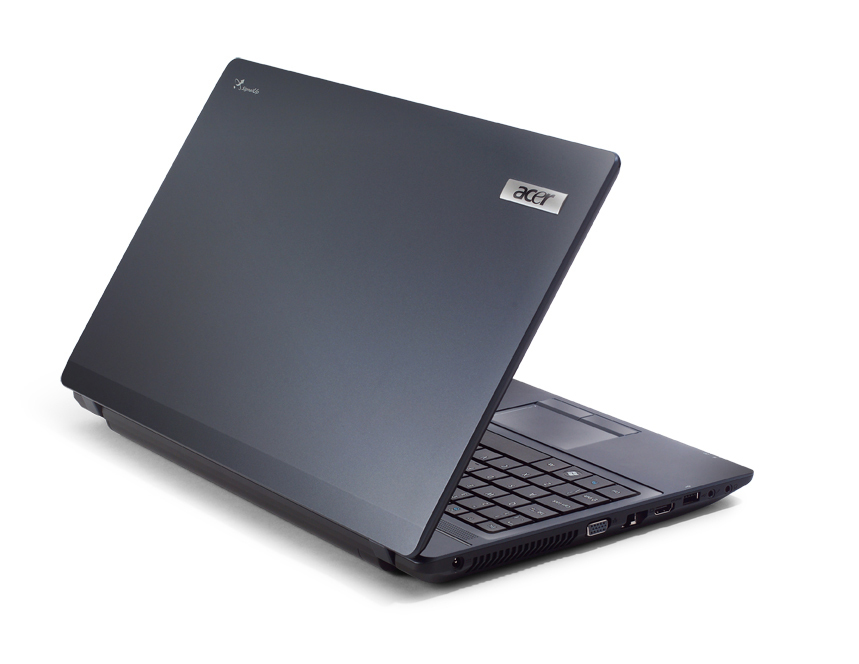

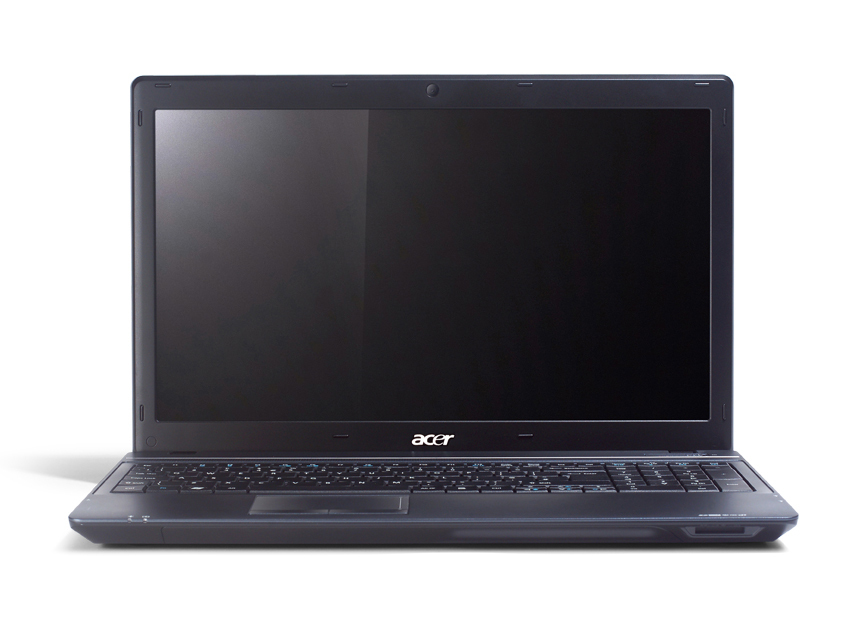

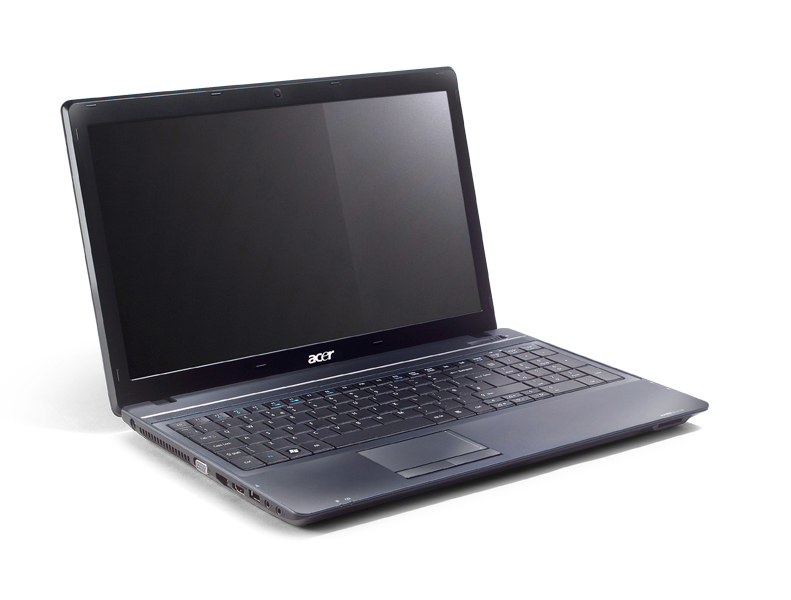

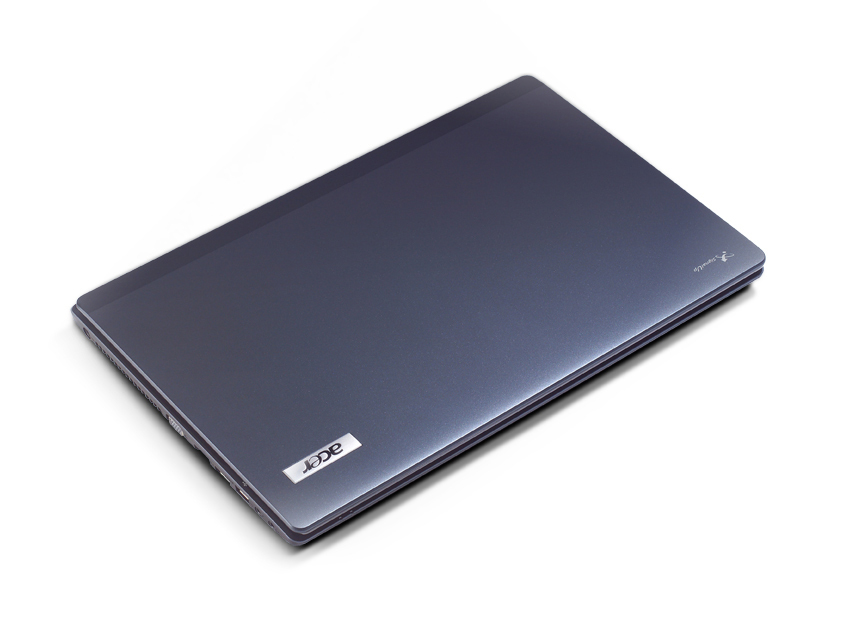

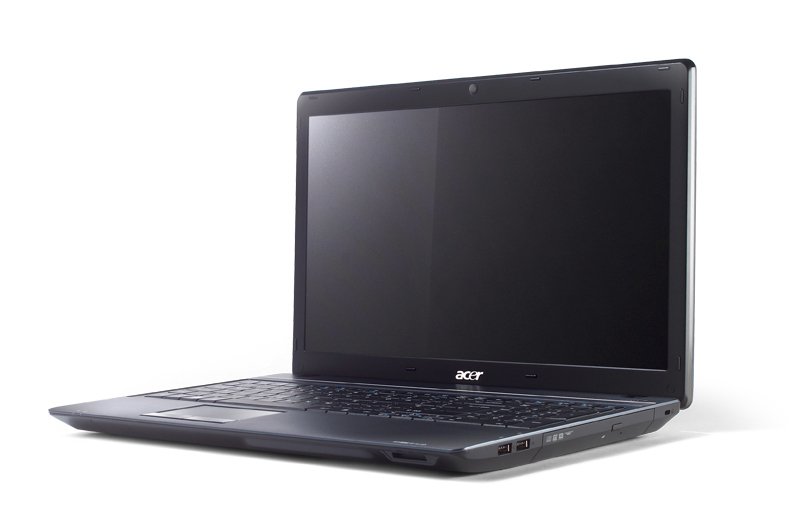

TravelMate 5740Z-P602G25Mn

Model TravelMate 5740Z-P602G25MnPart no. LX.TY302.003EAN 4712842893073

120 specifications Checked today

Overview

Brand: Acer
Category: Laptop
Model: TravelMate 5740Z-P602G25Mn
Part numbers: LX.TY302.003, LX.TY302.061, LX.TY302.062
EAN / UPC: 4712842893073, 4717276063191, 4712842893066
Also known as: Acer TravelMate 5740Z-P602G25Mn Intel® Pentium® P6000 39.6 cm (15.6") 2 GB DDR3-SDRAM 250 GB Windows 7 Home Premium Black

120 specifications in 18 groups

Specification	Value
Product colour	Black

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	P6000
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium P6000 Series for Mobile
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	14
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card memory	0.125 GB
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Specification	Value
Front camera resolution (numeric)	1.3 MP

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
TV-in port	No
TV-out	No

Specification	Value
Pointing device	Touchpad

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49058
Processor code	SLBWB
Processor package size	37.5x37.5 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
