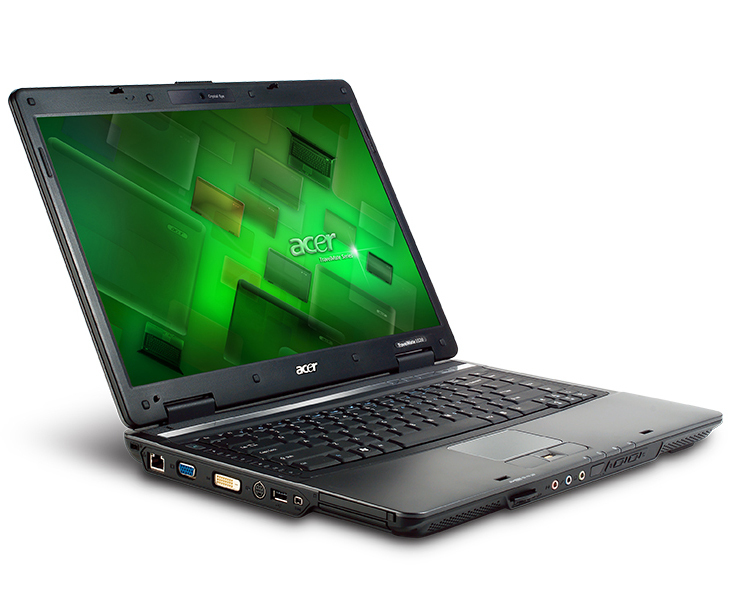

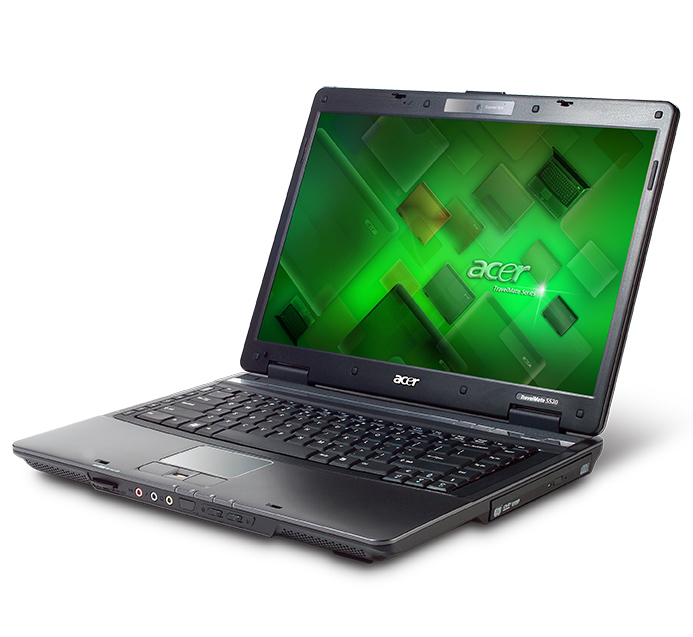

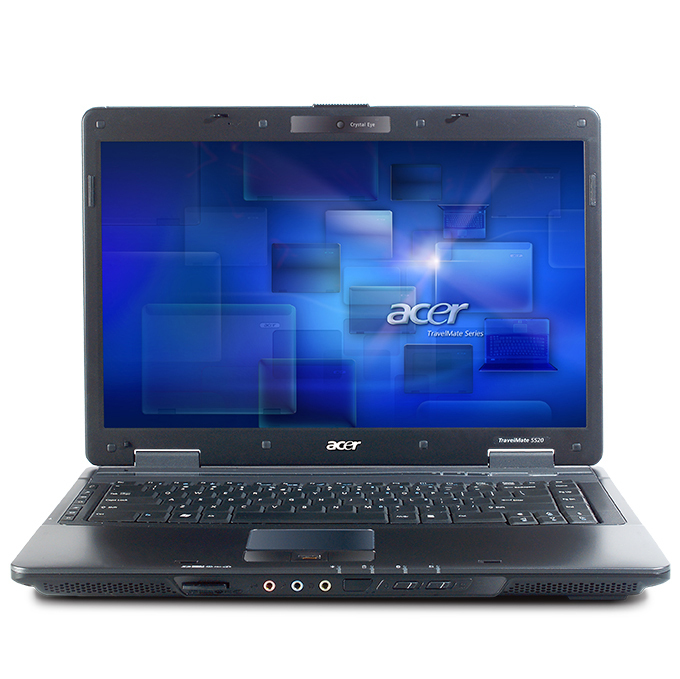

TravelMate 5520-502G16
Model TravelMate 5520-502G16Part no. LX.TKS0Z.003EAN 4718235783877
65 specifications Checked today
- Display39.1 cm (15.4")
- Resolution1280 x 800 pixels
- ProcessorTL-60
- Memory2 GB
- Storage160 GB
- GraphicsAMD Radeon Xpress 1250
Overview
- Display
- 39.1 cm (15.4")
- Resolution
- 1280 x 800 pixels
- Processor
- TL-60
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- AMD Radeon Xpress 1250
- Brand
- Acer
- Category
- Laptop
- Model
- TravelMate 5520-502G16
- Part numbers
- LX.TKS0Z.003, LX.TKS0Z.004
- EAN / UPC
- 4718235783877, 4718235027438
- Also known as
- Acer TravelMate 5520-502G16 TL-60 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB AMD Radeon Xpress 1250 Windows Vista Business
Specifications
65 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.1 cm (15.4") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor model | TL-60 |
| Processor frequency | 2 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon Xpress 1250 |
| Maximum graphics card memory | 0.384 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | MS-Sound |
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wireless technology | IEEE 802.11b/g |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 1 |
| CardBus PCMCIA slot type | Type II |
| SmartCard slot | Yes |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | Yes |
| TV-out type | S-Video |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Trial software | McAfee Internet Security Suite |
| Bundled software | Acer Empowering Technologie (Acer eNet, ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings Management), Acer GridVista, Acer Launch Manager, Adobe Reader, CyberLink PowerDVD, Microsoft Office Ready 2007, NTI CD Maker, NTI Shadow |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.88 kg |
| Width | 360 mm |
| Depth | 267 mm |
| Height (front) | 3.03 cm |
| Height (rear) | 4.3 cm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Wake-on-LAN ready | Yes |
| Wake-on-Ring ready | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | ITU V.92 |
| Supplied AC adapter type | AC |
