Acer TMX414-51 u5-226v 16GB 512GB W11P

TMX414-51 u5-226v 16GB 512GB W11P

Model TMX414-51 u5-226v 16GB 512GB W11PPart no. NX.BPVEK.002EAN 4711474692931

102 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: TMX414-51 u5-226v 16GB 512GB W11P
Part number: NX.BPVEK.002
EAN / UPC: 4711474692931
Also known as: Acer TravelMate X4 14 AI Copilot+ PC (TMX414-51) - Intel Core Ultra 5, 16GB RAM, 512GB SSD, 120Hz 14" WUXGA display, Windows 11

Specifications

102 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Certified refurbished	No

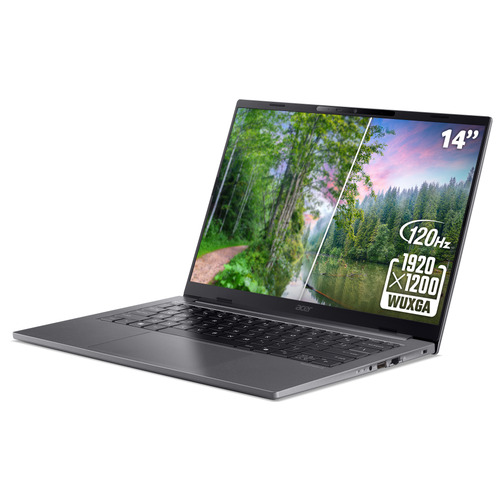

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Display technology marketing name	ComfyView
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	120 Hz

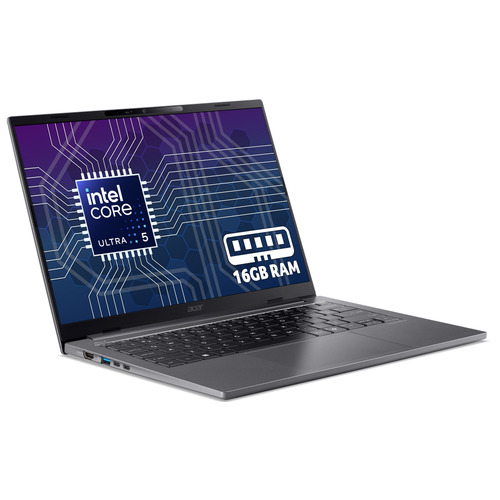

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor model	226V
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Processor frequency	2.1 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Low Power Efficient-core Base Frequency	2.1 MHz
Processor cache	8 MB
Processor cache type	Smart Cache
Maximum turbo power	37 W
Processor base power	17 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Arc Graphics 130V

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.4
MIMO	Yes
MIMO type	Multi User MIMO

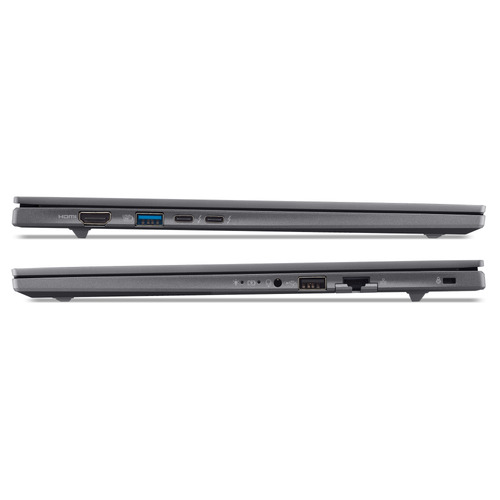

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Charging port type	USB Type-C
USB Type-C DisplayPort Alternate Mode	Yes

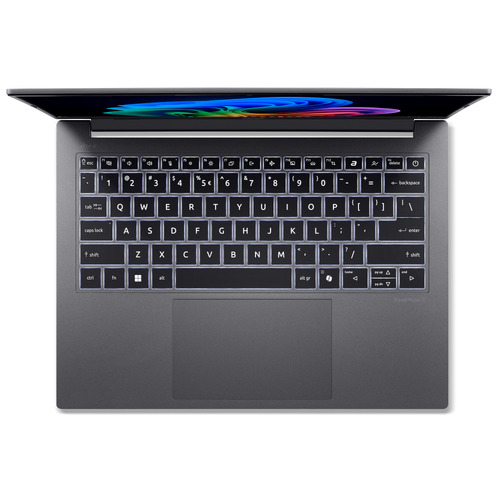

Keyboard

Specification	Value
Pointing device	Trackpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	UK International

Software

Specification	Value
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	53 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	100 W
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO

Weight & dimensions

Specification	Value
Weight	1.27 kg
Width	312 mm
Depth	225.9 mm
Height	15.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
