Acer TMP414RN-54 u5-125u 16GB 512GB W11P

TMP414RN-54 u5-125u 16GB 512GB W11P

Model TMP414RN-54 u5-125u 16GB 512GB W11PPart no. NX.B7WEK.00EEAN 4711474654588

103 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: TMP414RN-54 u5-125u 16GB 512GB W11P
Part number: NX.B7WEK.00E
EAN / UPC: 4711474654588
Also known as: Acer TravelMate P4 Spin 14 convertible laptop (TMP414RN-54) - Intel Core Ultra 5, 16GB RAM, 512GB SSD, 14" WUXGA touchscreen, Windows 11

Specifications

103 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Fold-back screen)
Certified refurbished	No
Stylus pen support	Yes
Built-in stylus pen storage	Yes

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Display technology marketing name	ComfyView
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor model	125U
Processor cores	12
Processor threads	14
Processor boost frequency	4.3 GHz
Processor frequency	1.3 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.3 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Low Power Efficient-core Max Turbo Frequency	2.1 GHz
Performance-core base frequency	1.3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	57 W
Processor base power	15 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	No
Neural processor unit (NPU)	Intel AI Boost

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	60 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g
Antenna type	2x2
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.3
MIMO	Yes
MIMO type	Multi User MIMO

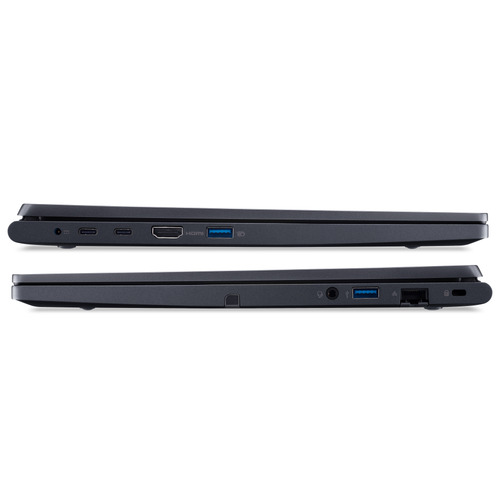

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Charging port type	USB Type-C
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad + Stylus
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	53 Wh

Power

Specification	Value
AC adapter power	100 W
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.49 kg
Width	319 mm
Depth	229 mm
Height	21.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	Yes
