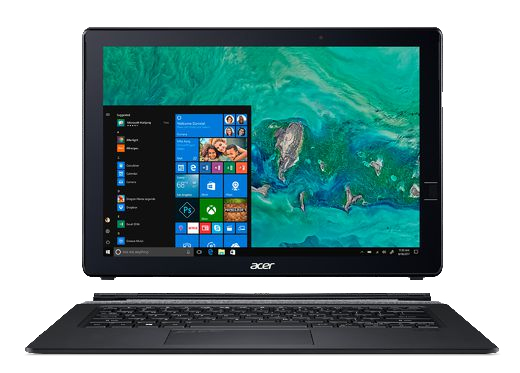

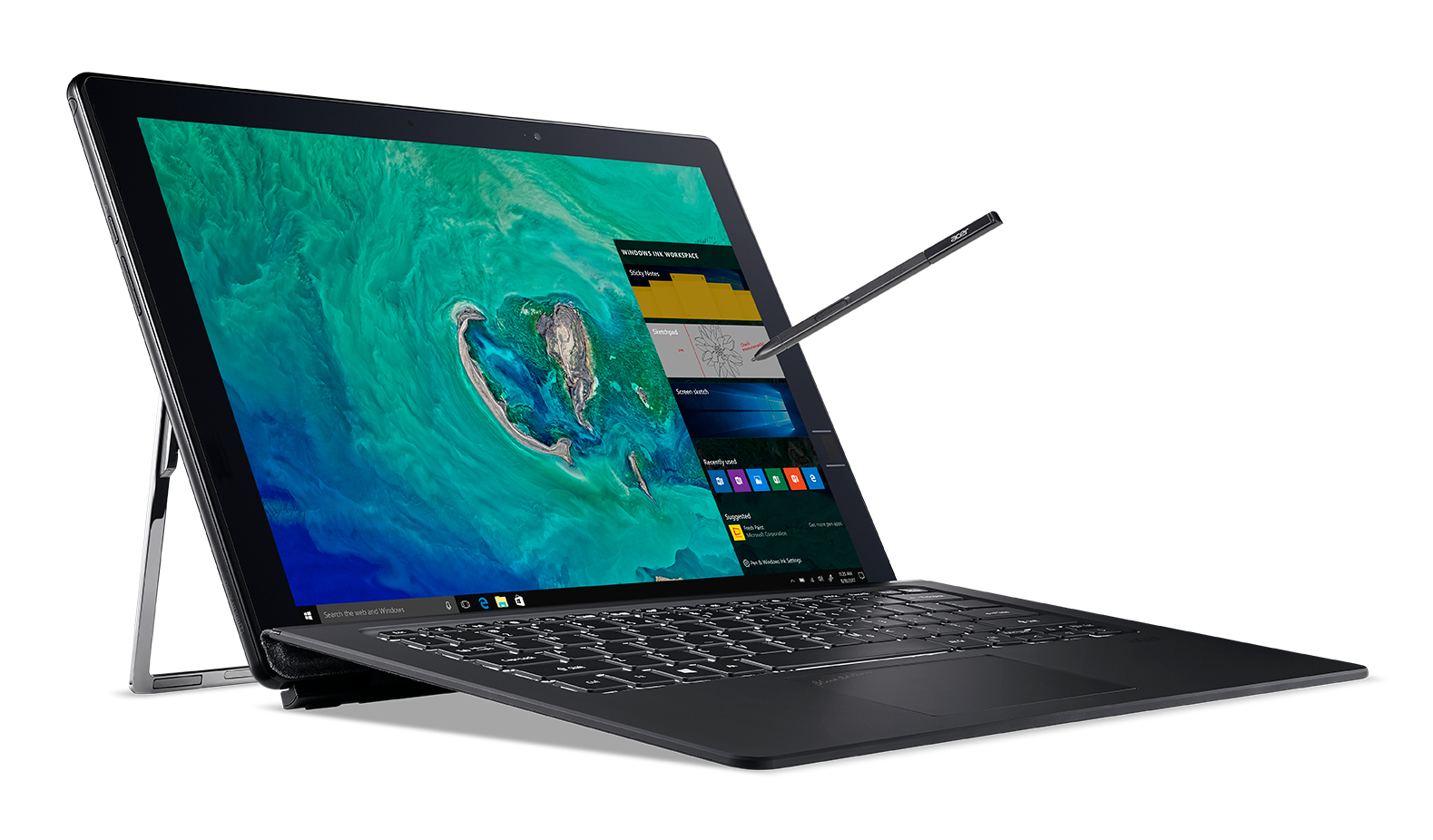

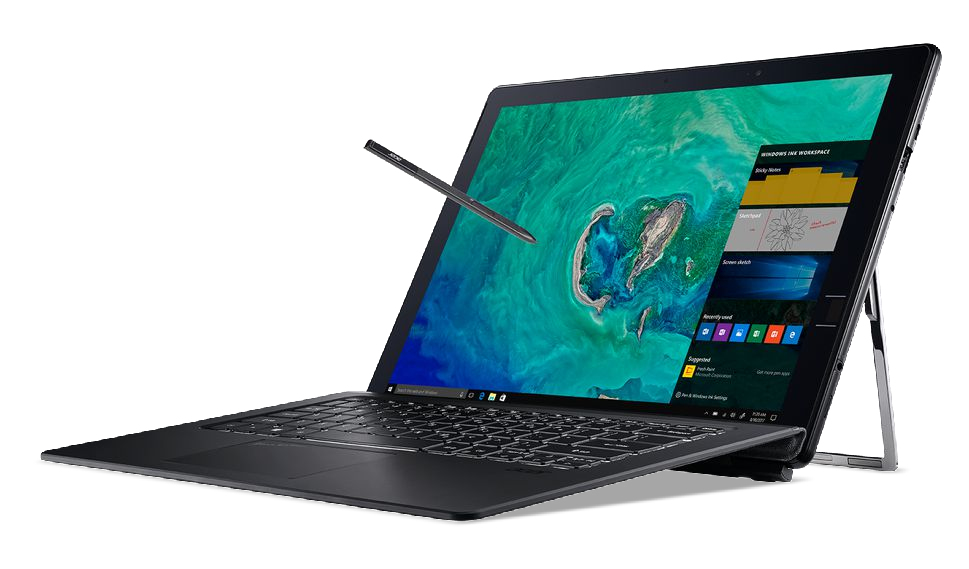

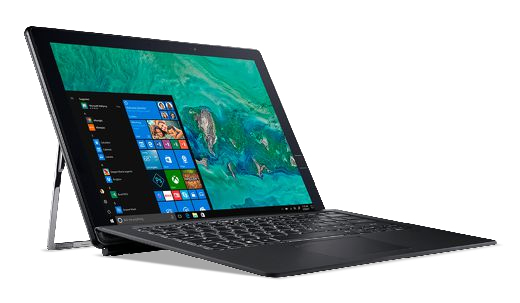

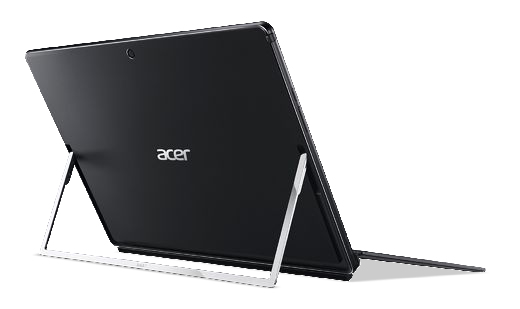

Switch 7 Black Edition SW713-51GNP-81DA Intel® Core™ i7 i7-8550U Hybrid (2-in-1)

34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR3-SDRAM 512 GB NVIDIA® GeFo

Model SW713-51GNP-81DAPart no. NT.LEPEV.001EAN 191114543863

156 specifications Checked today

Display34.3 cm (13.5")
Resolution2256 x 1504 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce® MX150

See all specifications

Overview

Display: 34.3 cm (13.5")
Resolution: 2256 x 1504 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® MX150

Brand: Acer
Category: Laptop
Model: SW713-51GNP-81DA
Part number: NT.LEPEV.001
EAN / UPC: 191114543863, 4058154257524, 4713883559232
Also known as: Acer Switch 7 Black Edition SW713-51GNP-81DA Intel® Core™ i7 i7-8550U Hybrid (2-in-1) 34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR3-SDRAM 512 GB NVIDIA® GeFo

Specifications

156 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	34.3 cm (13.5")
Display resolution	2256 x 1504 pixels
Touchscreen	Yes
HD type	Quad HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	3:2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8550U
Processor cores	4
Processor threads	8
Processor boost frequency	4 GHz
Processor frequency	1.8 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Bus type	OPI
Stepping	Y0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory layout (slots x size)	1 x 16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® MX150
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5917

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Audio decoders	Dolby Audio Premium

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	1
Combo headphone/mic port	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Windows keys	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Trial software	Microsoft Office 2016 shortcut
Bundled software	Acer Care Center, Acer Configuration Manager, Acer Portal

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	122589
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	2
Battery capacity	37 Wh
Battery capacity	4870 mAh
Battery life (max)	10 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.55 kg
Width	329.4 mm
Depth	236.4 mm
Height	15.3 mm
Weight (tablet mode)	1.15 kg
Width (tablet mode)	32.9 cm
Depth (tablet mode)	23 cm
Height (tablet mode)	9.99 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Logistics data

Specification	Value
Shipping (inner) case width	46.3 cm
Shipping (inner) case length	8.2 cm
Shipping (inner) case height	31.7 cm
Shipping (inner) case gross weight	2.01 kg
Products per pallet layer	22 pc(s)
