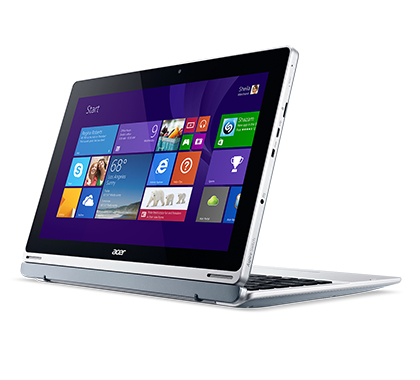

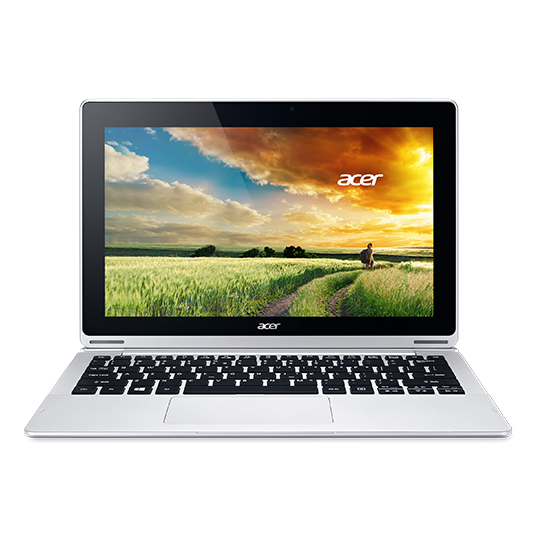

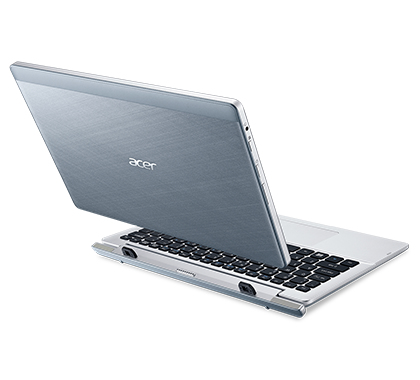

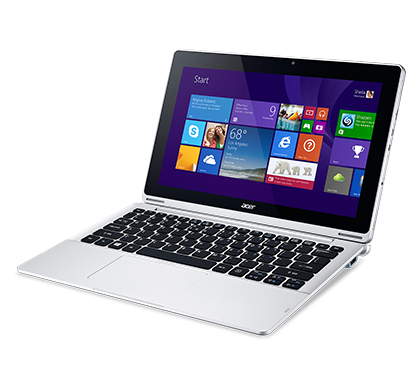

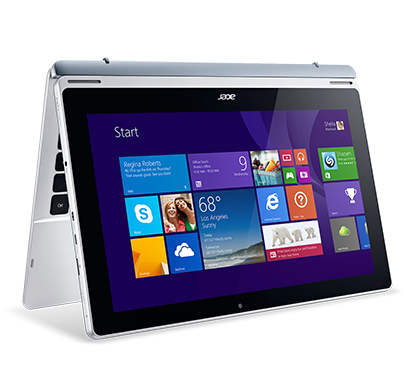

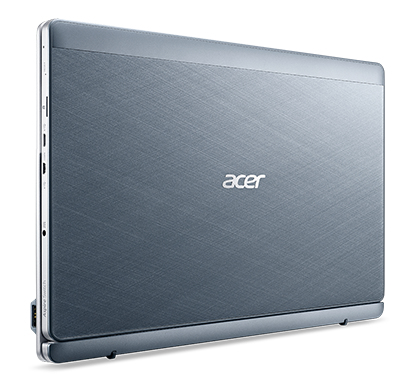

Acer Aspire Switch 11 SW5-111-12V4 Intel Atom® Z3745 Hybrid (2-in-1)

Aspire Switch 11 SW5-111-12V4 Intel Atom® Z3745 Hybrid (2-in-1)

29.5 cm (11.6") Touchscreen HD 2 GB LPDDR3-SDRAM 32 GB Flash Windows 8.1 Silver

Model SW5-111-12V4Part no. NT.L67ER.002

97 specifications Checked today

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: SW5-111-12V4
Part number: NT.L67ER.002
Also known as: Acer Aspire Switch 11 SW5-111-12V4 Intel Atom® Z3745 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen HD 2 GB LPDDR3-SDRAM 32 GB Flash Windows 8.1 Silver

Specifications

97 specifications in 19 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3745
Processor cores	4
Processor threads	4
Processor boost frequency	1.86 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1380
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
Stepping	C0
Thermal Design Power (TDP)	2 W
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	LPDDR3-SDRAM

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	Flash
Flash memory	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	778 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
S/PDIF out port	No
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	80270
Processor code	SR1SP
Processor package size	17 x 17 mm
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	8550 mAh

Power

Specification	Value
AC adapter power	18 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	No

Weight & dimensions

Specification	Value
Weight	1.46 kg
Width	298 mm
Depth	205.4 mm
Height	25 mm

Packaging content

Specification	Value
AC adapter included	Yes
