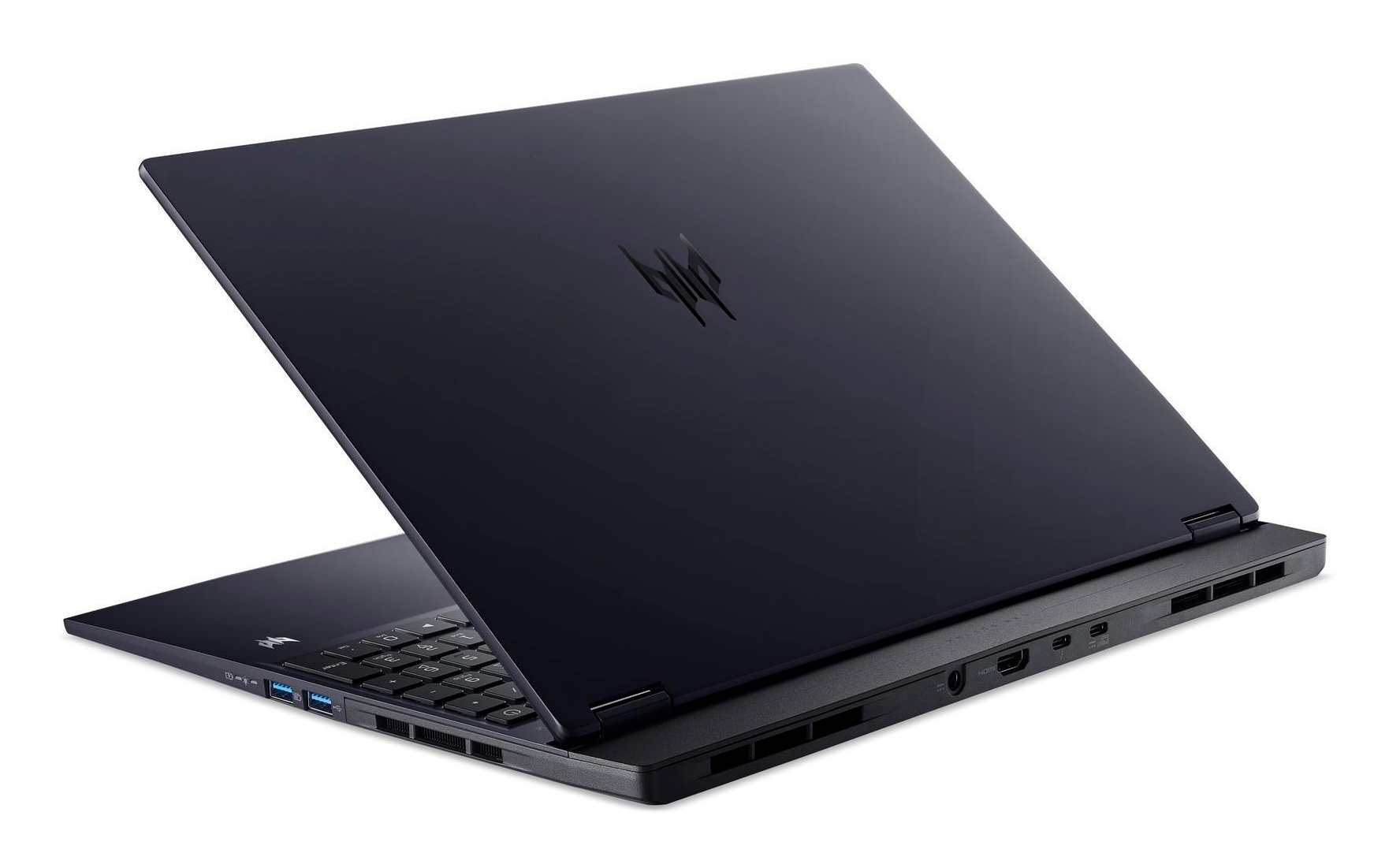

Acer Predator Helios Neo 16S AI PHN16S-71-90EF Intel Core Ultra 9 275HX Laptop

Predator Helios Neo 16S AI PHN16S-71-90EF Intel Core Ultra 9 275HX Laptop

40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 6E

Model PHN16S-71-90EFPart no. NH.QX7EG.008EAN 4711474402561

101 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 9
Memory64 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 5070 Ti

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 9
Memory: 64 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 5070 Ti

Brand: Acer
Category: Laptop
Model: PHN16S-71-90EF
Part number: NH.QX7EG.008
EAN / UPC: 4711474402561
Also known as: Acer Predator Helios Neo 16S AI PHN16S-71-90EF Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 6E

Specifications

101 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Abyssal Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Display technology marketing name	CineCrystal
Panel type	OLED
Native aspect ratio	16:10
Colour gamut	100%
Display diagonal (metric)	40.64 cm
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	275HX
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Processor frequency	2.1 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Maximum turbo power	160 W
Processor base power	55 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Total processor performance up to	13 TOPs

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	2 TB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board graphics card model	Not available

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.3

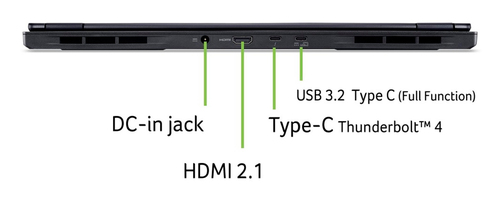

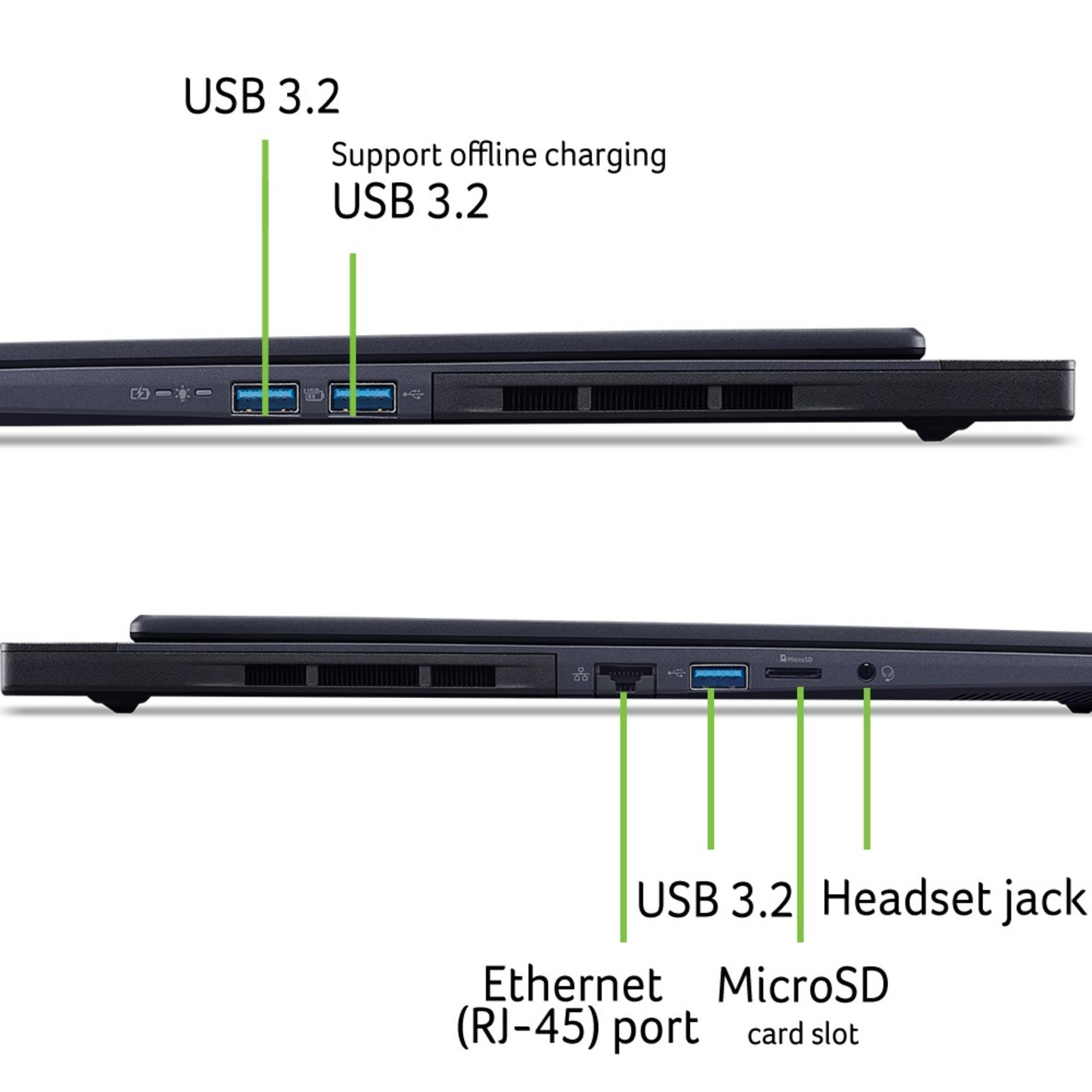

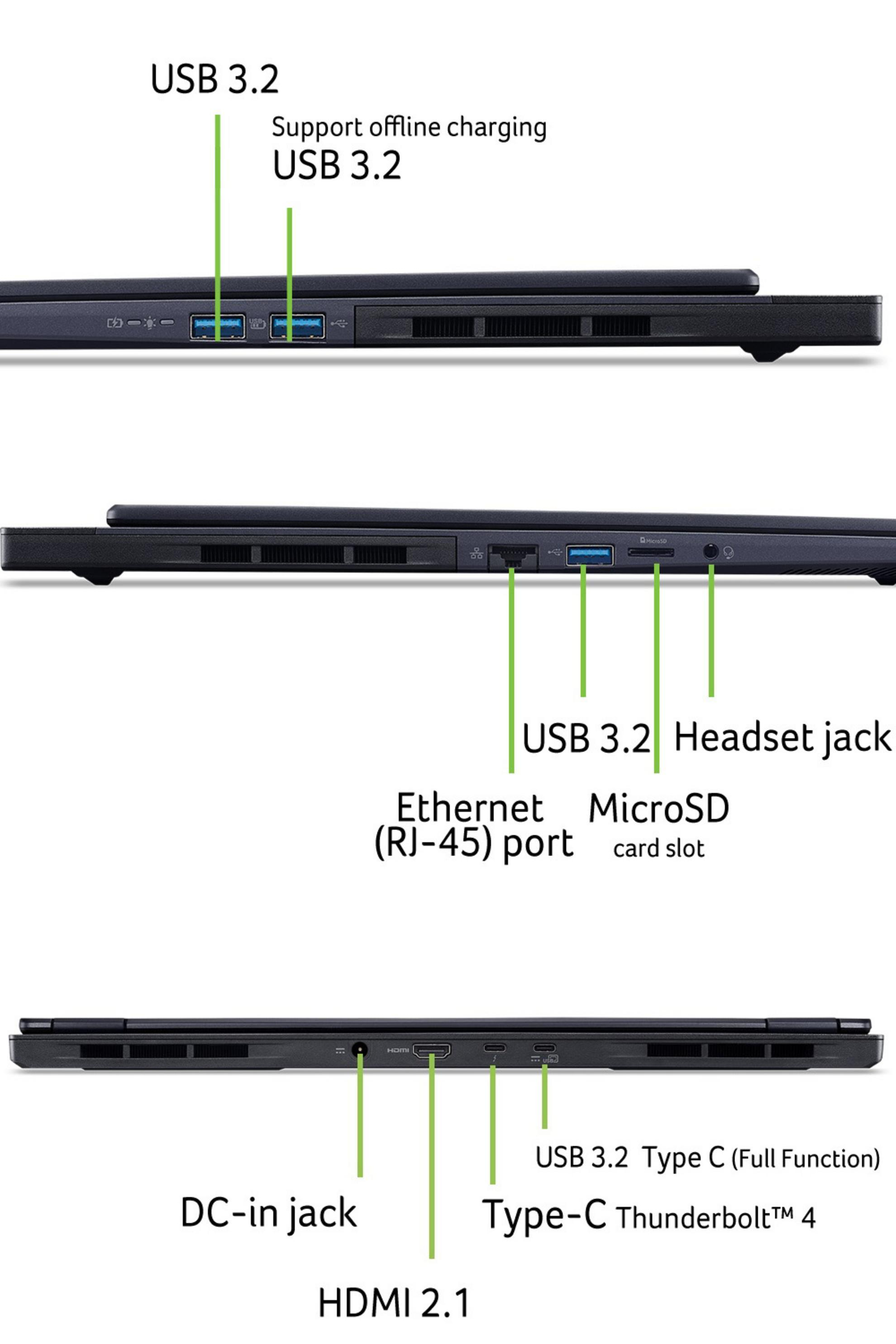

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Thunderbolt 4 ports quantity	1
Headphone outputs	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	230 W

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	356.8 mm
Depth	275.5 mm
Height	19.9 mm

Packaging data

Specification	Value
Package width	543 mm
Package depth	341 mm
Package height	80 mm
Package weight	4.14 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC

Other features

Specification	Value
Warranty period	2 year(s)
