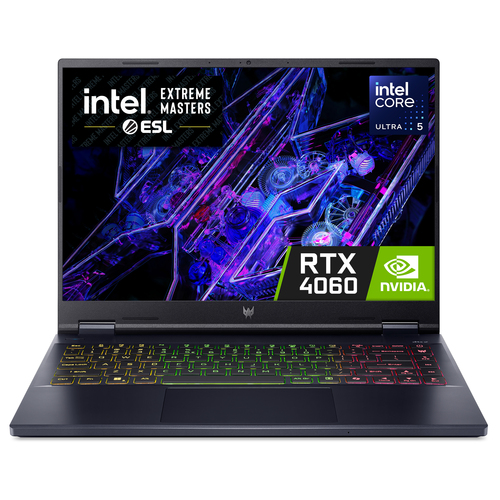

Helios Neo 14 PHN14-51-51C3 Intel Core Ultra 5 125H Laptop
36.8 cm (14.5") WQXGA 16 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax)
Model PHN14-51-51C3Part no. NH.QRPEK.005EAN 4711474021267
101 specifications Checked today
- Display36.8 cm (14.5")
- Resolution2560 x 1600 pixels
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 4060
Overview
- Display
- 36.8 cm (14.5")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 4060
- Brand
- Acer
- Category
- Laptop
- Model
- PHN14-51-51C3
- Part number
- NH.QRPEK.005
- EAN / UPC
- 4711474021267, 4711474122223
- Also known as
- Acer Helios Neo 14 PHN14-51-51C3 Intel Core Ultra 5 125H Laptop 36.8 cm (14.5") WQXGA 16 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax)
Specifications
101 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 36.8 cm (14.5") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Display technology marketing name | ComfyView |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display surface | Matt |
| Maximum refresh rate | 120 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 115 W |
| Processor base power | 28 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| NVIDIA G-SYNC | Yes |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wi-Fi 6E 1675i |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 3-zone RGB |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 76 Wh |
| Battery life (max) | 11 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 230 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Supervisor, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Width | 324.1 mm |
| Depth | 255.4 mm |
| Height | 20.9 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
