HELIOS 16 U9 290HX 32GB 1TB 5080 BLK

Model HELIOS 16 U9 290HX 32GB 1TB 5080 BLKPart no. NH.U46EK.001EAN 4711474993274

147 specifications Checked today

Overview

Brand: Acer
Category: Laptop
Model: HELIOS 16 U9 290HX 32GB 1TB 5080 BLK
Part number: NH.U46EK.001
EAN / UPC: 4711474993274
Also known as: Acer Predator Helios Neo 16 AI (PHN16‑I71) gaming laptop – Intel Core Ultra 9 290HX Plus, NVIDIA RTX 5080, 16" WQXGA 240Hz, 32GB DDR5, 1TB SSD

147 specifications in 20 groups

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
Foldable display	No
HD type	WQXGA
Display technology marketing name	ComfyView
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt
Display brightness	500 cd/m²
Maximum display brightness (HDR)	500 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	3 ms
Maximum refresh rate	240 Hz
Anti-microbial screen	No

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	290HX Plus
Processor cores	24
Processor threads	24
Processor frequency	5.5 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.7 GHz
Processor cache	32 MB
L2 cache	40 MB
Processor operating modes	64-bit
Maximum turbo power	160 W
Processor base power	55 W

Specification	Value
Copilot+ PC	No
Neural processor unit (NPU)	Intel AI Boost
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5080
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR7
On-board graphics card model	Intel® Graphics
On-board graphics card cores	4

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN	Yes
Ethernet LAN data rates	5000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
MIMO	Yes
MIMO type	Multi User MIMO

Specification	Value

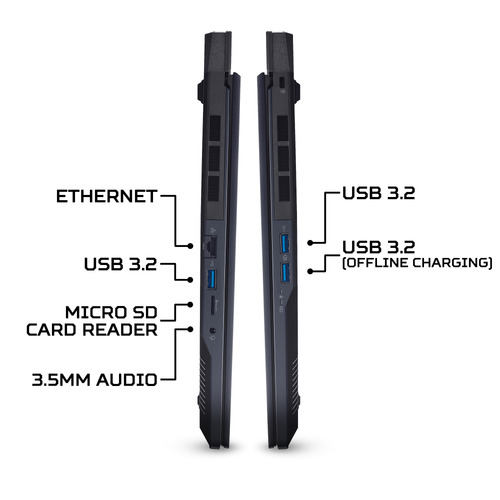

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Headphone outputs	1
Combo headphone/mic port	Yes
Line-in	Yes
Microphone in	Yes
HDCP	Yes
HDMI	Yes
Line-out	Yes
USB ports quantity	5
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Specification	Value
Operating system installed	Windows 11 Home
Bundled software	Windows Desktop AppsIn-House: Acer AlterView Acer LiveArt Acer QuickPanel Acer VisionArt PredatorSense V5 (NB) Tools: Acer My Key Application

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	92 Wh
Battery life (max)	8 h
Continuous video playback time (max)	10 h

Specification	Value

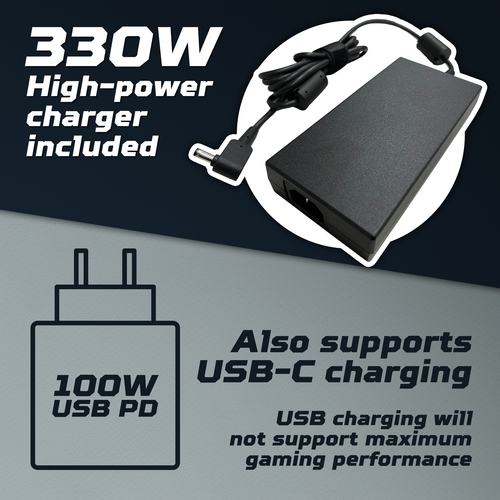

AC adapter power	330 W
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	100 W
USB Power Delivery (USB PD)	Yes
USB charging voltage	20 V

Specification	Value
Fingerprint reader	No

Specification	Value
Mouse included	No
AC adapter included	Yes
Keyboard included	Yes
Power cord included	Yes
Packaging content	Helios Neo 16 AI PHN16-I71-9915 Gaming Notebook Lithium Ion (Li-Ion) Battery Power Adapter Power Cord
