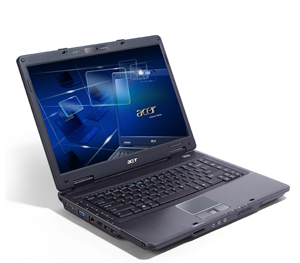

Extensa 5630Z-342G16N_VB
Model Extensa 5630Z-342G16N_VBPart no. LX.EB70Z.355EAN 4712842473442
132 specifications Checked today
- Display39.1 cm (15.4")
- Resolution1280 x 800 pixels
- ProcessorIntel Pentium Mobile
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 4500MHD
Overview
- Display
- 39.1 cm (15.4")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel Pentium Mobile
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 4500MHD
- Brand
- Acer
- Category
- Laptop
- Model
- Extensa 5630Z-342G16N_VB
- Part number
- LX.EB70Z.355
- EAN / UPC
- 4712842473442
- Also known as
- Acer Extensa 5630Z-342G16N_VB Intel Pentium Mobile T3400 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB Intel® GMA 4500MHD Windows Vista Business
Specifications
132 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.1 cm (15.4") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
| Display surface | Matt |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | T3400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.16 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 667 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium T3000 Series for Mobile |
| Processor codename | Merom |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | M0 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 13 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500MHD |
| Discrete graphics card memory | 0.0625 GB |
| Maximum graphics card memory | 1.579 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Audio system direct 3D sound | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, WLAN |
| Wireless technology | IEEE 802.11a/b/g/n |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Line-in | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 1 |
| CardBus PCMCIA slot type | Type II |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GL40 Express |
Keyboard
| Specification | Value |
|---|---|
| Numeric keypad | Yes |
| Hot keys | Yes |
| Number of keyboard cursor keys | 4 |
| Keyboard function keys | 12 |
| Keyboard special features | Yes |
| Keyboard easy keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Trial software | -McAfee Internet Security Suite. |
| Bundled software | -Acer Empowering Technologie (Acer eDataSecurity, ePower, eRecovery, eSettings Management), -Acer Crystal Eye, -Acer GridVista, -Acer Launch Manager, -Adobe Reader, -Corel WinDVD, -NTI Media Maker / NTI Shadow, -Microsoft Office Ready 2007. |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 35583 |
| Processor code | SLB3P |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 48.8 Wh |
| Battery life (max) | 2.5 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
| HDD user password | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | -Wi-Fi, -ACPI 3.0, -Mobile PC 2002, -DMI 2.0. |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.88 kg |
| Width | 360 mm |
| Depth | 267 mm |
| Height (front) | 3.03 cm |
| Height (rear) | 4.3 cm |
| Dimensions (WxDxH) | 360 x 267 x 30.3 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Wake-on-LAN ready | Yes |
| Wake-on-Ring ready | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | ITU V.92 |
| Supplied AC adapter type | AC |
