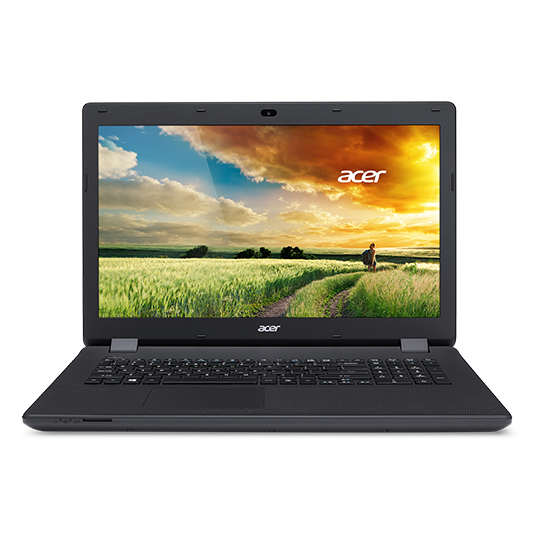

Aspire ES1-711-P4KU Intel® Pentium® N3540 Laptop
43.9 cm (17.3") HD+ 4 GB DDR3L-SDRAM 500 GB HDD Linux Linpus Black
Model ES1-711-P4KUPart no. NX.MS2EU.007
113 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1600 x 900 pixels
- ProcessorIntel® Pentium®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Pentium®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- ES1-711-P4KU
- Part number
- NX.MS2EU.007
- Also known as
- Acer Aspire ES1-711-P4KU Intel® Pentium® N3540 Laptop 43.9 cm (17.3") HD+ 4 GB DDR3L-SDRAM 500 GB HDD Linux Linpus Black
Specifications
113 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1600 x 900 pixels |
| Touchscreen | No |
| HD type | HD+ |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | N3540 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.66 GHz |
| Processor frequency | 2.16 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel® Pentium N3000 Series for Mobile |
| Processor codename | Bay Trail |
| Stepping | C0 |
| Thermal Design Power (TDP) | 7.5 W |
| Scenario Design Power (SDP) | 4.5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 896 MHz |
| On-board graphics card dynamic frequency (max) | 896 MHz |
| On-board graphics card DirectX version | 11.2 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Docking connector | No |
| Total number of SATA connectors | 2 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux Linpus |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology | Yes |
| Intel Smart Connect Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 82105 |
| Processor code | SR1YW |
| Processor package size | 25 x 27 mm |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 423.3 mm |
| Depth | 289.9 mm |
| Height | 27.9 mm |
| Height (front) | 2.79 cm |
| Height (rear) | 2.79 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| 3D | No |
