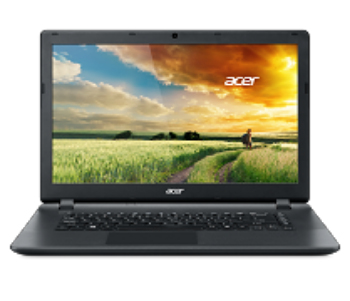

Aspire ES1-511-C0M4 Intel® Celeron® N2830 Laptop

39.6 cm (15.6") HD 2 GB DDR3L-SDRAM 320 GB HDD Windows 8.1 with Bing Black

Model ES1-511-C0M4Part no. NX.MMLAA.008

118 specifications Checked today

Overview

Brand: Acer
Category: Laptop
Model: ES1-511-C0M4
Part number: NX.MMLAA.008
Also known as: Acer Aspire ES1-511-C0M4 Intel® Celeron® N2830 Laptop 39.6 cm (15.6") HD 2 GB DDR3L-SDRAM 320 GB HDD Windows 8.1 with Bing Black

118 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2830
Processor cores	2
Processor threads	2
Processor boost frequency	2.41 GHz
Processor frequency	2.16 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 1170
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
Stepping	C0
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	100 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	750 MHz
On-board graphics card dynamic frequency (max)	750 MHz

Specification	Value
Built-in microphone	Yes

Specification	Value
Front camera	Yes

Specification	Value
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Specification	Value
Operating system installed	Windows 8.1 with Bing
Operating system architecture	64-bit

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	81071
Processor code	SR1W4
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
