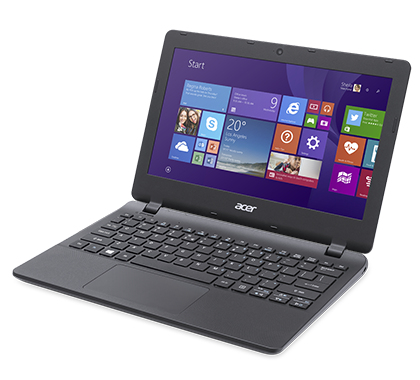

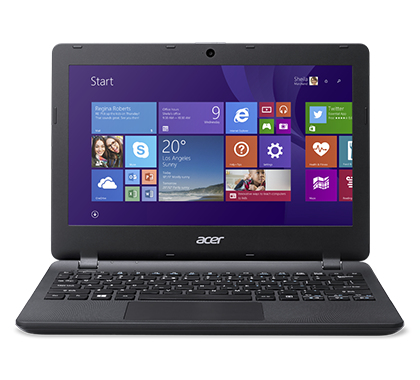

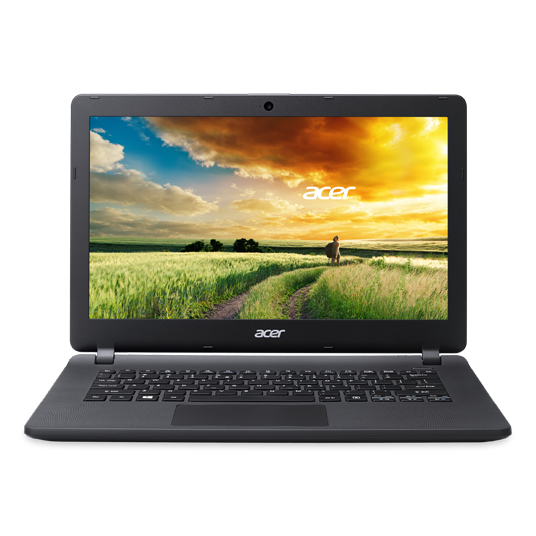

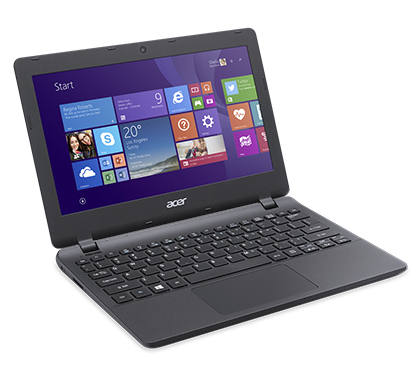

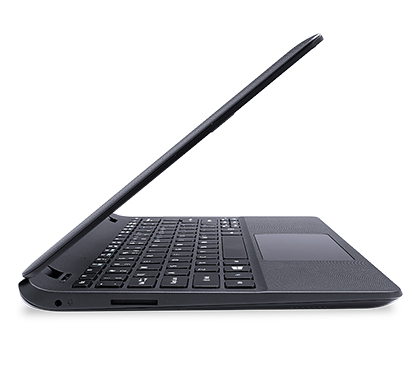

Aspire E 11 ES1-311-P1GY Intel® Pentium® N3540 Laptop
33.8 cm (13.3") 2 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 with Bing Black
Model ES1-311-P1GYPart no. NX.MRTSM.002
142 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1366 x 768 pixels
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- ES1-311-P1GY
- Part number
- NX.MRTSM.002
- Also known as
- Acer Aspire E 11 ES1-311-P1GY Intel® Pentium® N3540 Laptop 33.8 cm (13.3") 2 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 with Bing Black
Specifications
142 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | Not supported |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | N3540 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.66 GHz |
| Processor frequency | 2.16 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel® Pentium N3000 Series for Mobile |
| Processor codename | Bay Trail |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 7.5 W |
| Scenario Design Power (SDP) | 4.5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Number of SSDs installed | 0 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 896 MHz |
| On-board graphics card dynamic frequency (max) | 896 MHz |
| On-board graphics card DirectX version | 11.2 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Total number of SATA connectors | 2 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 with Bing |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | Yes |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology | Yes |
| Intel Smart Connect Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Processor ARK ID | 82105 |
| Processor code | SR1YW |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 3220 mAh |
| Battery life (max) | 5 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Fingerprint reader | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
| Width | 327 mm |
| Depth | 228 mm |
| Height | 20.7 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| 3D | No |
