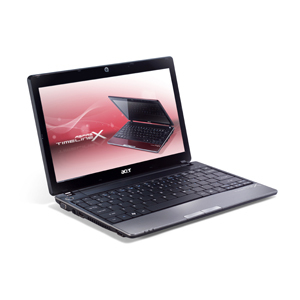

Aspire TimelineX 1830T-52U4G32n

Model Aspire TimelineX 1830T-52U4G32nPart no. LX.PTV02.022

149 specifications Checked today

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage320 GB
Battery5800 mAh

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 320 GB
Battery: 5800 mAh

Brand: Acer
Category: Laptop
Model: Aspire TimelineX 1830T-52U4G32n
Part number: LX.PTV02.022
Also known as: Acer Aspire TimelineX 1830T-52U4G32n Intel® Core™ i5 i5-520UM 29.5 cm (11.6") 4 GB DDR3-SDRAM 320 GB Windows 7 Home Premium Black

Specifications

149 specifications in 21 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	200 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-520UM
Processor cores	2
Processor threads	4
Processor boost frequency	1.87 GHz
Processor frequency	1.07 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	18 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000BASE-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Trial software	McAfee Internet Security Suite Microsoft Works 9.0
Bundled software	Acer Crystal Eye Acer GridVista Acer eRecovery Management Acer GameZone Acer Game Console Adobe Reader Adobe Flash Player 10 Google Toolbar Google Desktop Google Setup eSobi My WinLocker Microsoft Windows Live Essentials Orion Acer Video Conference Manager Microsoft Silverlight Skype Windows Live Es

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	47554
Processor code	SLBQP
Processor package size	BGA 34 x 28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5800 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	30 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	285 mm
Depth	204 mm
Height (front)	2.57 cm
Height (rear)	2.8 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power supply type	AC
Wake-on-LAN ready	Yes
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
