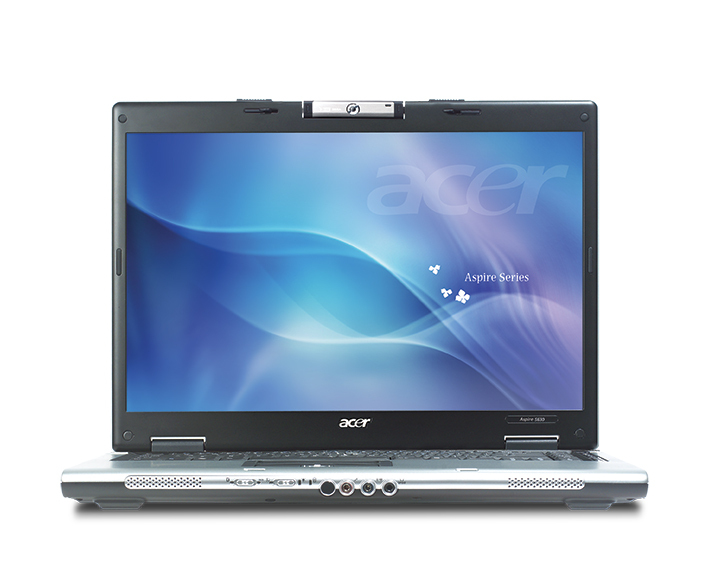

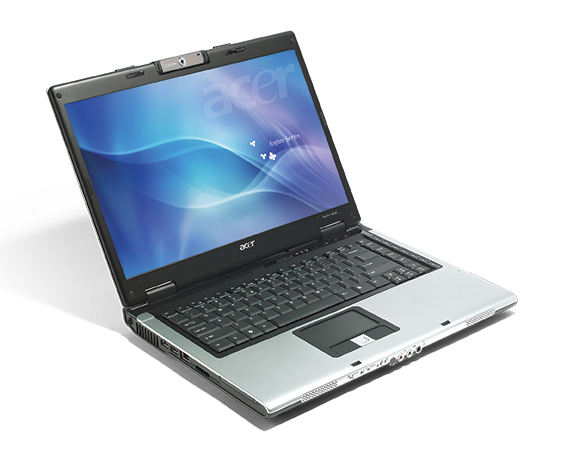

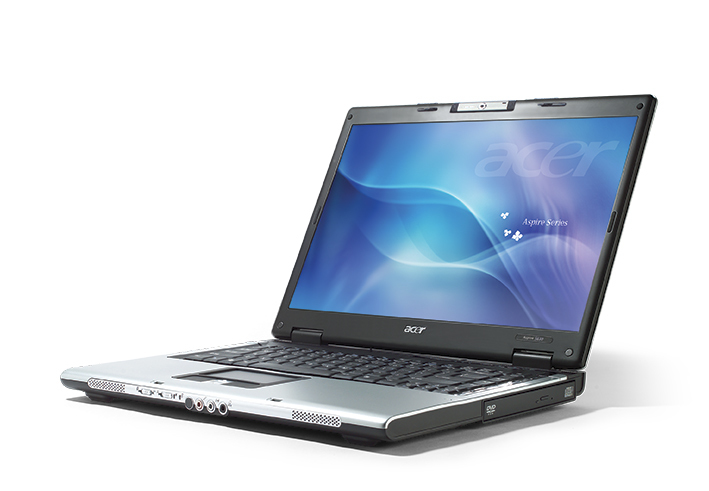

Aspire 5630-6122

Model Aspire 5630-6122Part no. LX.AXY0X.042

122 specifications Checked today

Overview

Brand: Acer
Category: Laptop
Model: Aspire 5630-6122
Part number: LX.AXY0X.042
Also known as: Acer Aspire 5630-6122 Intel® Core™2 Duo T5500 39.1 cm (15.4") 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows Vista Home Premium

122 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5500
Processor cores	2
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Maximum graphics card memory	0.224 GB

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Specification	Value
Front camera resolution (numeric)	1.3 MP

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Specification	Value
Motherboard chipset	Intel® 945GM Express

Specification	Value
Pointing device	Touchpad

Specification	Value
Operating system installed	Windows Vista Home Premium
Bundled software	Acer Empowering Technology (Acer eNet, ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings, ePerformance Management), Acer GridVista, Acer Launch manager, Acer Arcade, Adobe Reader, CyberLink Power Producer / CyberLink PowerDVD, NTI CD Maker

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27253
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No
