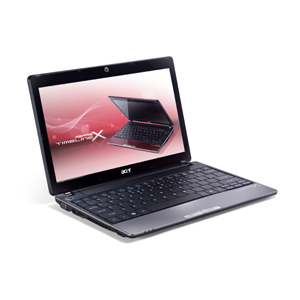

Aspire 1830TZ-U543G32nss
Model Aspire 1830TZ-U543G32nssPart no. LX.PYZ02.017
143 specifications Checked today
- Display29.5 cm (11.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Pentium®
- Memory3 GB
- Storage320 GB
- Battery5800 mAh
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Pentium®
- Memory
- 3 GB
- Storage
- 320 GB
- Battery
- 5800 mAh
- Brand
- Acer
- Category
- Laptop
- Model
- Aspire 1830TZ-U543G32nss
- Part number
- LX.PYZ02.017
- Also known as
- Acer Aspire 1830TZ-U543G32nss Intel® Pentium® U5400 29.5 cm (11.6") 3 GB DDR3-SDRAM 320 GB Windows 7 Home Premium Black
Specifications
143 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1366 x 768 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 200 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | U5400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.2 GHz |
| System bus rate | 2.5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1288 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium U5000 Series for Mobile |
| Processor codename | Arrandale |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | K0 |
| Thermal Design Power (TDP) | 18 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 1 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 1 + 1 x 2 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card memory | 0.125 GB |
| Graphics card family | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 166 MHz |
| On-board graphics card dynamic frequency (max) | 500 MHz |
| Maximum graphics card memory | 1.659 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 1.3 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 0 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GS45 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 49156 |
| Processor code | SLBUH |
| Processor package size | BGA 34 x 28 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 5800 mAh |
| Battery capacity | 63 Wh |
| Battery life (max) | 8 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 30 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
| HDD user password | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.4 kg |
| Width | 285 mm |
| Depth | 204 mm |
| Height (front) | 2.57 cm |
| Height (rear) | 2.8 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Wake-on-LAN ready | Yes |
| Internal modem | No |
| TV tuner integrated | No |
| Supplied AC adapter type | AC |
