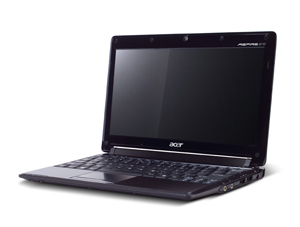

AO531h-0Dk Intel Pentium Mobile N270 Netbook
25.6 cm (10.1") 1 GB DDR2-SDRAM Windows 7 Starter Black
Model AO531h-0DkPart no. LU.S750D.037EAN 099802139551
99 specifications Checked today
- Display25.6 cm (10.1")
- Resolution1024 x 600 pixels
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage250 GB
- Battery5200 mAh
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1024 x 600 pixels
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 250 GB
- Battery
- 5200 mAh
- Brand
- Acer
- Category
- Laptop
- Model
- AO531h-0Dk
- Part number
- LU.S750D.037
- EAN / UPC
- 099802139551, 4712842215356
- Also known as
- Acer AO531h-0Dk Intel Pentium Mobile N270 Netbook 25.6 cm (10.1") 1 GB DDR2-SDRAM Windows 7 Starter Black
Specifications
99 specifications in 16 groups
Design
| Specification | Value |
|---|---|
| Product type | Netbook |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1024 x 600 pixels |
| Native aspect ratio | 5:3 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | Socket F (1207) |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 250 GB |
| HDD size | 2.5" |
| Card reader integrated | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 0.3 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wireless technology | 802.11b/g |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Starter |
| Trial software | -Microsoft Works SE 9 + Office Home & Student 2007, -McAfee Internet Security Suite. |
| Bundled software | -Acer Recovery Management, -Google Toolbar, -Google Desktop, -Google Setup, -Adobe Reader 9, -Adobe Flash Player 10, -Microsoft.NET Framework 2.0, -Customized Internet Explorer 7.0, -eSobi, -Carbonite online backup, -Acer Game Zone, -Acer Video Conference Manager 4.0, -Windows Live Essentials — Wave |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 5200 mAh |
| Battery life (max) | 7 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 30 W |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.15 kg |
| Width | 255 mm |
| Depth | 183 mm |
| Height | 19 mm |
Other features
| Specification | Value |
|---|---|
| Supplied AC adapter type | AC |
