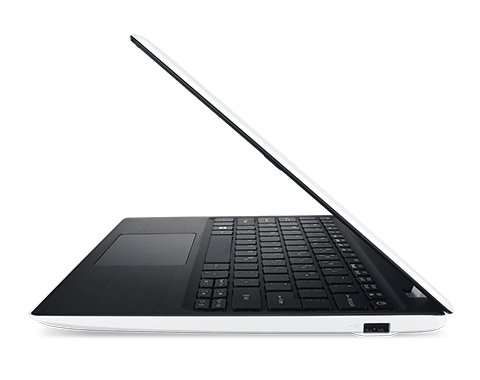

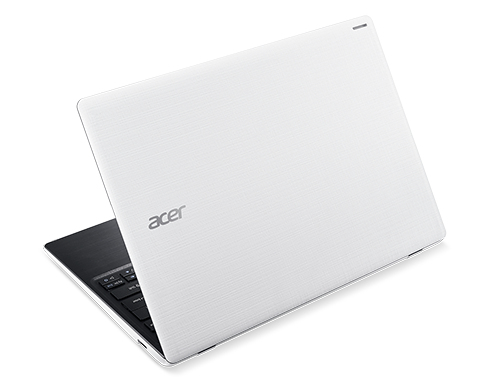

Aspire One AO1-132-C3T3 Intel® Celeron® N3060 Laptop
29.5 cm (11.6") HD 2 GB DDR3L-SDRAM 32 GB Flash Wi-Fi 5 (802.11ac) Windows 10 Home Black, White
Model AO1-132-C3T3Part no. NX.SHPAA.001
141 specifications Checked today
- Display29.5 cm (11.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Celeron®
- Memory2 GB
- Storage32 GB
- GraphicsNot available
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Storage
- 32 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- AO1-132-C3T3
- Part number
- NX.SHPAA.001
- Also known as
- Acer Aspire One AO1-132-C3T3 Intel® Celeron® N3060 Laptop 29.5 cm (11.6") HD 2 GB DDR3L-SDRAM 32 GB Flash Wi-Fi 5 (802.11ac) Windows 10 Home Black, White
Specifications
141 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, White |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Panel type | LCD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3060 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.48 GHz |
| Processor frequency | 1.6 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Braswell |
| Stepping | D1 |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 2.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | Flash |
| Flash memory | 32 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 400 |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 600 MHz |
| On-board graphics card DirectX version | 12.0 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 7265 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Integrated 4G WiMAX | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 91832 |
| Processor code | SR2KN |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
| Battery capacity | 3770 mAh |
| Battery capacity | 42 Wh |
| Battery life (max) | 10 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | No |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Supervisor, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.2 kg |
| Width | 291 mm |
| Depth | 211 mm |
| Height | 18.6 mm |
| Height (front) | 1.86 cm |
| Height (rear) | 1.86 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
