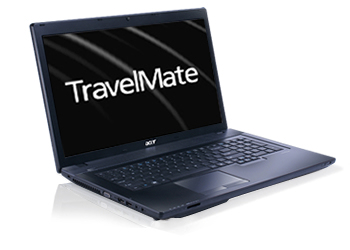

TravelMate 7750Z-B9704G50Mnss Intel® Pentium® B970

43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 7 Home Premium Silver

Model 7750Z-B9704G50MnssPart no. NX.V5DEC.003EAN 4712196275723

154 specifications Checked today

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: 7750Z-B9704G50Mnss
Part number: NX.V5DEC.003
EAN / UPC: 4712196275723
Also known as: Acer TravelMate 7750Z-B9704G50Mnss Intel® Pentium® B970 43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 7 Home Premium Silver

Specifications

154 specifications in 23 groups

Design

Specification	Value
Product colour	Silver
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B970
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L3
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	Q0
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory slots (available)	1
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Number of SSDs installed	0
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
S-Video port	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	63915
Processor code	SR0J2
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48 Wh
Battery life (max)	4 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	No

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	415 mm
Depth	275 mm
Height	35.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Remote control included	No

Other features

Specification	Value
Infrared data port	No
3D	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power supply type	AC
TV tuner integrated	No
Supplied AC adapter type	AC
