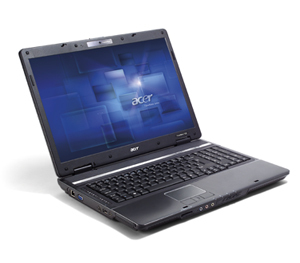

TravelMate 7320-301G16_XPP Intel® Celeron® 560
43.2 cm (17") 1 GB DDR2-SDRAM 160 GB Intel® GMA X3100 Windows XP Professional
Model 7320-301G16_XPPPart no. LX.TNG06.014EAN 4712842094500
91 specifications Checked today
- Display43.2 cm (17")
- Resolution1440 x 900 pixels
- ProcessorIntel® Celeron®
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA X3100
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1440 x 900 pixels
- Processor
- Intel® Celeron®
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA X3100
- Brand
- Acer
- Category
- Laptop
- Model
- 7320-301G16_XPP
- Part number
- LX.TNG06.014
- EAN / UPC
- 4712842094500
- Also known as
- Acer TravelMate 7320-301G16_XPP Intel® Celeron® 560 43.2 cm (17") 1 GB DDR2-SDRAM 160 GB Intel® GMA X3100 Windows XP Professional
Specifications
91 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1440 x 900 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 560 |
| Processor cores | 1 |
| Processor frequency | 2.13 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Merom |
| Bus type | FSB |
| FSB Parity | No |
| Thermal Design Power (TDP) | 31 W |
| Tcase | 100 °C |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 16 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Intel® GMA X3100 |
| Maximum graphics card memory | 0.128 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition |
| Number of built-in speakers | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wireless technology | 802.11b/g |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 1 |
| CardBus PCMCIA slot type | Type II |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | Yes |
| TV-out type | S-Video |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 34439 |
| Processor package size | 35 x 35 mm |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
| HDD user password | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.8 kg |
| Width | 400 mm |
| Depth | 290 mm |
| Height (front) | 3.03 cm |
| Height (rear) | 4.33 cm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | ITU V.92 |
| Supplied AC adapter type | AC |
