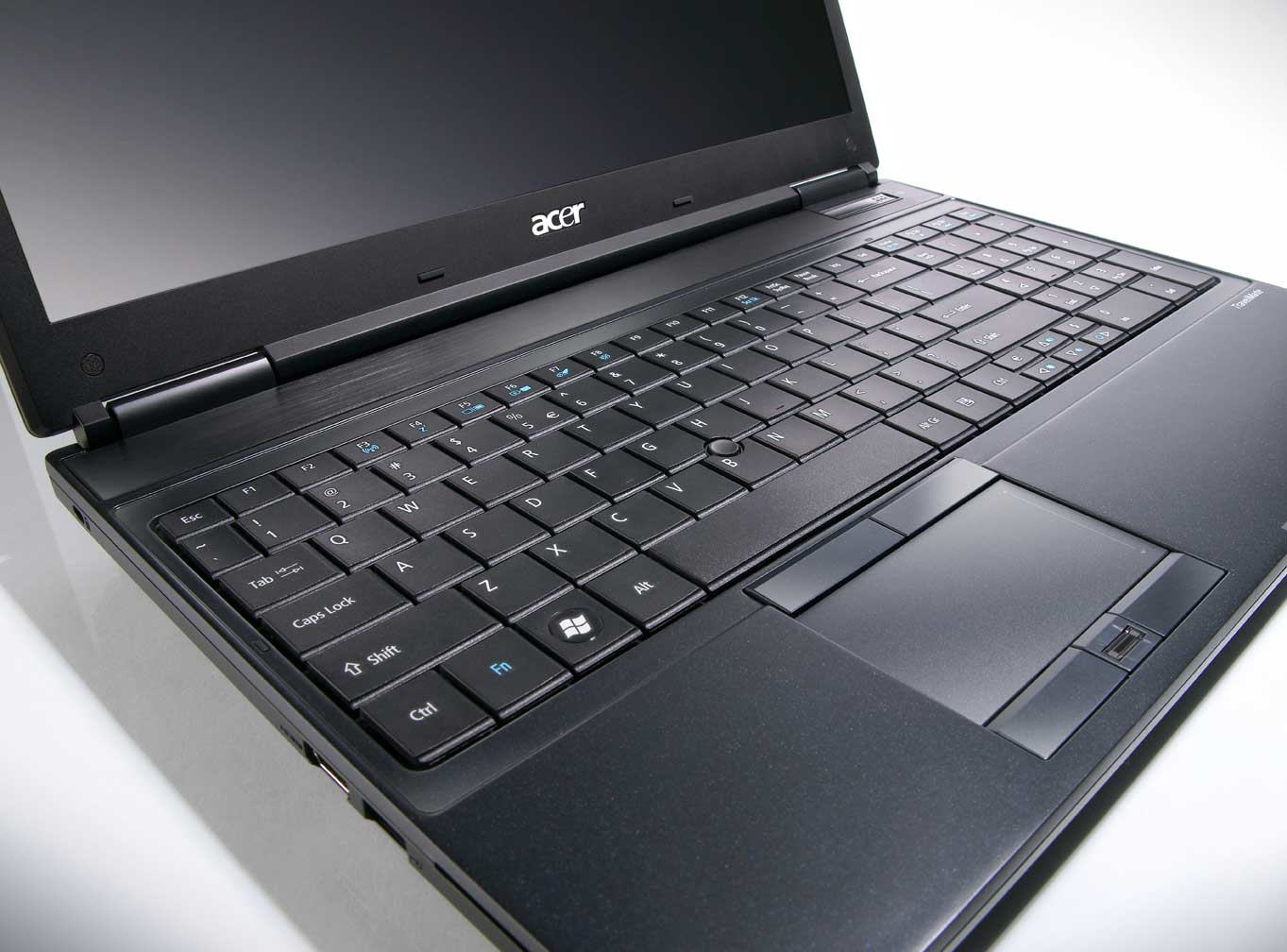

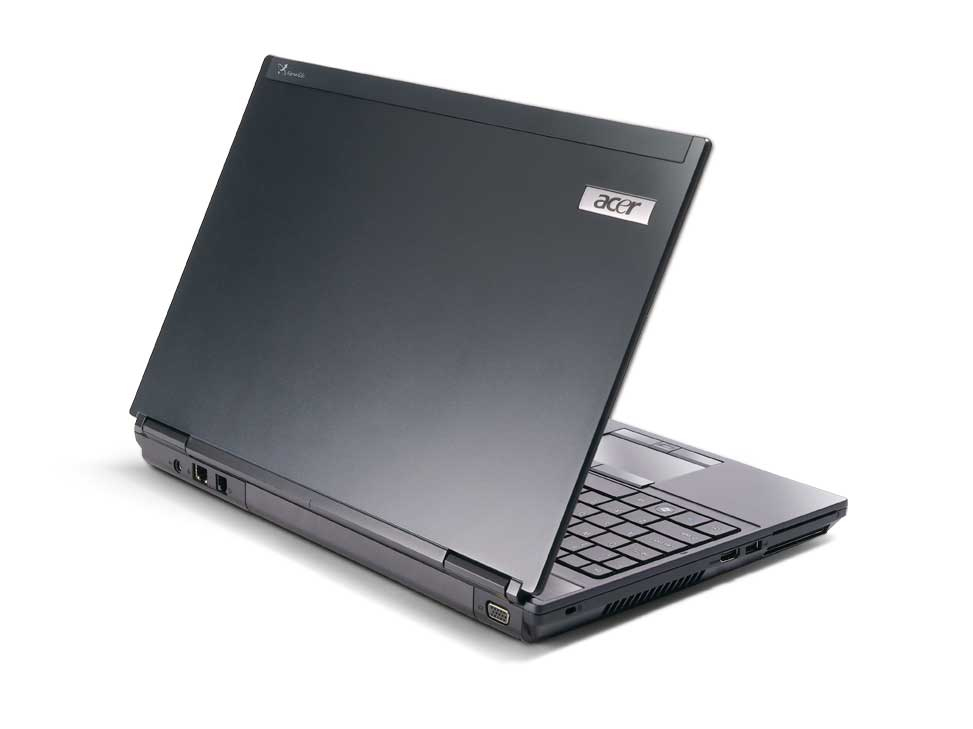

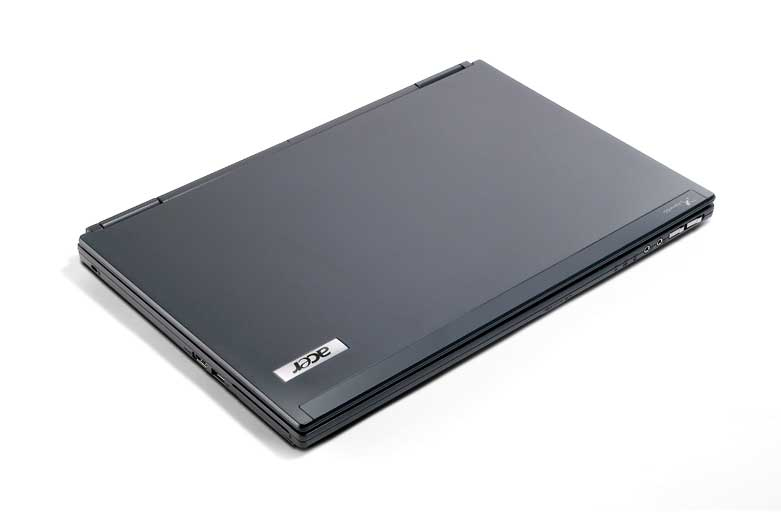

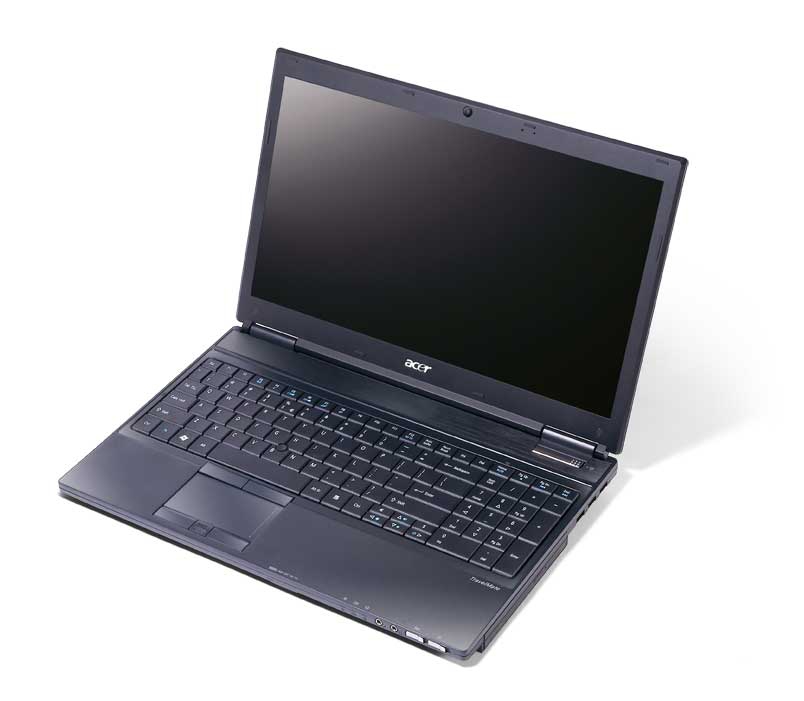

TravelMate 6594-564G32MI Intel® Core™ i5 i5-560M

39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB Intel HD Windows 7 Professional

Model 6594-564G32MIPart no. LX.TXJ03.067EAN 4712842128588

130 specifications Checked today

Overview

Brand: Acer
Category: Laptop
Model: 6594-564G32MI
Part numbers: LX.TXJ03.067, LX.TXJ03.066
EAN / UPC: 4712842128588, 4712842128564
Also known as: Acer TravelMate 6594-564G32MI Intel® Core™ i5 i5-560M 39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB Intel HD Windows 7 Professional

130 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-560M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.66 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA II
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel HD
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Specification	Value
Front camera	No

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No

Specification	Value
Motherboard chipset	Intel® QM57 Express

Specification	Value
Pointing device	Touchpad

Specification	Value
Operating system installed	Windows 7 Professional
Bundled software	Acer Backup Manager, Acer ePower Management, Acer eRecovery Management, Adobe Flash Player 10, Adobe Reader 9.1, eSobi, Google Toolbar, Microsoft Office Starter 2010, Norton Online Backup, Acer Arcade Deluxe, NTI Media Maker, Acer Crystal Eye, Microsoft Silverlight, Skype, Windows Live Essentials —

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49653
Processor code	SLBTT
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
