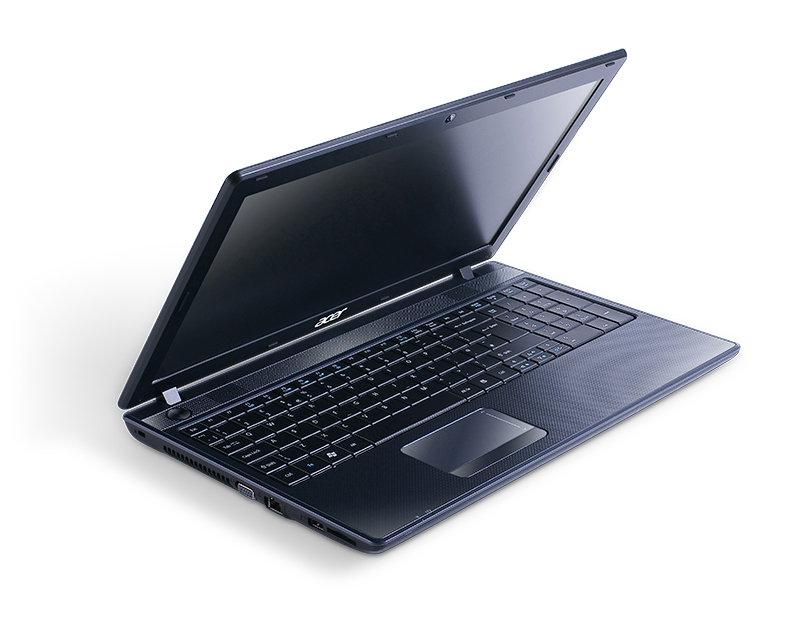

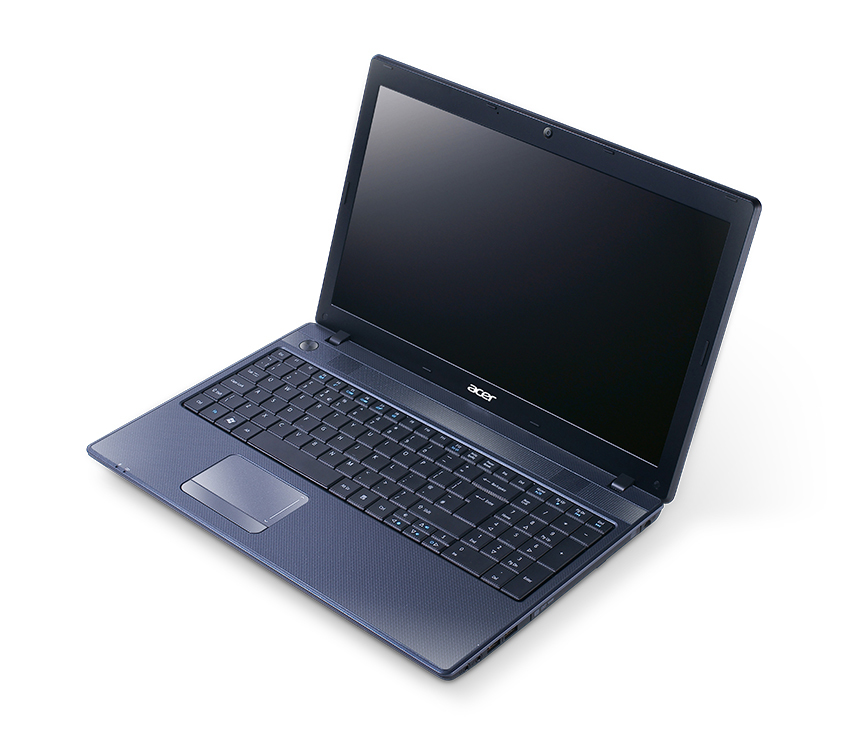

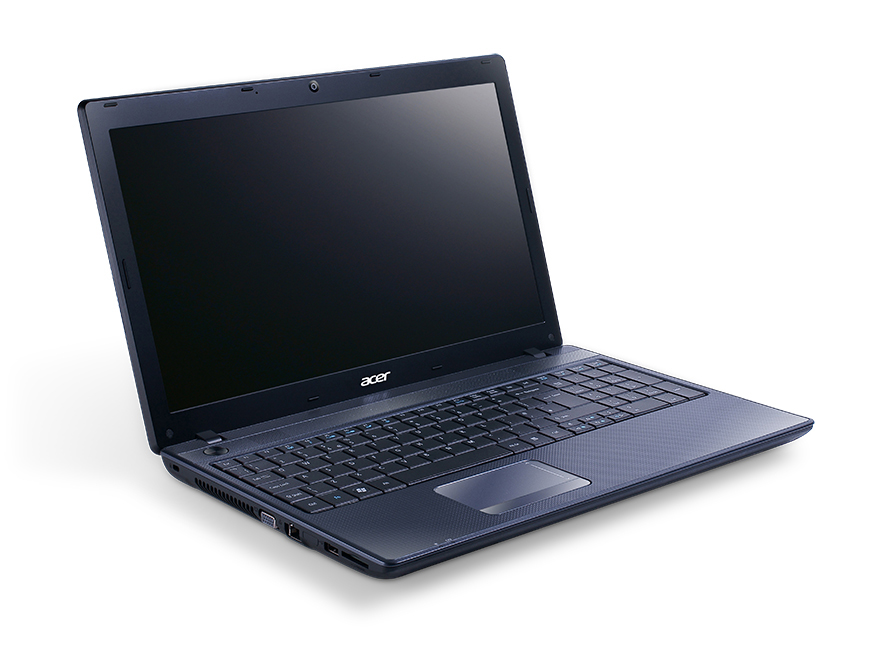

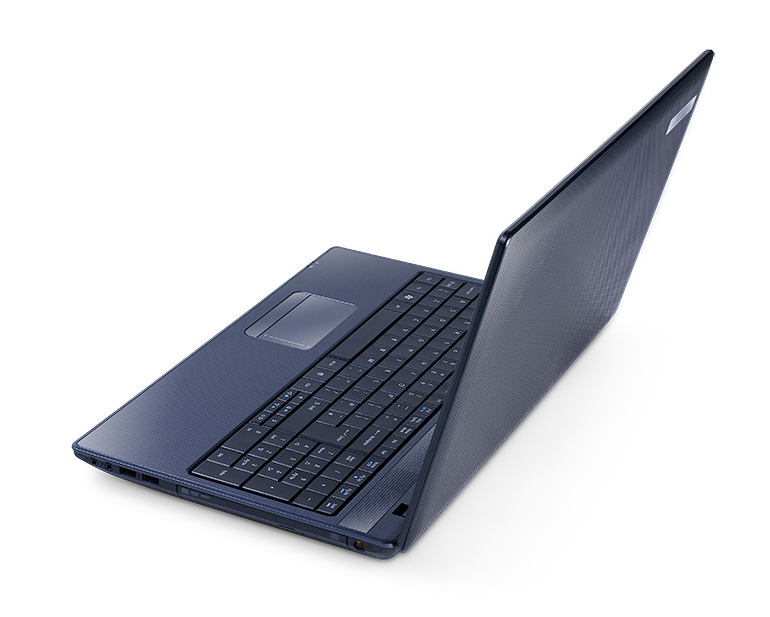

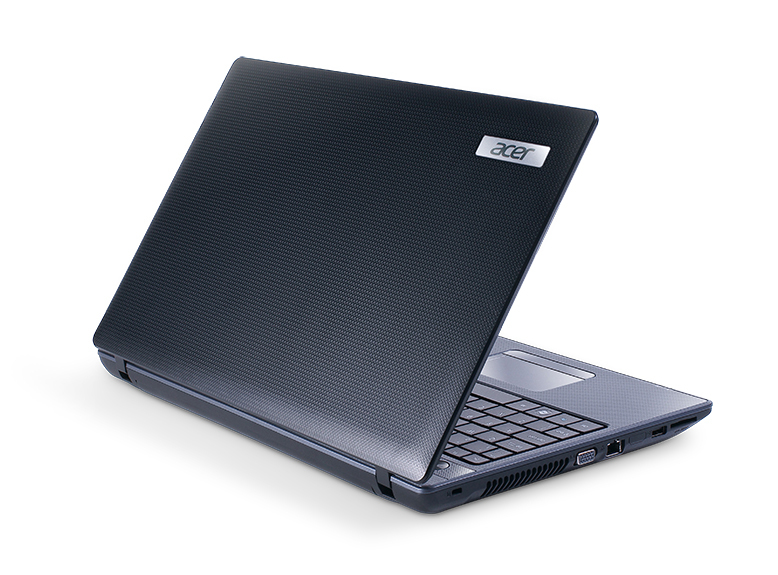

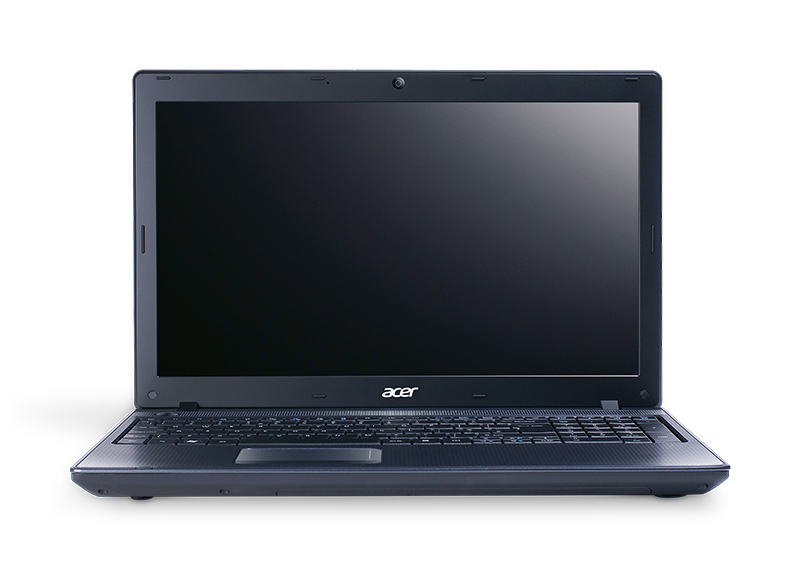

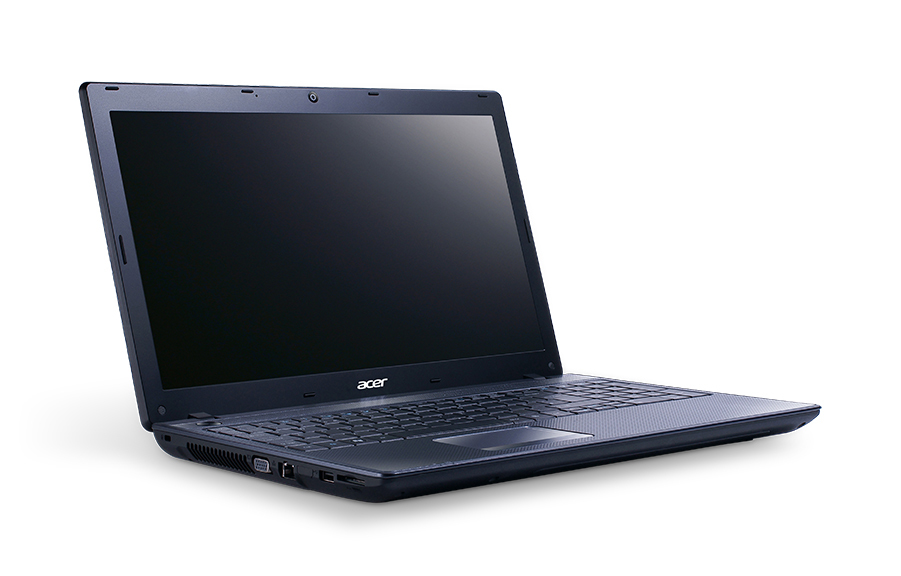

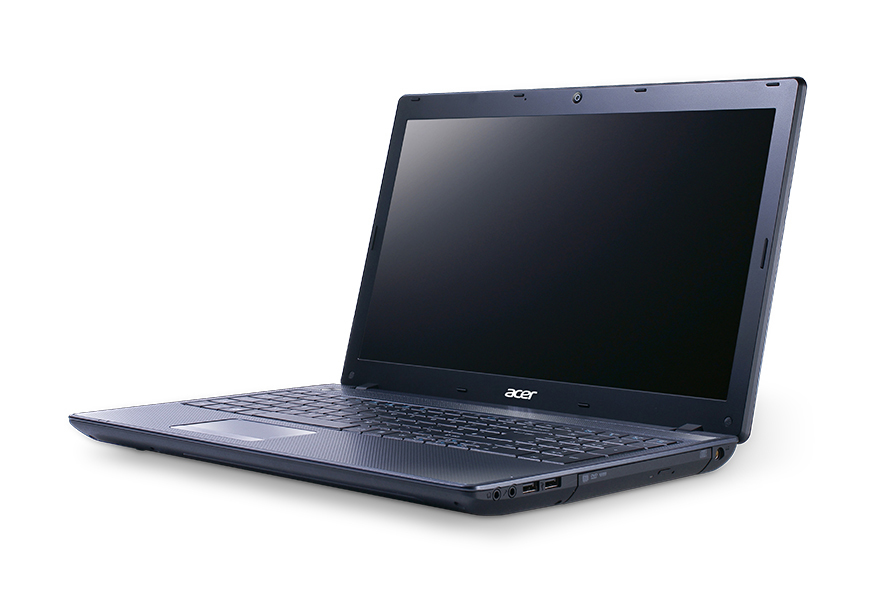

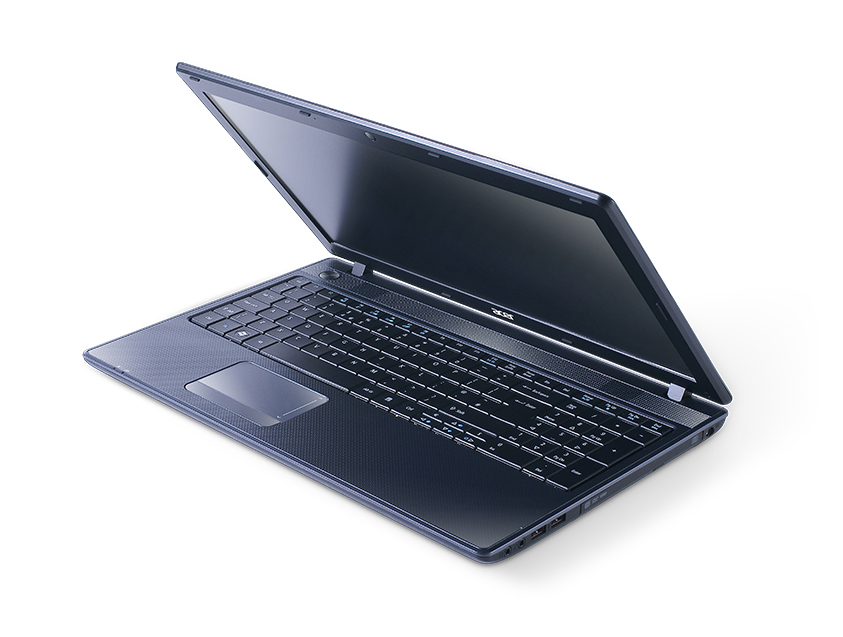

TravelMate 5744Z-P624G50Mnkk Intel® Pentium® P6200 Laptop
39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Linux Black
Model 5744Z-P624G50MnkkPart no. NX.V5NEU.002
157 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Pentium®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Pentium®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- 5744Z-P624G50Mnkk
- Part number
- NX.V5NEU.002
- Also known as
- Acer TravelMate 5744Z-P624G50Mnkk Intel® Pentium® P6200 Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Linux Black
Specifications
157 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | P6200 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.13 GHz |
| System bus rate | 2.5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium P6000 Series for Mobile |
| Processor codename | Arrandale |
| Bus type | DMI |
| FSB Parity | No |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 1 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 16 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| Number of SSDs installed | 0 |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Graphics card family | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 667 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1.3 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | No |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DVI port | No |
| Mini DisplayPort/Thunderbolt combo port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| Mini VGA ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Alienware graphics amplifier port | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Serial ports quantity | 0 |
| USB Type-C DisplayPort Alternate Mode | No |
| Number of Thunderbolt 3 ports with PowerShare support | 0 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 50176 |
| Processor package size | 37.5x37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 382 mm |
| Depth | 253 mm |
| Height | 33.8 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| 3D | No |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Number of products included | 1 pc(s) |
| Supplied AC adapter type | AC |
