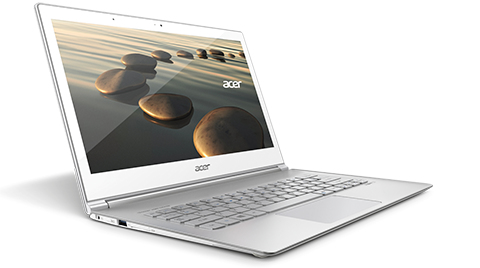

Aspire 392-6803 Intel® Core™ i5 i5-4200U Laptop
33.8 cm (13.3") Touchscreen Full HD 4 GB DDR3-SDRAM 128 GB SSD Windows 8 Pro White QWERTY
Model 392-6803Part no. NX.MG4AA.006EAN 887899322341
167 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- 392-6803
- Part number
- NX.MG4AA.006
- EAN / UPC
- 887899322341, 8878993223414
- Also known as
- Acer Aspire 392-6803 Intel® Core™ i5 i5-4200U Laptop 33.8 cm (13.3") Touchscreen Full HD 4 GB DDR3-SDRAM 128 GB SSD Windows 8 Pro White QWERTY
Specifications
167 specifications in 21 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | White |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.6 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1168 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-4200 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x4, 2x4 |
| PCI Express slots version | 2.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of HDDs installed | 0 |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4400 |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12 |
| On-board graphics card ID | 0xA16 |
Audio
| Specification | Value |
|---|---|
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Swivel webcam | No |
| Rear camera | No |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Near Field Communication (NFC) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| Mini DisplayPort/Thunderbolt combo port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| LAN/VGA combo port | No |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 0 |
| Serial ports quantity | 0 |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
| Orientation sensor | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
| Keyboard layout | QWERTY |
| Built-in touchpad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology | Yes |
| Intel Smart Connect Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 75459 |
| Processor code | SR170 |
| Processor package size | 40 x 24 x 1.5 mm |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 6280 mAh |
| Battery life (max) | 8 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Fingerprint reader | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
| Width | 322.6 mm |
| Depth | 223.5 mm |
| Height | 12.9 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Intel segment tagging | Enterprise, Small Business |
