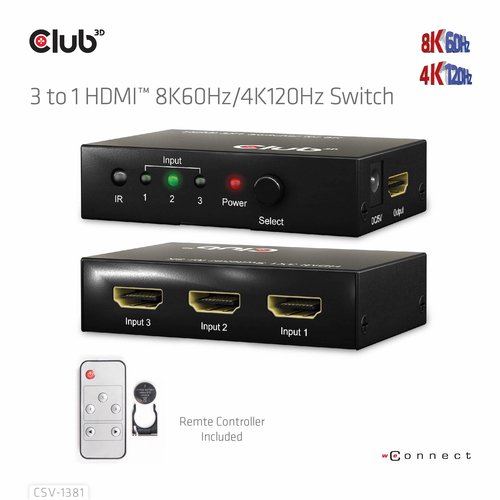

3 to 1 HDMI 8K60Hz Switch
Model 3 to 1 HDMI 8K60Hz SwitchPart no. CSV-1381EAN 841615102952
41 specifications
- Weight105 g
- ColourBlack
- Number of computers controlled3
- HD type8K Ultra HD
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 105 g
- Colour
- Black
- Number of computers controlled
- 3
- HD type
- 8K Ultra HD
- Built-in display
- No
- Power source
- DC
- Brand
- CLUB3D
- Category
- KVM Switch
- Model
- 3 to 1 HDMI 8K60Hz Switch
- Part number
- CSV-1381
- EAN / UPC
- 841615102952, 8719214472719
- Also known as
- CLUB3D 3 to 1 HDMI™ 8K60Hz/4K120Hz Switch
Specifications
41 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 3 |
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.1a |
| DVI-D ports quantity | 0 |
| Console ports | HDMI |
Performance
| Specification | Value |
|---|---|
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Video bandwidth | 120 Hz |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| HDCP version | 1.4/2.2 |
| Number of displays supported | 3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Wired remote switch | No |
| Cable length | 2 m |
| Display switch button | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 51.2 mm |
| Height | 20 mm |
| Weight | 105 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 55 mm |
| Package weight | 67 g |
| Package type | Box |
| Paper/cardboard packaging weight | 67 g |
| Plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Remote control included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
