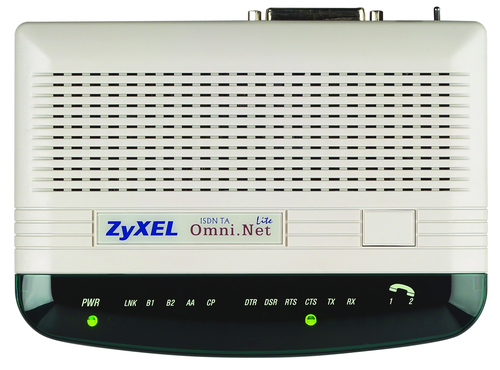

Omni.Net Lite ISDN TA
Model Omni.Net Lite ISDN TAPart no. 190100.9007
9 specifications
- Phone lines compatibilityISDN
- Modem speed230.4 Kbit/s
- Minimum system requirementsPPP/MLPPP 1 x RS232
- Operating relative humidity (H-H)5 - 90%
- Dimensions (WxDxH)129 x 180 x 35 mm
Overview
- Phone lines compatibility
- ISDN
- Modem speed
- 230.4 Kbit/s
- Minimum system requirements
- PPP/MLPPP 1 x RS232
- Operating relative humidity (H-H)
- 5 - 90%
- Dimensions (WxDxH)
- 129 x 180 x 35 mm
- Brand
- Zyxel
- Category
- ISDN Access Device
- Model
- Omni.Net Lite ISDN TA
- Part number
- 190100.9007
- Also known as
- Zyxel Omni.Net Lite ISDN TA ISDN access device
Specifications
9 specifications in 6 groups
Technical details
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 95 Microsoft Windows 98 Microsoft Windows NT Microsoft Windows ME Microsoft Windows 2000 Microsoft Windows XP |
| Phone lines compatibility | ISDN |
Ports & interfaces
| Specification | Value |
|---|---|

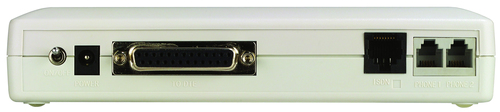

| I/O ports | 1 x RJ-45 2 x RJ-11 1 x DB-25, Female |
Modem
| Specification | Value |
|---|---|
| Modem speed | 230.4 Kbit/s |
| Supported protocols | Async-to-Sync PPP Multilink PPP V.120 X.75 |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | PPP/MLPPP 1 x RS232 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 129 x 180 x 35 mm |
